Large angle grinders

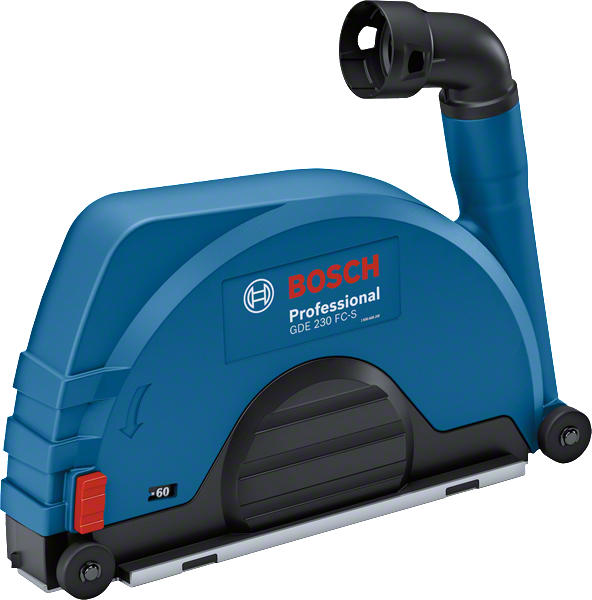

Bosch GDE 230 FC-S cutting dust extraction guard.

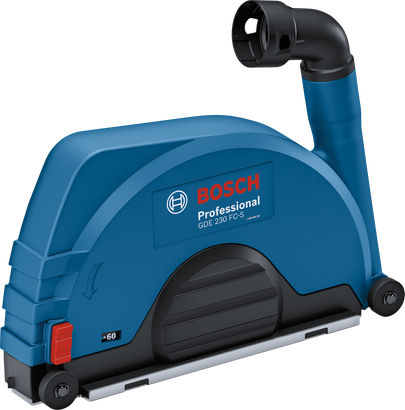

Bosch GDE 230 FC-S cutting dust extraction guard.
GDE 230 FC-S
GDE 230 FC-S
GDE 230 FC-S

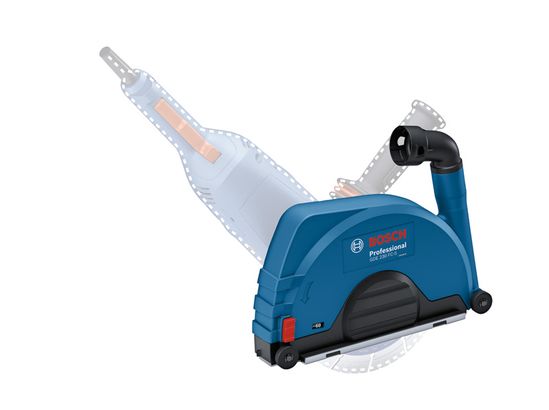

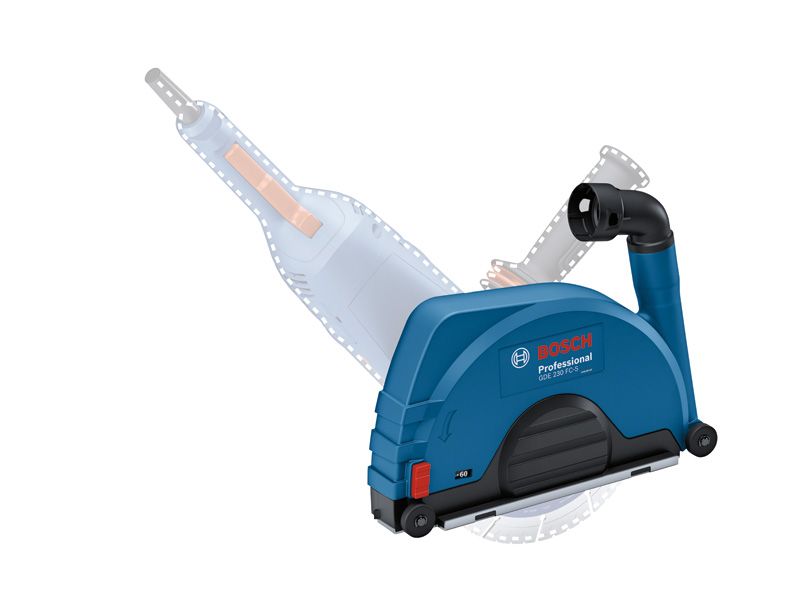

Bosch GDE 230 FC-S system accessory for angle grinders.

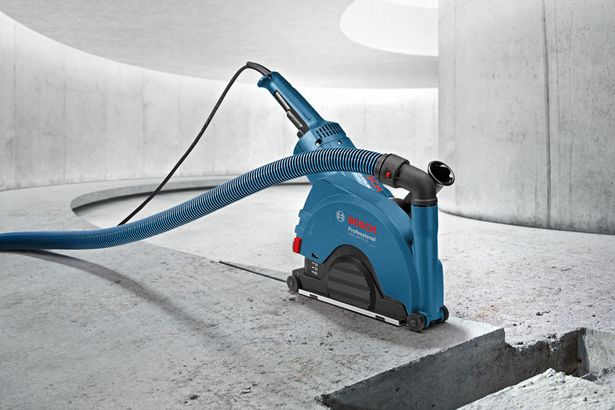

Wall chaser with dust extraction hose cutting a straight groove in a concrete floor.

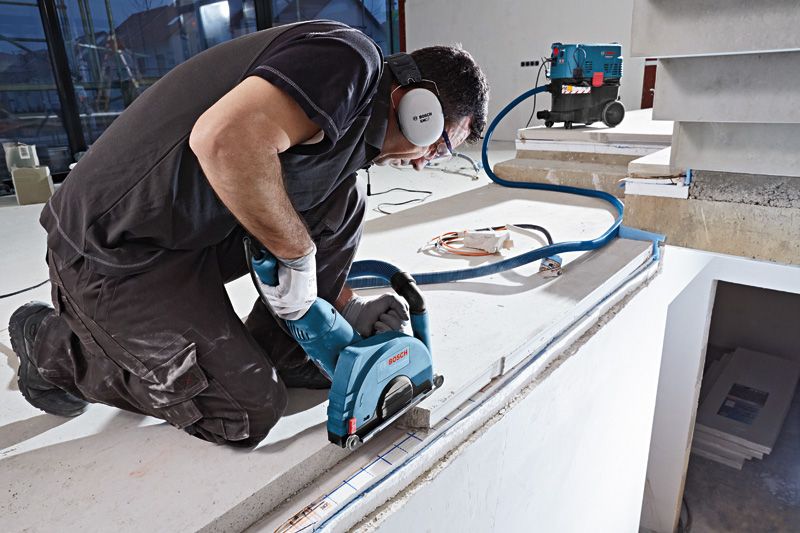

A person wearing safety equipment uses a wall chaser on concrete near a vacuum system.

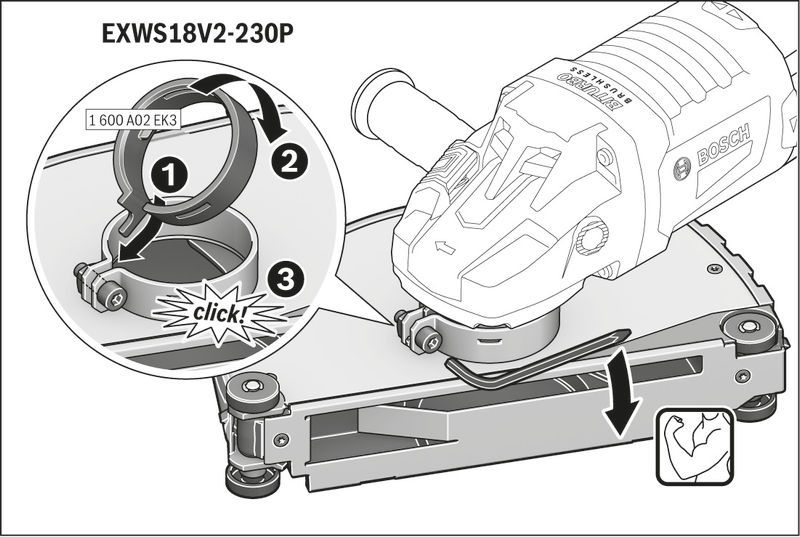

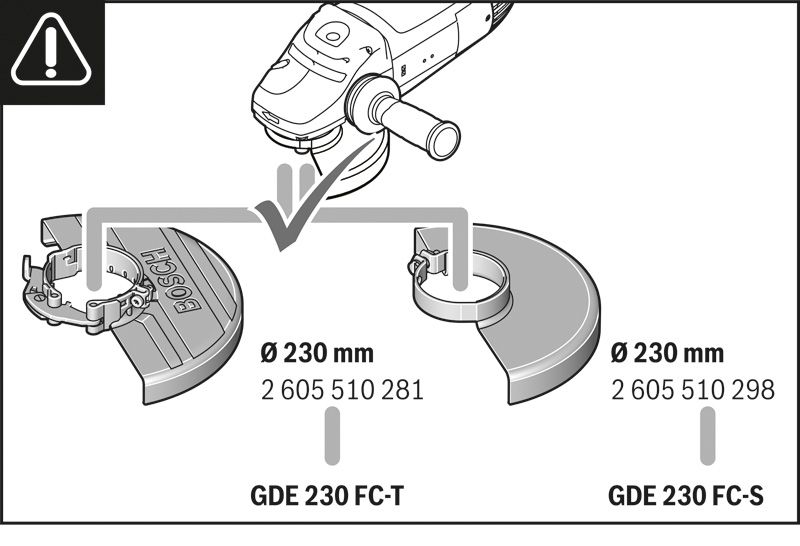

Dust extraction guard assembly

GDE 230 FC-S Professional

System Accessories

Full cover dust guard for 230-mm angle grinders

  • Virtually dust-free work thanks to full cover shape and enhanced dust extraction
  • Convenient 360°-connection between angle grinder dust extractor enables easy handling
  • Adjustable cutting depths and integrated wheels support precise work

Functions & key features

Dust extraction
Click & Clean system
Disc diameter 230mm
Full cover
max 60 mm cutting depth
Show variant Buy now

GDE 230 FC-S Professional 1 600 A00 3DL

GDE 230 FC-S Professional

Your Selection

Bosch GDE 230 FC-S cutting dust extraction guard.

Order number: 1 600 A00 3DL

Buy now
Our service promise for professionals.
Register now!

Technical data

The most important data

Suitable for cutting disc diameter
230 mm
Maximum cutting depth
~ 60 mm
Compatible with
GWS20, GWS2000-23JH, GWS20-230/H/JH, GWS21-230/H/JH/HV/JHV, GWS22, GWS22-230/H/JH, GWS230/H/JH, GWS2300H, GWS24, GWS24-230/B/H/BV/BX/JB/JH/JBV/JBX/H+ZB/PROFI
Weight*
2.1 kg

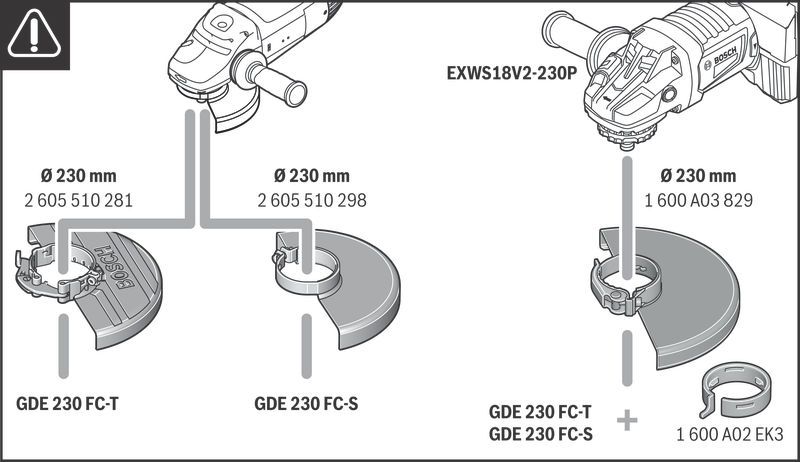

Compatibility type of protection guard
Protective guard with locking screw

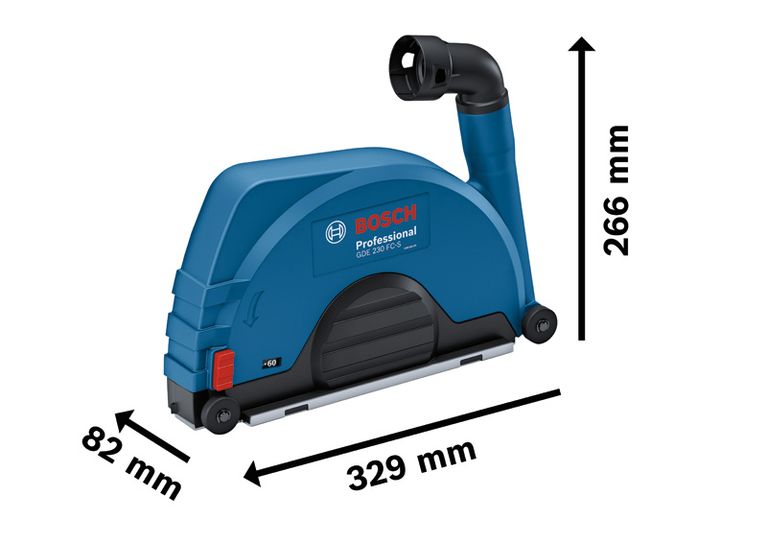

Packaging dimensions (width x length x height)
238 x 397 x 103 mm
Bosch GDE 230 FC-S system accessory for angle grinders.

* You can find more information about the deviations in the following link: Technical features of products

GDE 230 FC-S Professional: Further information

Product Highlights

The GDE 230 FC-S Professional is Bosch's full cover dust guard for angle grinders with standard protective guards and 230-mm disc diameters. Its full cover shape provides enhanced dust extraction for virtually dust-free work. A convenient 360°-connection between the angle grinder and dust extractor enables easy handling. Adjustable cutting depths and integrated wheels support precise work. The dust guard is compatible with the Bosch Click & Clean System as well as a multitude of angle grinders with standard protective guards.

videos and images may depict overseas models. For local executions please see scope of supply
