18V system

GCS 18V-230 Professional

Cordless Cut and Grind

Order number 0.601.3B0.000

  • Powerful and efficient thanks to C1000 brushless motor
  • Fast, easy wheel change with accessible, patented spindle lock lever
  • Helps keep you safe with brake function that rapidly stops rotation of the wheel when trigger is released
  • Helps protect your battery from dust, debris and moisture thanks to sealed battery compartment
  • Easy and fast removal of battery with spring-assisted battery removal system
View more

GCS 18V-230 Professional 0 601 3B0 000

GCS 18V-230 Professional

Your Selection

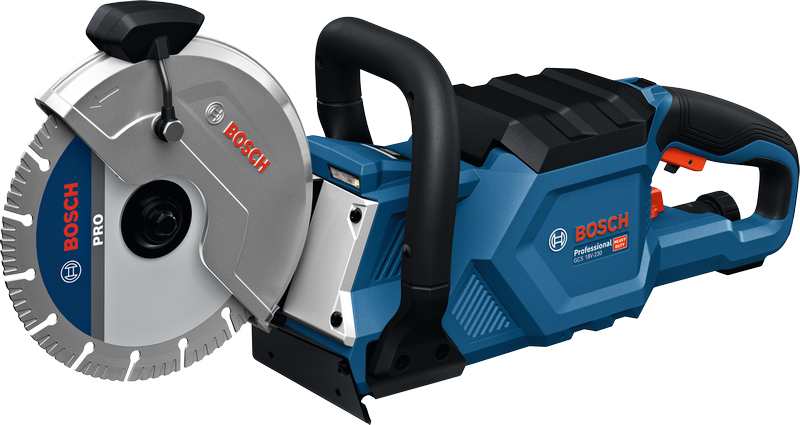

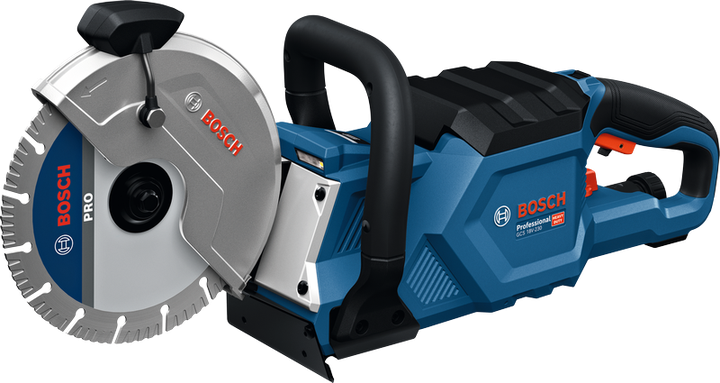

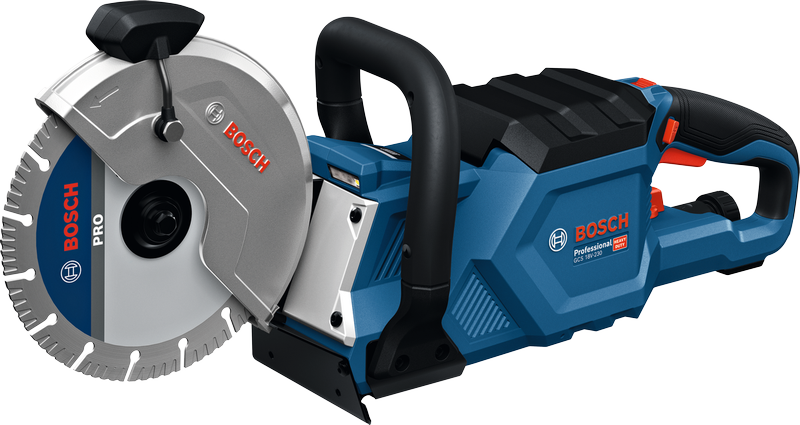

Bosch GCS 18V-230 cordless cut and grind saw.

Order number: 0 601 3B0 000

Find a local dealer

Included in this variant

  • Quick connector
    Order number: 1 605 A00 2RH
Professional 18V System.
Discover more!

Technical data

The most important data

No-load speed*
6,200 m/min
Max. cutting depth
83 mm
Weight excl. battery*
5.35 kg
Battery voltage
18.0 V
Packaging dimensions (width x length x height)
260 x 640 x 305 mm

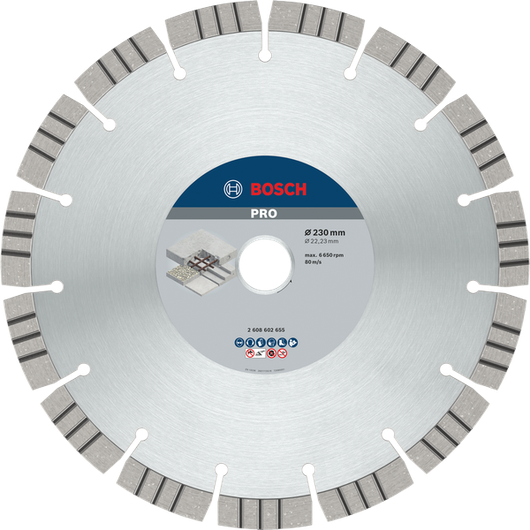

Disc diameter
230 mm
Disc bore
22.2 mm
Show more

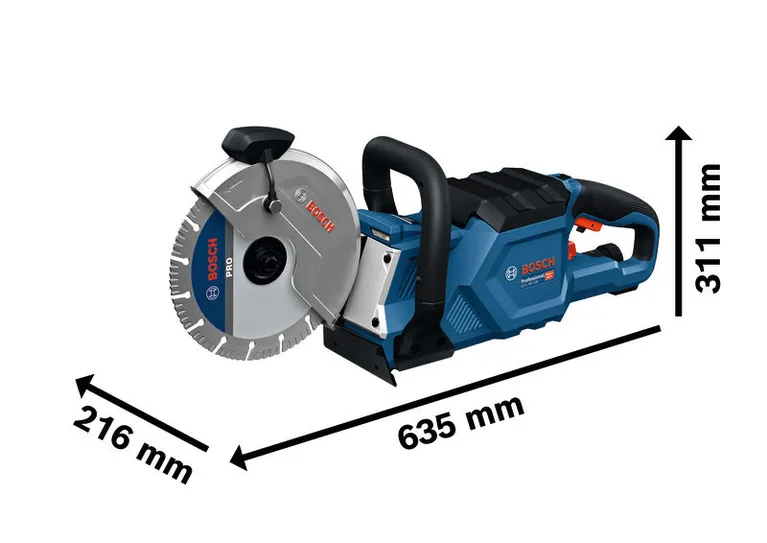

Bosch GCS 18V-230 cordless cut and grind tool.

* You can find more information about the deviations in the following link: Technical features of products

GCS 18V-230 Professional: Further information

Product Highlights

The Bosch GCS 18V-230 cutoff saw is the go-to tool for fast and efficient cutting performance in metal or concrete thanks to its powerful C1000 brushless motor. With its accessible, patented spindle lock lever, you can easily change the wheel in record time. This cutoff saw’s convenient brake function helps keep you protected by rapidly stopping the rotation of the cutting wheel as soon as the trigger is released. And the sealed battery compartment helps protect your battery from dust, debris and moisture. The GCS 18V-230 cutoff saw also features a spring-assisted battery removal system that makes for easy removal of larger 18 V batteries when batteries need to be recharged, or wheels need to be changed

Equipment & Application

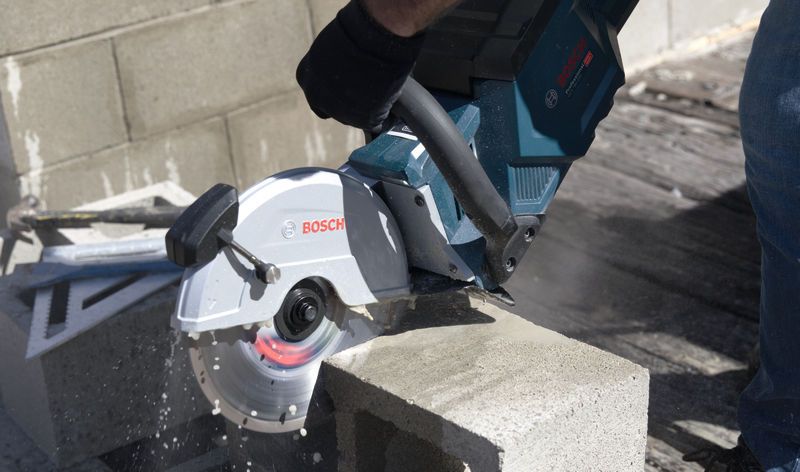

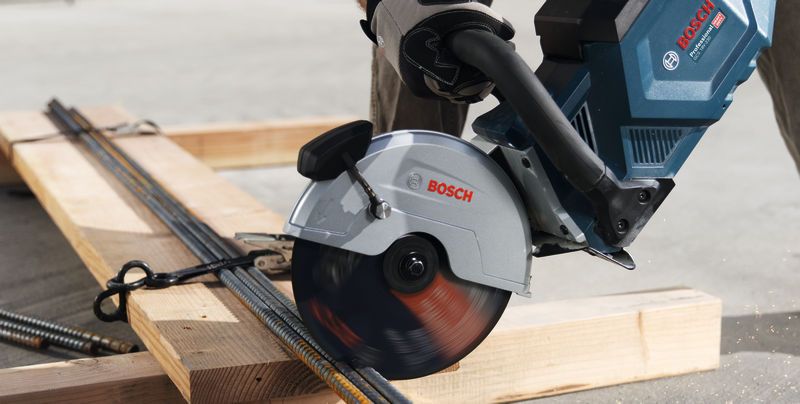

The Bosch GCS 18V-230 cutoff saw is for large commercial, concrete, and demolition contractors, as well as tradespeople working with masonry or stone façades. It is for cutting metal including rebar, pipe, metal studs and metal deck. It also wet cuts concrete in applications like scoring concrete for demolition, cutting cinder block, landscaping bricks and pavers

Additional Information

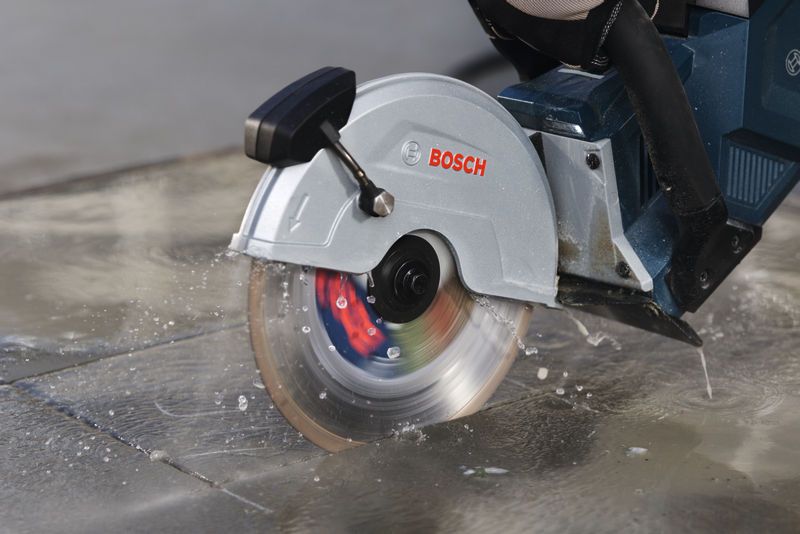

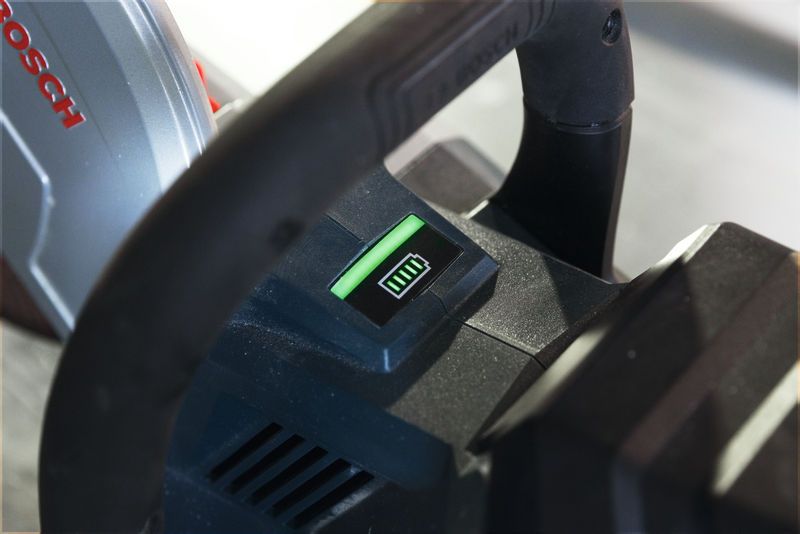

The Bosch GCS 18V-230 cutting saw features a wrap-around handle for optimum tool balance, 6 guard adjustment positions, an ergonomic on/off trigger with lockout lever, a quick-connect hose adapter connection and a water shutoff valve to control the water supply for wet cutting in concrete. It also has an LED light for worksite illumination and a battery status indicator

videos and images may depict overseas models. For local executions please see scope of supply
