Benchtop tools
![GCO 14-24 J]( "GCO 14-24 J")
![GCO 14-24 J]( "GCO 14-24 J")

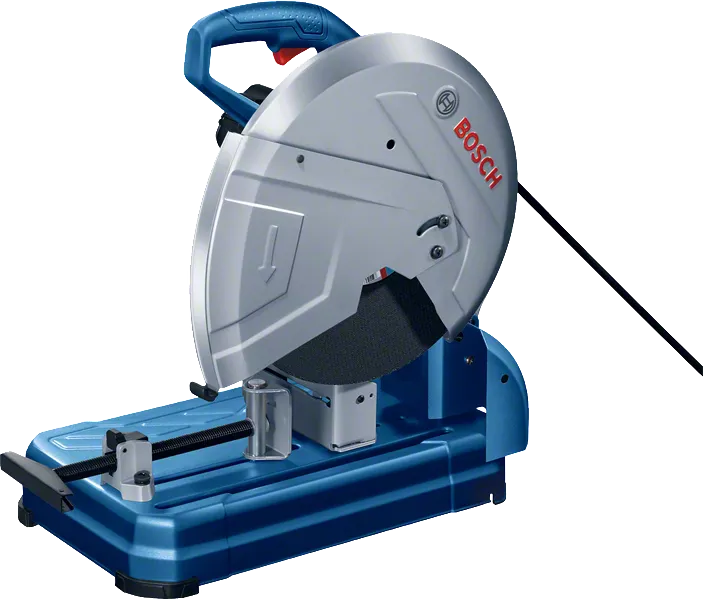

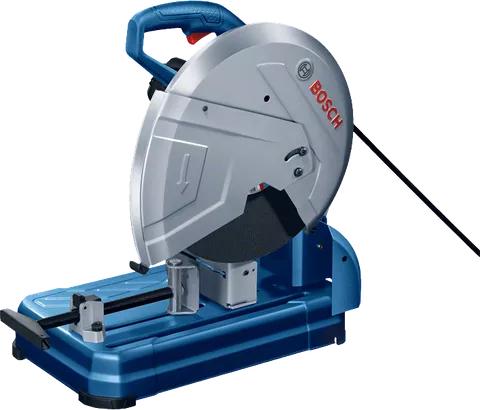

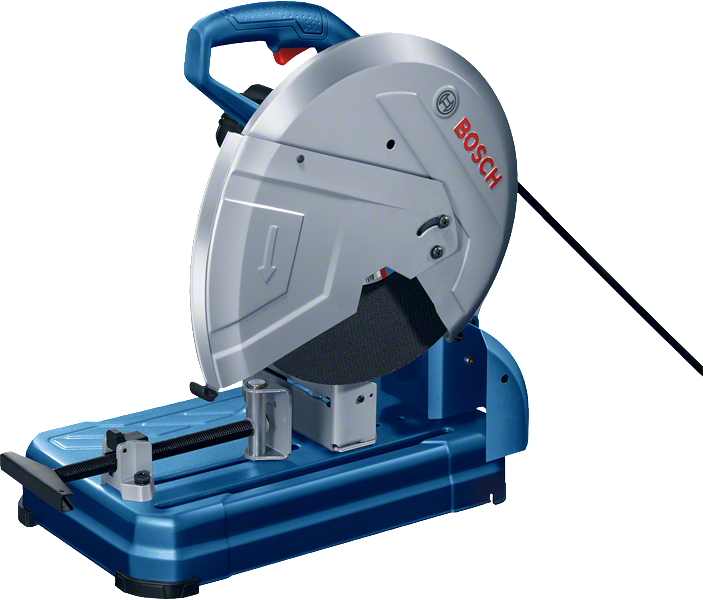

GCO 14-24 J Professional
Metal Cut-off Saw
Redefining power in 355-mm cut-off saws for the toughest applications
- Powerful and robust with high overload capacity even for demanding jobs
- Patented clamping system ensures increased disc utilisation by 20%
- Large base with rubber feet ensures stability on slightly uneven surfaces
Functions & key features
with Cutting disc
0 601 B37 240
GCO 14-24 J Professional
Your Selection
with Cutting disc
Order number: 0 601 B37 240
Buy nowIncluded in this variant
-
Carton box
-
Cutting disc
Technical data
The most important data |
|
|---|---|
| Cutting capacity at rectangle 0º | 100 x 196 mm |
| Cutting capacity at square 0º | 119 x 119 mm |
| Cutting capacity at L-profile 0º | 130 x 130 mm |
| Cutting capacity at rectangle 45º mitre | 107 x 115 mm |
| Cutting capacity at square 45º mitre | 110 x 110 mm |
| Cutting capacity at L-profile 45º mitre | 115 x 115 mm |
| Tool dimensions (width x length x height) | 256 x 520 x 400 mm |
| No-load speed* | 3,800 rpm |
| Cutting disc diameter | 355 mm |
| Cutting disc bore | 25.4 mm |
| Weight* | 18.1 kg |
| Rated input power | 2,400 W |
| Packaging dimensions (width x length x height) | 325 x 555 x 445 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 100.5 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCO 14-24 J Professional: Further information
Product Highlights
The GCO 14-24 J Professional cut-off saw delivers high power in the 355-mm segment and is ready for the toughest applications. Its powerful performance and robust design guarantee a high overload capacity even for demanding jobs. Featuring a patented clamping system, the cut-off saw ensures increased disc utilisation by 20%. A stable cutting performance is given by its large base with rubber feet that ensures stability on slightly uneven surfaces.
Equipment & Application

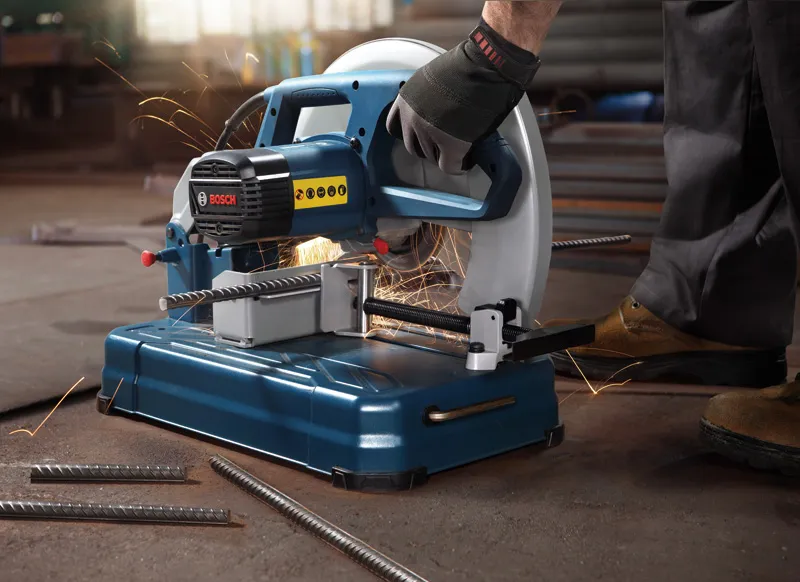

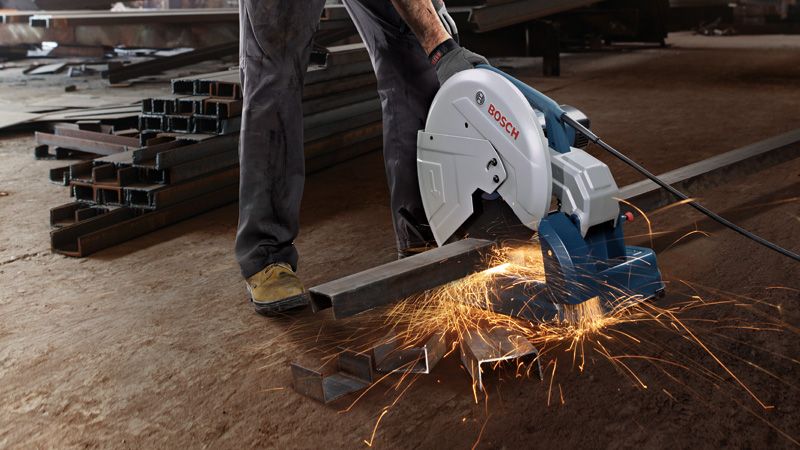

Ideal for general renovation and for exterior renovation as well as foundation construction, this cut-off saw can be used when cutting solid steel and for 45° cuts of rectangular or solid steel bars as well as for rebar cutting in solid steel.
Additional Information
The GCO 14-24 J Professional´s Soft Start function avoids sudden inrush current during tool start-up
