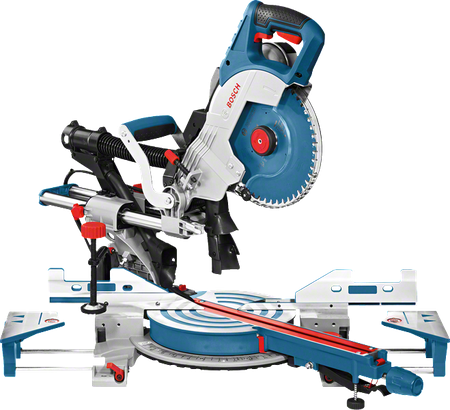

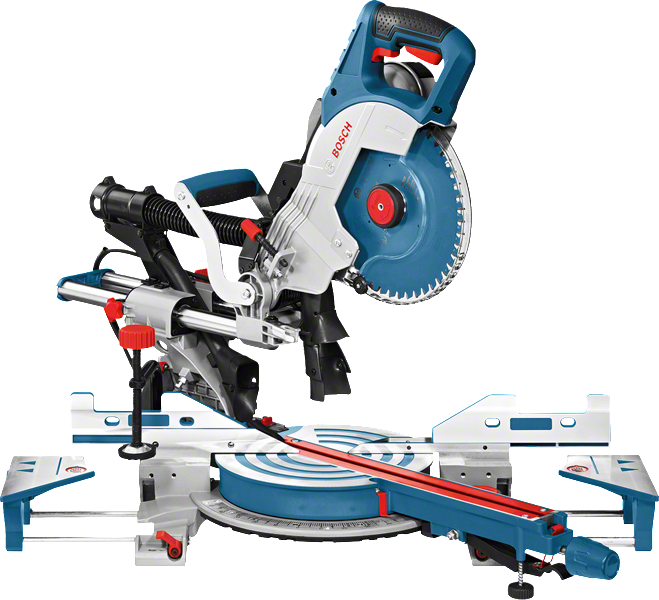

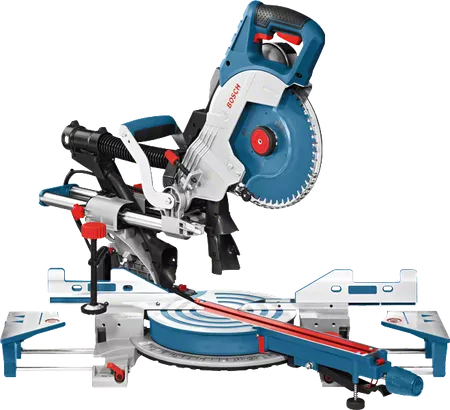

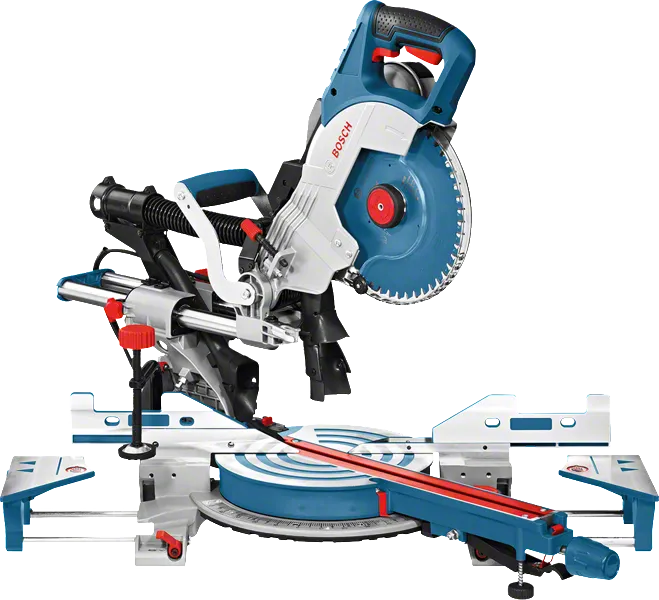

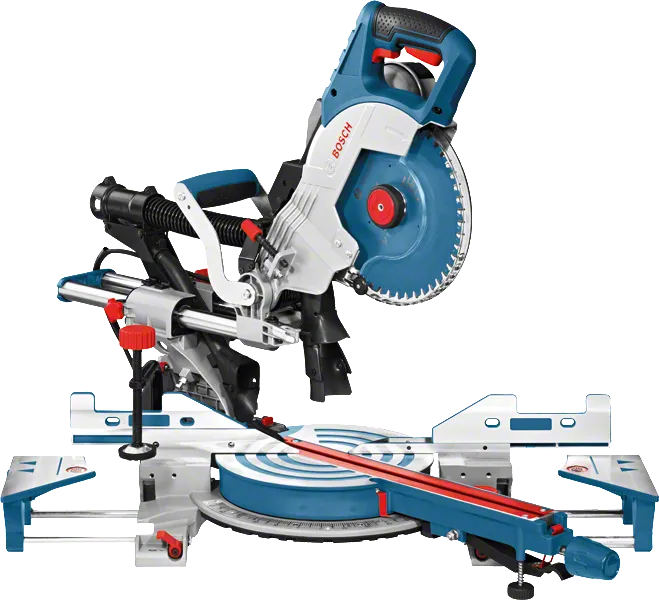

Sliding Mitre Saw
GCM 8 SDE Professional

Powerful mitre saw for various applications and materials

Print

NEW!
BITURBO BRUSHLESS. REVOLUTIONARY PERFORMANCE.
Discover more!
Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Cutting capacity, 0° 70 x 312 mm
Cutting capacity, 45° mitre 70 x 214 mm
Cutting capacity, 45° bevel 48 x 312 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R

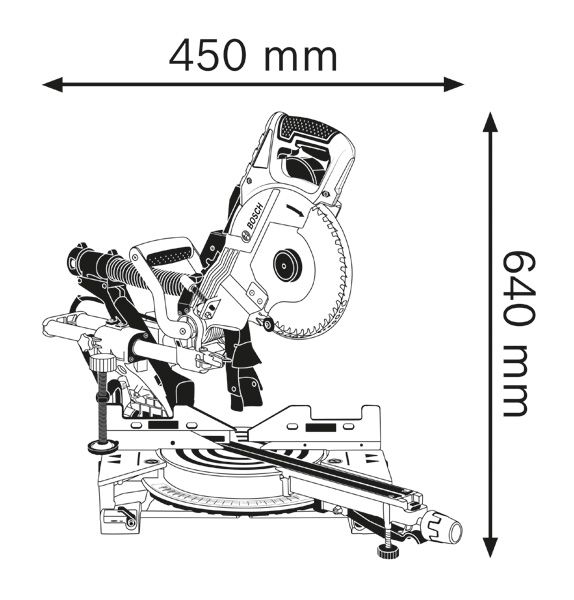

Tool dimensions (width x length x height) 910 x460 x410 mm
No-load speed 3,500 – 5,000 rpm

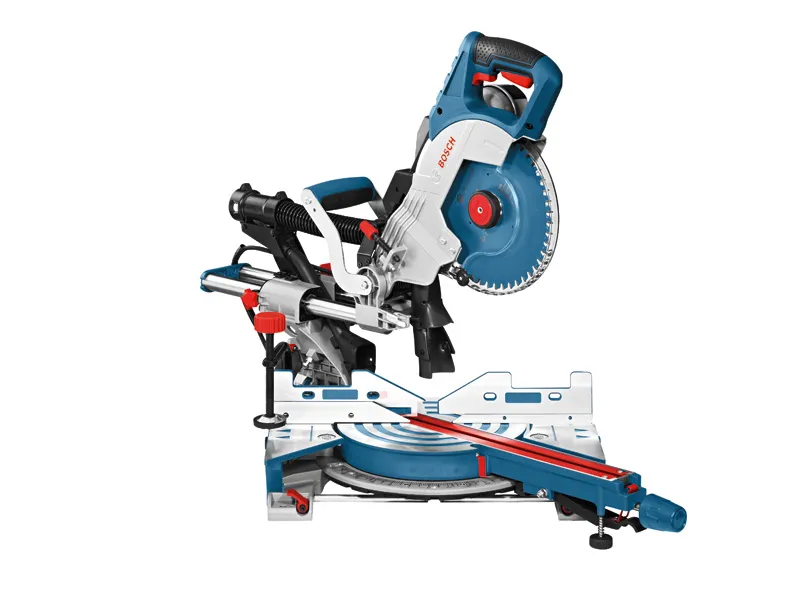

Saw blade diameter 216 mm
Saw blade bore diameter 30 mm
Weight 18.5 kg
Rated input power 1,600 W
Packaging dimensions (width x length x height) 475 x 850 x 445 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 98 dB(A)
Sound power level 108 dB(A)
Uncertainty K 3 dB
Sawing wood
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Powerful mitre saw for various applications and materials

  • Lightweight and compact, with convenient transport handle for one-handed transport and high mobility
  • Variable cutting speed ensures high versatility in various materials
  • Fast, tool-less saw blade changes ensure easy and convenient handling

Functions

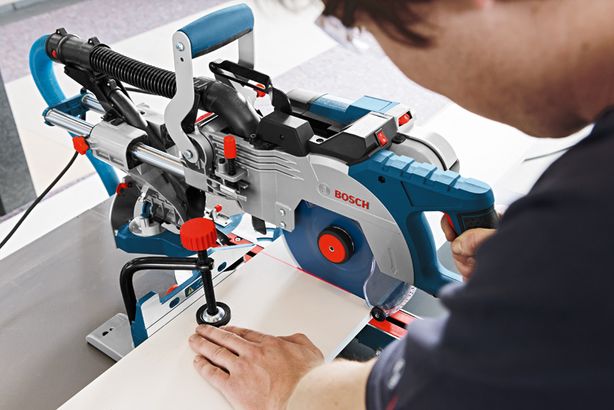

Easy set up thanks to laser projection of cutting line
Easy bevel angle adjustment due to preset angle stops
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
 No additional tools are required for configuring the tool, allowing for user-friendly operation

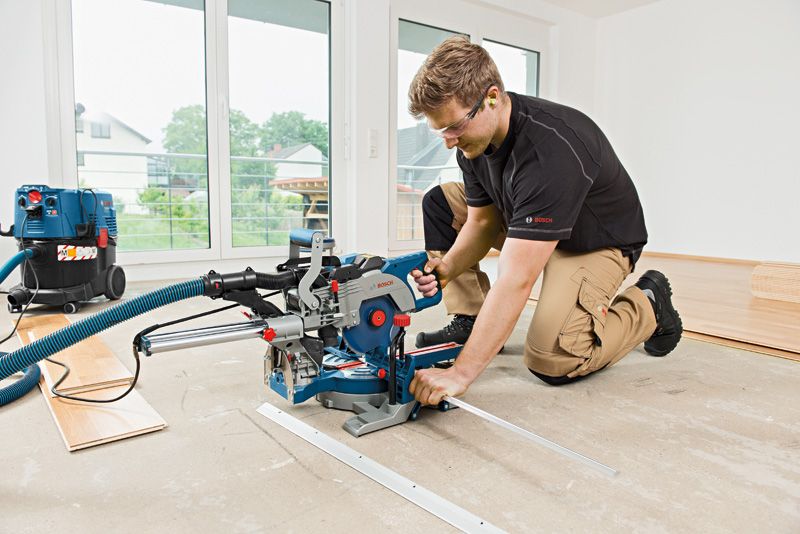

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Icon

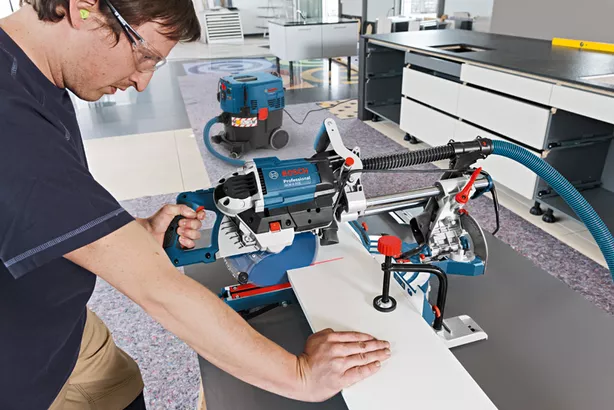

Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories

Scope of supply

GCM 8 SDE

Order number: 0 601 B19 240
