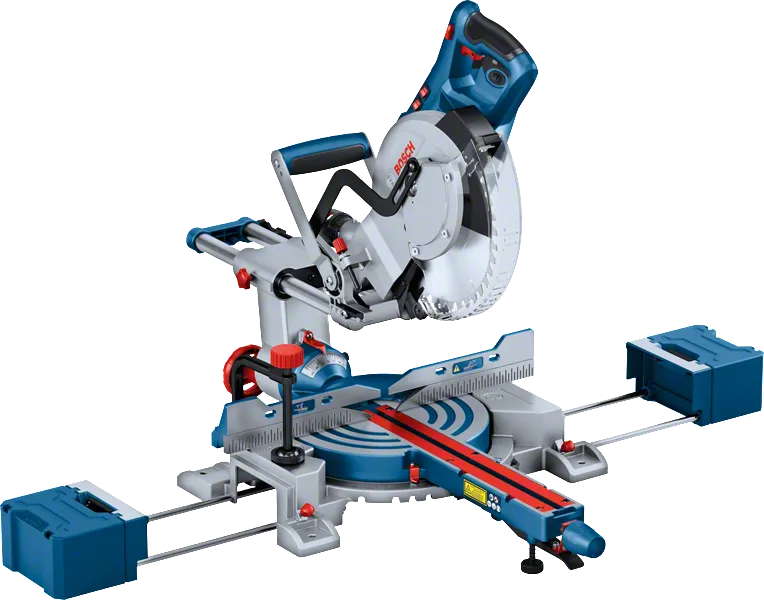

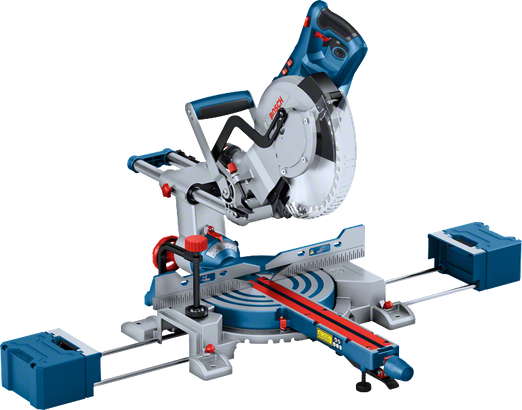

![Bosch GCM 305-254 D mitre saw with sliding rail.]( "GCM 305-254 D")

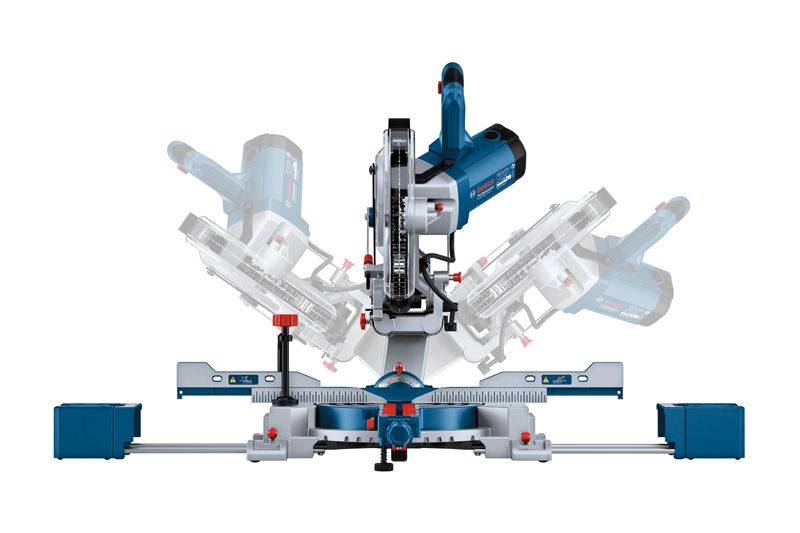

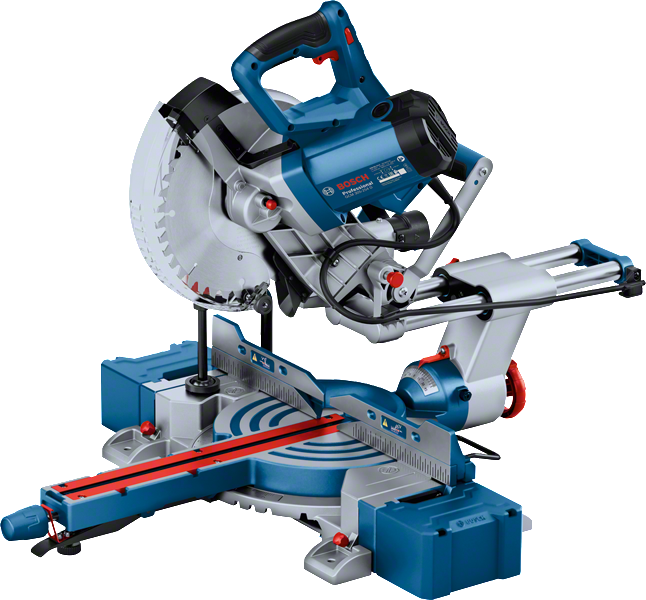

![Bosch GCM 305-254 D mitre saw with adjustable bevel angle.]( "GCM 305-254 D")

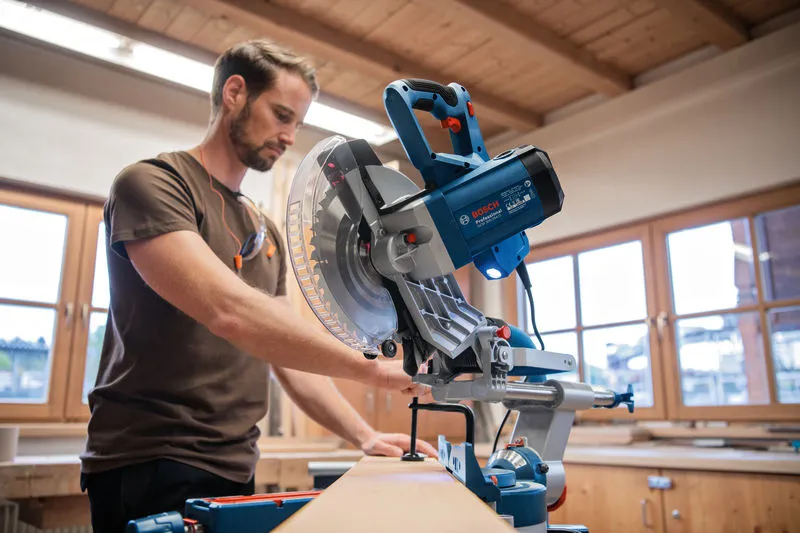

![A person prepares to cut wood with a mitre saw in a workshop.]( "GCM 305-254 D")

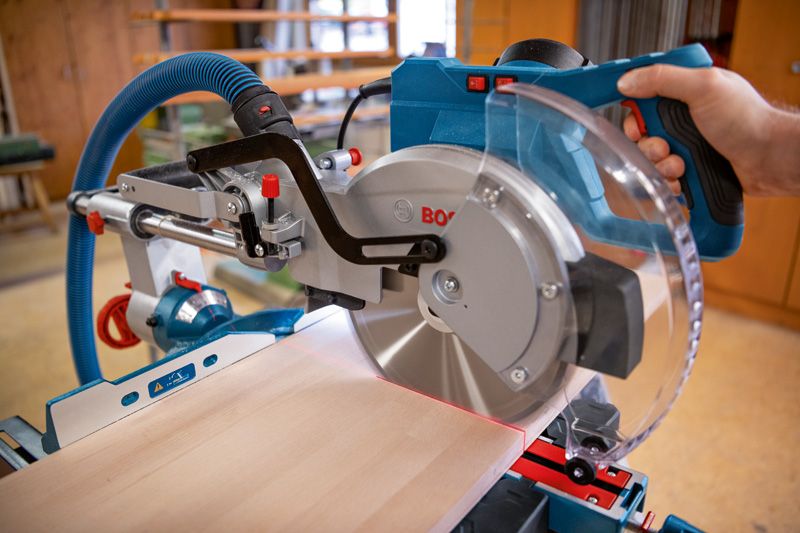

![Person guiding a mitre saw to cut wood, dust extraction hose attached.]( "GCM 305-254 D")

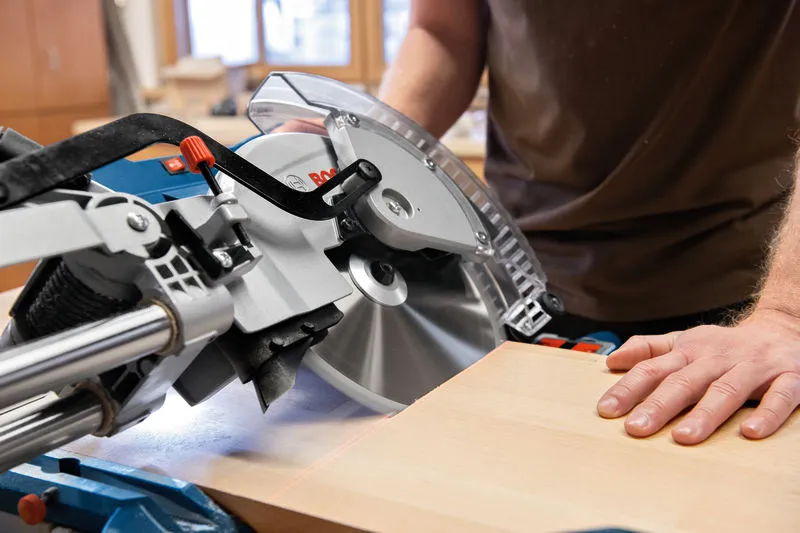

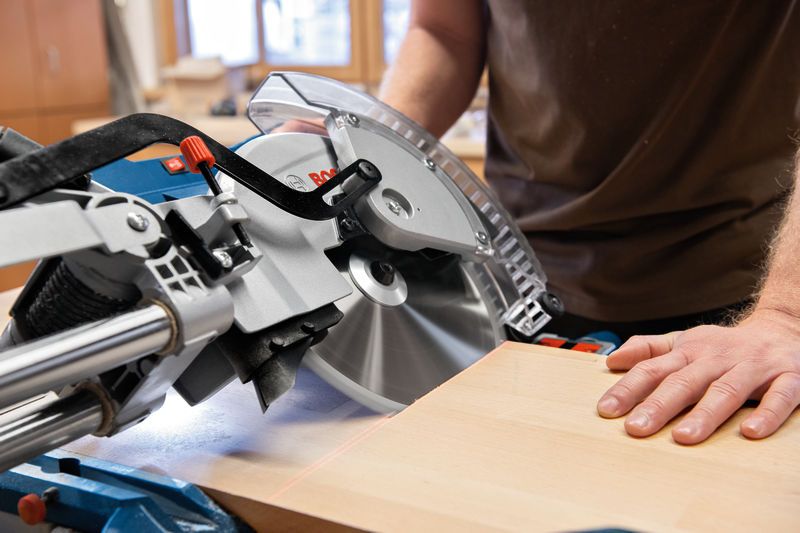

![A person operates a mitre saw to cut wood in a workshop.]( "GCM 305-254 D")

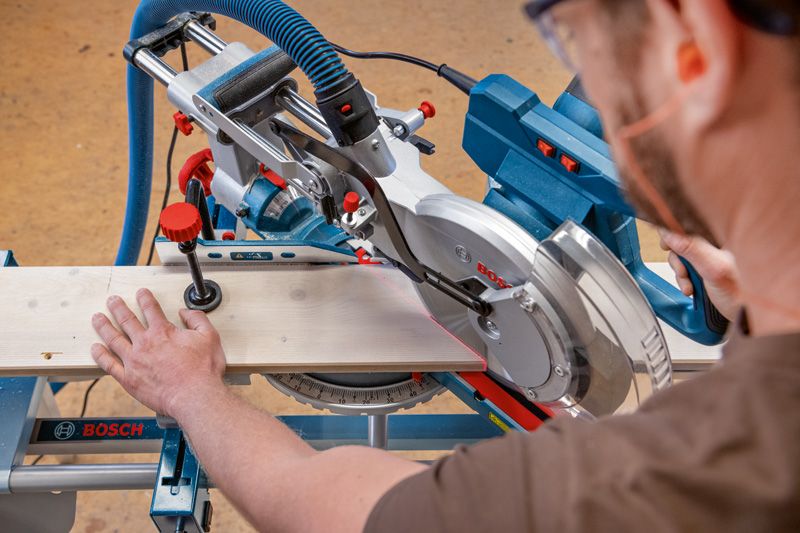

![A person wearing safety equipment cuts wood with a mitre saw on a workbench.]( "GCM 305-254 D")

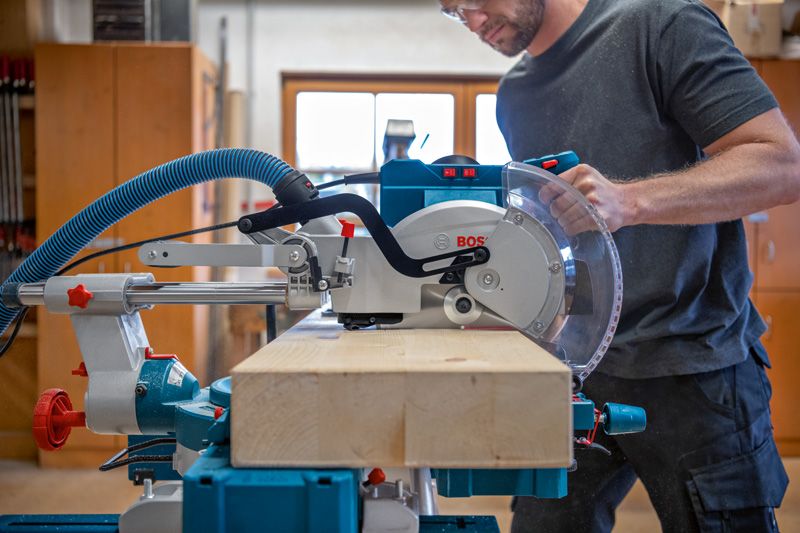

![A person wearing safety equipment operates a mitre saw to cut a wooden beam.]( "GCM 305-254 D")

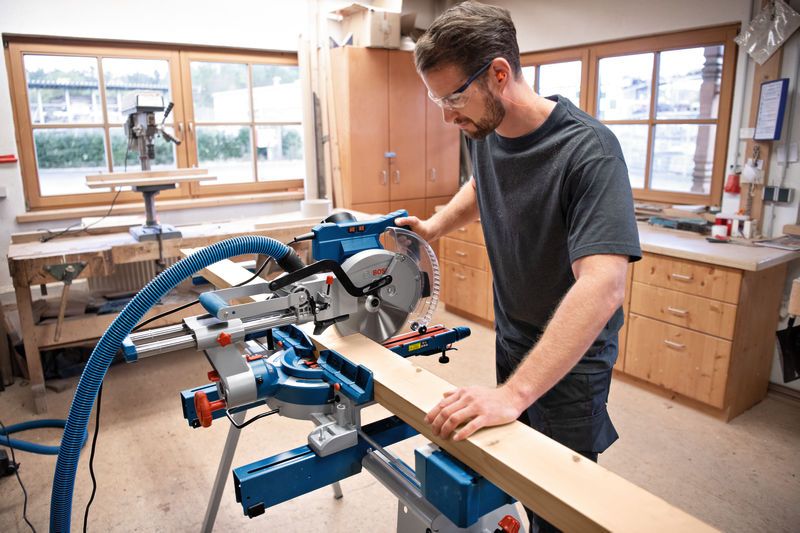

![A person wearing safety equipment operates a mitre saw to cut a wooden plank.]( "GCM 305-254 D")

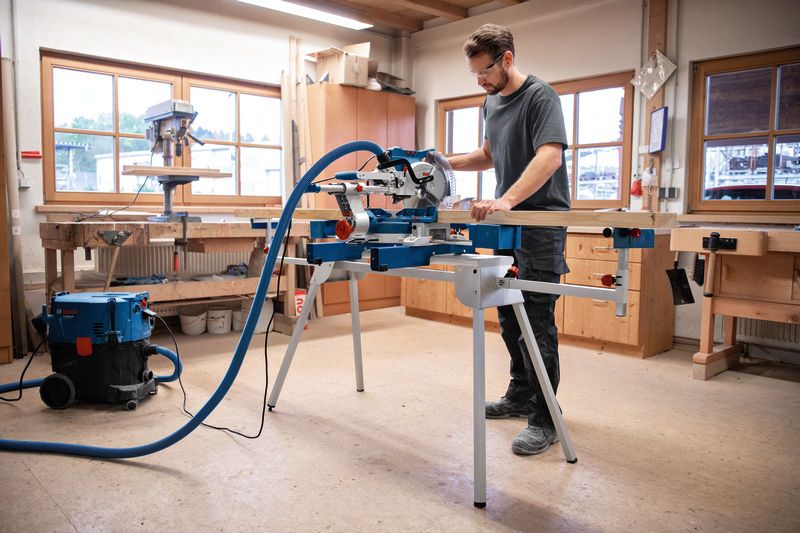

![A person wearing safety equipment operates a mitre saw on a wooden board.]( "GCM 305-254 D")
New

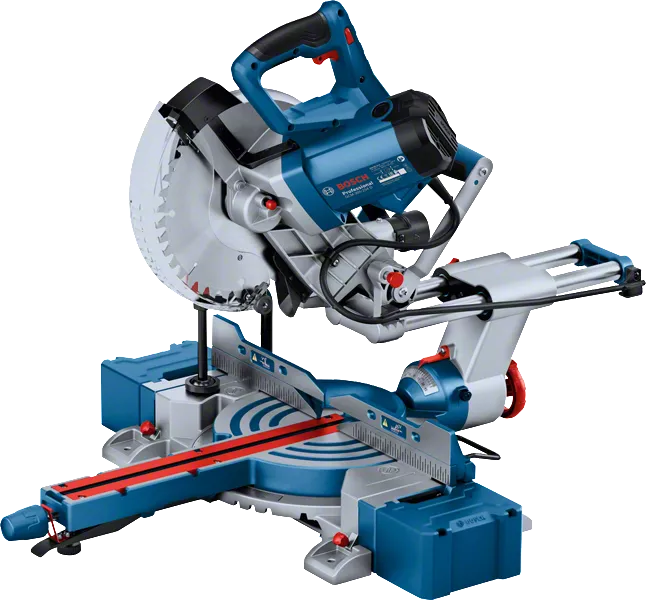

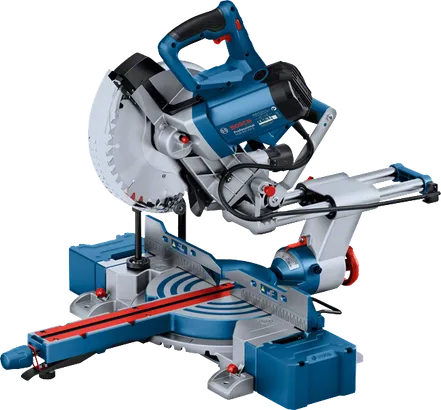

GCM 305-254 D Professional
Mitre Saw
Cuts up to 90 x 305 mm: the mobile, lightweight, and ergonomic miter saw
- Strong cutting performance for toughest cuts
- Easy controlling of long materials during cutting by detachable workpiece supports and long table extensions
- Dual bevel function for convenient cutting
Functions & key features
GCM 305-254 D Professional
0 601 B49 140
GCM 305-254 D Professional
Your Selection
New
Order number: 0 601 B49 140
Buy nowIncluded in this variant
-
2 x Workpiece support (flexibly pluggable)Order number: 1 609 B07 675
-
1 x circular saw blade, Standard for Wood, 254 x 30 x 2 mm, 40Order number: 2 608 640 435
-
ClampOrder number: 1 609 B06 932
-
Dust bagOrder number: 2 608 000 841
Technical data
The most important data
Cutting capacity, 0°
90 x 305 mm
Cutting capacity, 45° mitre
90 x 215 mm
Cutting capacity, 45° bevel
55 x 305 mm
Mitre setting
48 ° L / 48 ° R
Bevel setting
47 ° L / 47 ° R

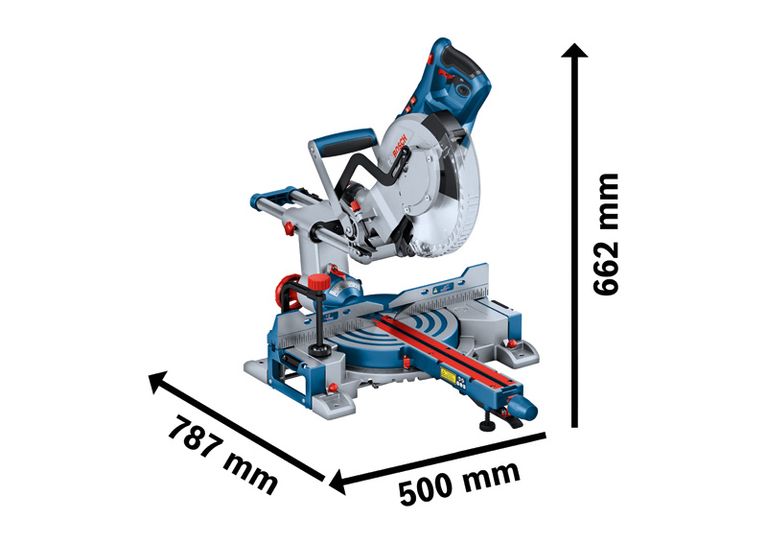

Tool dimensions (width x length x height)
500 x787 x662 mm
No-load speed*
4,500 rpm
Saw blade diameter
254 mm
Saw blade bore diameter
30 mm
Weight*
19.8 kg
Rated input power
1,500 W
Packaging dimensions (width x length x height)
575 x 845 x 365 mm
* You can find more information about the deviations in the following link:
GCM 305-254 D Professional: Further information
Product Highlights
With its powerful motor, the GCM 305-254 D Professional offers enough cutting performance even for ambitious cuts. The mobile miter saw uses detachable workpiece supports and long table extensions to make cutting long materials easy and simple. Higher comfort and flexibility in demanding cuts are ensured by its dual bevel settings with ergonomic bevel lock wheel.
Equipment & Application
Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic can be done perfectly with the GCM 305‐254 D Professional. The mitre saw is compatible with all Bosch dust extractors, GTA saw stands, and saw blades for corded miter saws.
Additional Information
The mobile miter saw comes up with higher precision due to the dual laser lines display to the left and right of the saw blade. It is light and compact and the various one- or two-handed carrying options make transport easy.
