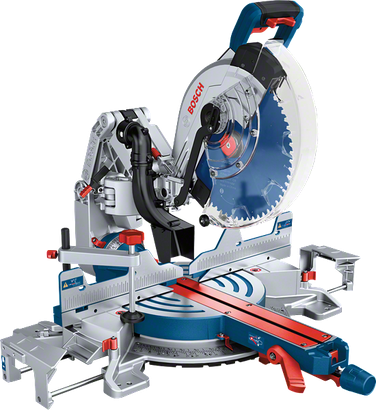

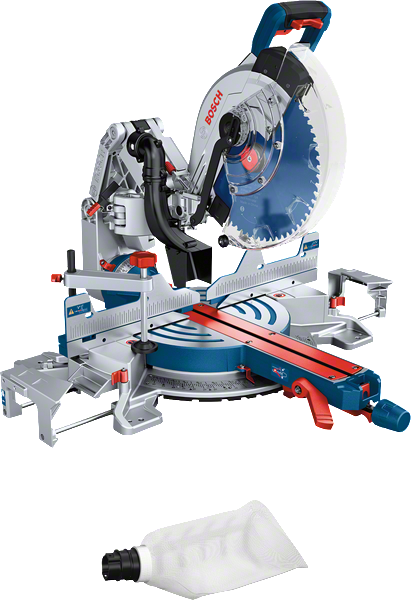

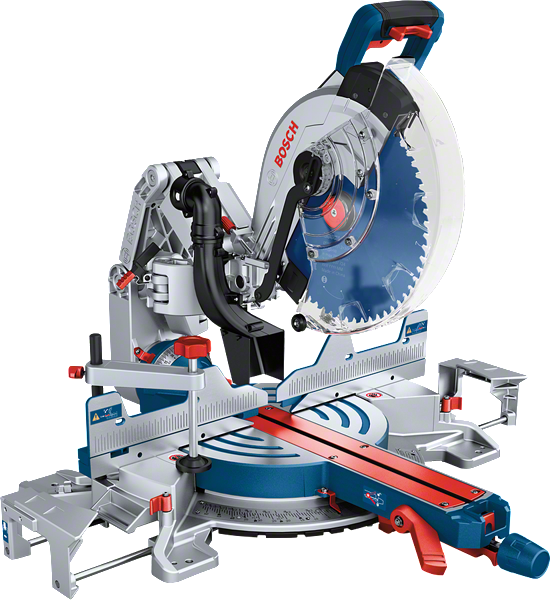

GCM 18V-305 GDC Professional
Cordless Mitre Saw BITURBO
The combination of impressive cutting performance and full cordless flexibility
- Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000 W corded mitre saw

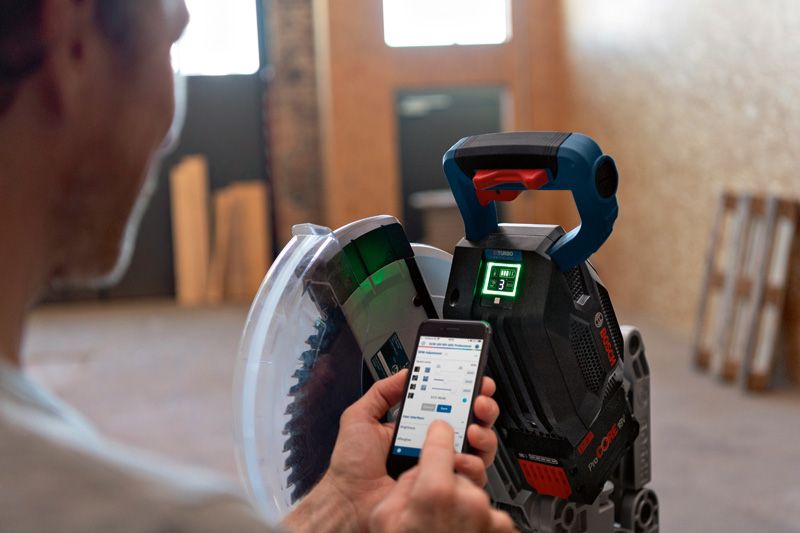

- User Interface and connectivity for battery status check; speed selection including ECO mode
- Tool-less saw blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation
Functions & key features
in cardboard box with accessory set, Bluetooth module
0 601 B43 040
GCM 18V-305 GDC Professional
Your Selection
in cardboard box with accessory set, Bluetooth module
Order number: 0 601 B43 040
Buy nowIncluded in this variant
-
Internal hexagon (spare part number 1 609 B00 256)
-

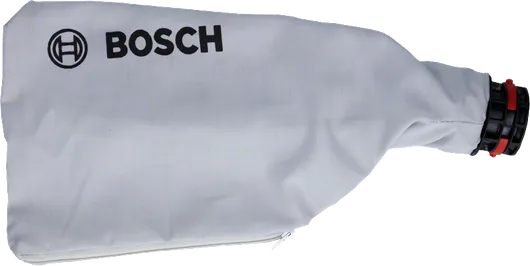

Dustbag (spare part number 1 609 B05 010)
-
ClampOrder number: 1 609 B06 203
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalOrder number: 1 600 A01 6NH
-
Cardboard box
-
1 x cordless saw blade, Wood, 305 x 2.2 x 30 mm, 60Order number: 2 608 644 648
-
SDS saw blade lock (spare part number 1 609 B05 323)
-
Insert plateOrder number: 1 609 B02 375
Technical data
The most important data
Cutting capacity, 0°
104 x 341 mm
Cutting capacity 0° with spacer (max. vertical)
120 x 200 mm
Cutting capacity 0° with spacer (max. horizontal)
45 x 400 mm
Cutting capacity, 45° mitre
104 x 240 mm
Cutting capacity, 45° bevel
40 x 341 mm
Mitre setting
52 ° L / 60 ° R
Bevel setting
47 ° L / 47 ° R

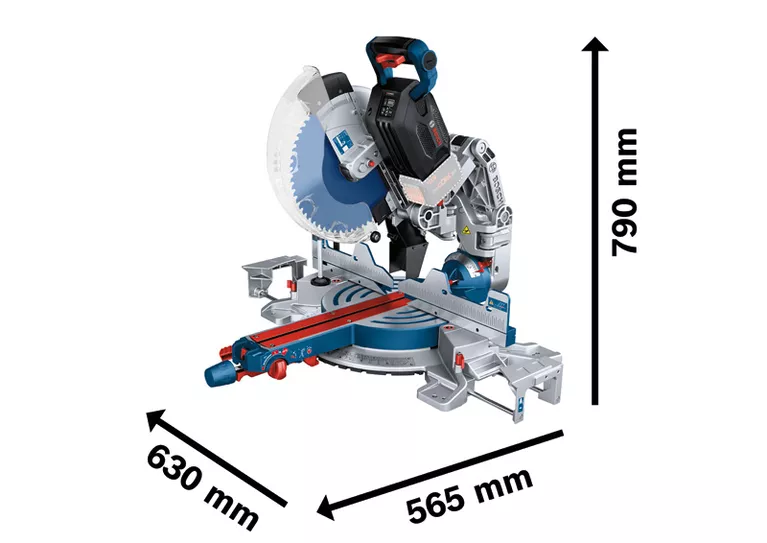

Tool dimensions (width x length x height)
565 x 630 x 790 mm
No-load speed*
2,550 – 4,000 rpm
Saw blade diameter
305 mm
Saw blade bore diameter
30 mm
Weight*
26.6 kg
Battery voltage
18.0 V
Packaging dimensions (width x length x height)
563 x 783 x 580 mm
* You can find more information about the deviations in the following link:
GCM 18V-305 GDC Professional: Further information
Product Highlights
The GCM 18V-305 GDC Professional BITURBO cordless mitre saw offers powerful cutting depth with cuts up to 120 mm. Fully optimised for the ProCORE18V technology, the mitre saw’s brushless motor delivers cordless power equal to 2000 W corded mitre saw. This saw offers a User Interface as well as connectivity for quick battery status check and speed selection including ECO mode. Features like tool-less saw blade change, upfront bevel control, and motor brake enhance the safety of the saw.
Equipment & Application

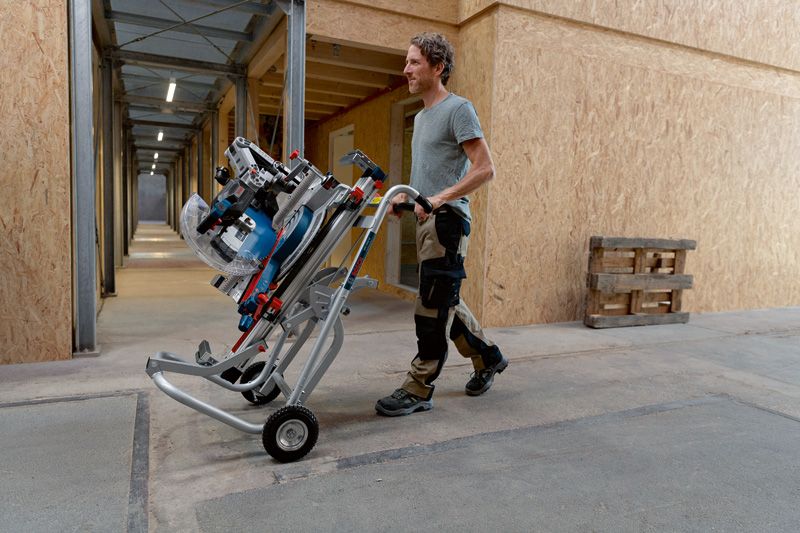

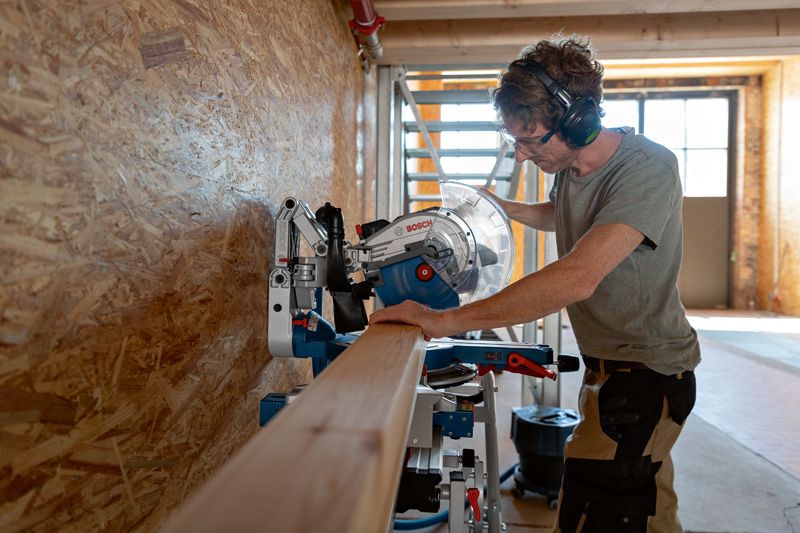

The tool is ideal for compound cutting as well as a broad range of materials. The saw can be mounted on multiple Bosch GTA stands. This mitre saw is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GCM 18V-305 GDC Professional delivers full power with just one battery, also in tough applications. Speed selection and Bosch´s wide saw blade range make this mitre saw perfectly suitable for working with almost any material.
