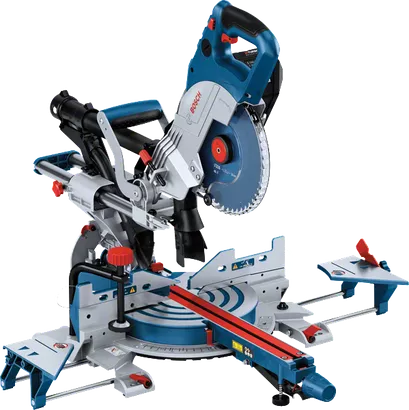

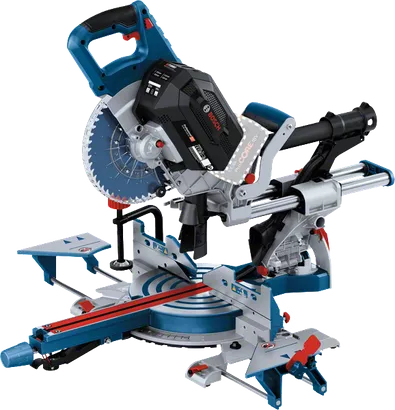

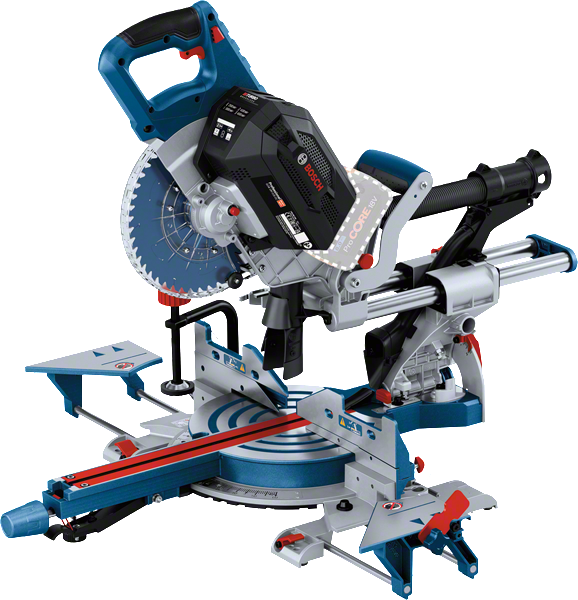

GCM 18V-216 DC Professional

Cordless Mitre Saw BITURBO

GCM 18V-216 DC
GCM 18V-216 DC
GCM 18V-216 DC

Cordless flexibility with corded performance – the fully featured mitre saw

  • Power of a corded 1,600 W mitre saw thanks to its BITURBO Brushless technology
  • Two-point dust extraction for a cleaner and healthier working environment
  • User interface for speed selection including ECO mode and tool-less saw blade change for best user experience.

Functions & key features

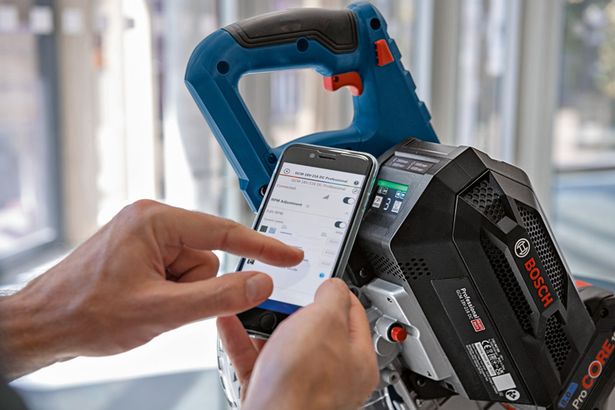

Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
 No additional tools are required for configuring the tool, allowing for user-friendly operation
 Precision Dual Laser; precise and intuitive thanks to laser projection of cutting line left and right of the saw blade
 Illuminating of the work area

Your Selection

  • in cardboard box with circular saw blade, Bluetooth module
Show variant Buy now

in cardboard box with circular saw blade, Bluetooth module 0 601 B47 040

GCM 18V-216 DC Professional

Your Selection

GCM 18V-216 DC
in cardboard box with circular saw blade, Bluetooth module

Order number: 0 601 B47 040

Buy now

Included in this variant

  • Wrench Socket
    Order number: 1 609 B06 988
  • Clamp
    Order number: 1 609 B04 224
  • 1 x circular saw blade, Expert for Wood, 216 x 30 x 1.7 mm, 48
    Order number: 2 608 644 519
  • Stop plate
    Order number: 1 609 B02 365
  • 1 x Bluetooth Low Energy module GCY 42 Professional
    Order number: 1 600 A01 6NH
  • Cardboard box
  • 1 x Hex key
    Order number: 1 609 B07 110
  • SDS saw blade lock (spare part number 1 609 B05 323)
  • Screw
    Order number: 1 609 B00 263
Professional 18V System.
Discover more!

Technical data

The most important data

Cutting capacity, 0° 70 x 300 mm
Cutting capacity, 45° mitre 65 x 214 mm
Cutting capacity, 45° bevel 45 x 306 mm
Mitre setting 52 ° L / 60 ° R

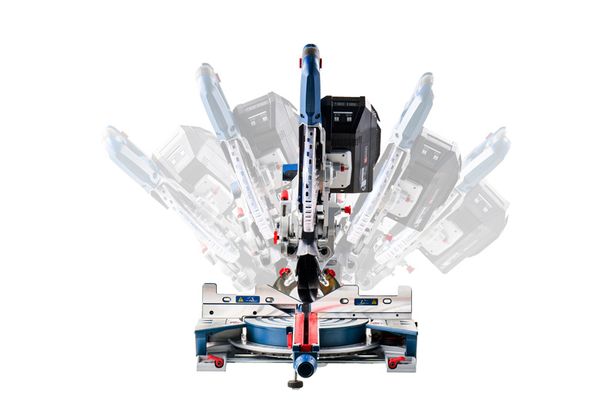

Bevel setting 47 ° L / 47 ° R
Tool dimensions (width x length x height) 817 x 569 x 825 mm
No-load speed* 2,500 – 4,500 rpm
Saw blade diameter 215 mm
Saw blade bore diameter 30 mm
Weight* 15.3 kg
Battery voltage 18.0 V
Packaging dimensions (width x length x height) 588 x 772 x 445 mm

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91.5 dB(A); Sound power level 101.5 dB(A). Uncertainty K= 3 dB.

GCM 18V-216 DC

* You can find more information about the deviations in the following link: Technical features of products

GCM 18V-216 DC Professional: Further information

Product Highlights

GCM 18V-216 DC Professional reaches a large cutting capacity of 70x300 mm and the power of a corded 1,600 W mitre saw thanks to its BITURBO Brushless technology. It offers a two-point dust extraction for a cleaner and healthier working environment and, even when its integrated side extensions are increasing workpiece control, it remains compact and easy to transport. Versatile usage in different materials due to speed selection and ECO mode for extended runtime via the user interface. Further customisation by using the Toolboxx app.

Equipment & Application

The GCM 18V-216 DC is perfect for cross, mitre, and bevel cuts in timber beams and wooden composites as well as floor panels, aluminium, and plastic. It is compatible with the Click & Clean System, all Bosch GTA mitre saw stands, and all Professional 18 V batteries and chargers (Bosch Professional 18V System). For maximum power, use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.

Additional Information

It also features a LED light and a dual bevel function.

videos and images may depict overseas models. For local executions please see scope of supply
