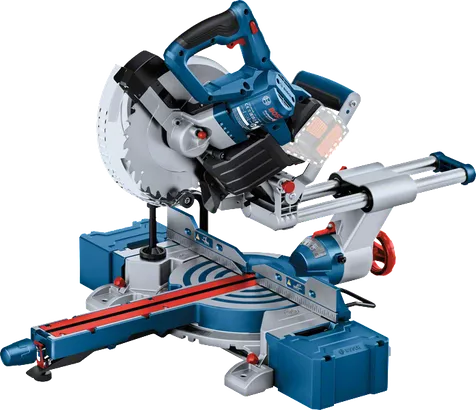

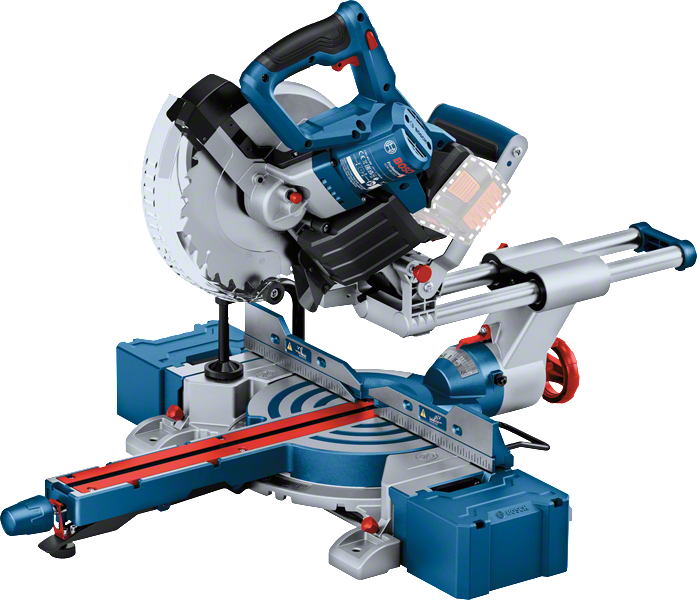

GCM 18V-216 D Professional

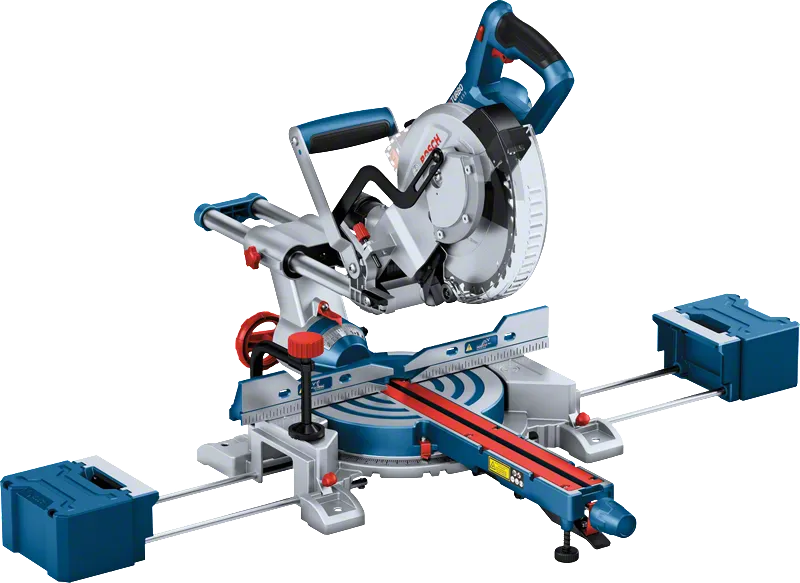

Cordless Mitre Saw BITURBO

GCM 18V-216 D
GCM 18V-216 D
GCM 18V-216 D

New standard in ergonomics: mobile cordless miter saw with 70 x 305 mm cutting capacity

  • Corded cutting performance thanks to the BITURBO Brushless drive train
  • Easy control of long materials during cutting

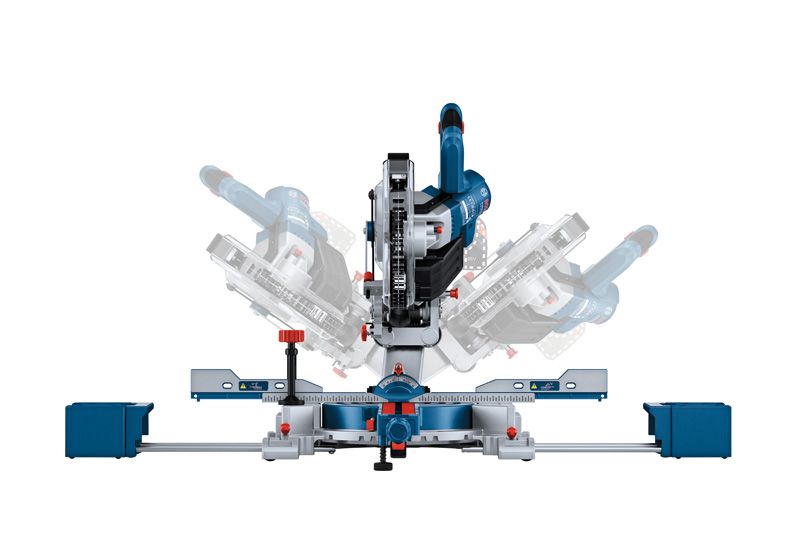

  • Higher convenience and flexibility at challenging cuts due to dual bevel function

Functions & key features

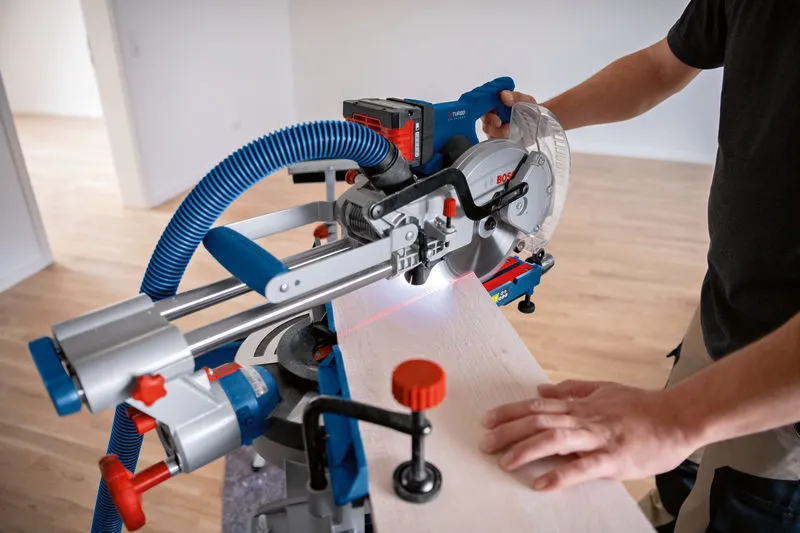

 Precision Dual Laser; precise and intuitive thanks to laser projection of cutting line left and right of the saw blade

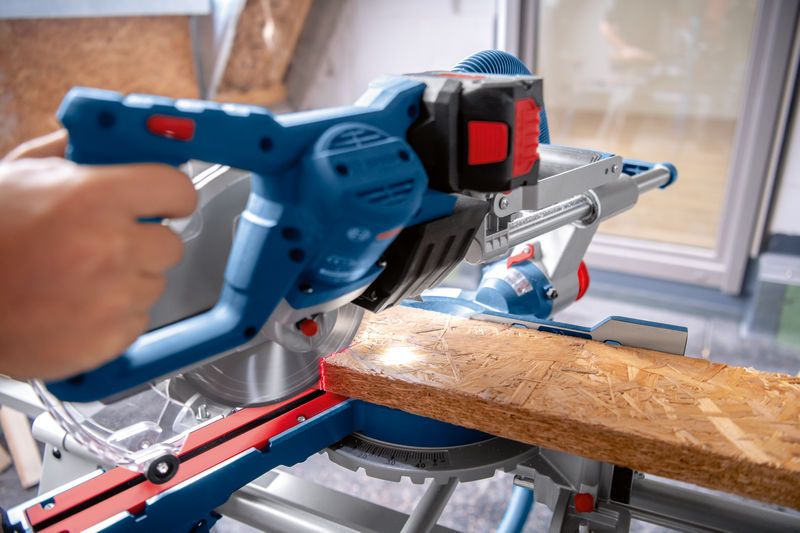

 Illuminating of the work area
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • with 1 x circular saw blade, Standard for Wood, 216 x 30 x 1.7 mm, 24 (2 608 644 646)
Show variant

Available in 2 onlineshop(s)

Buy now

with 1 x circular saw blade, Standard for Wood, 216 x 30 x 1.7 mm, 24 (2 608 644 646) 0 601 B51 040

GCM 18V-216 D Professional

Your Selection

GCM 18V-216 D
with 1 x circular saw blade, Standard for Wood, 216 x 30 x 1.7 mm, 24 (2 608 644 646)

Order number: 0 601 B51 040

Buy now

Included in this variant

  • 1 x circular saw blade, Standard for Wood, 216 x 30 x 1.7 mm, 24
    Order number: 2 608 644 646

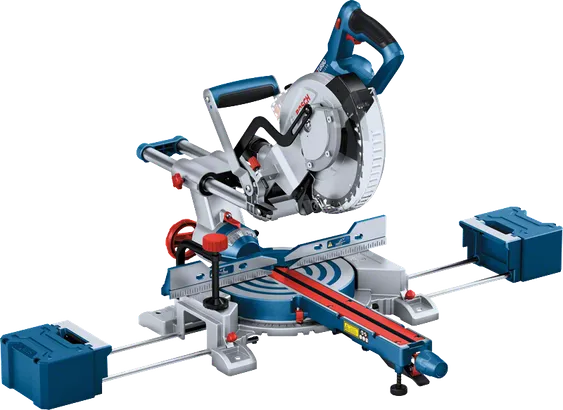

  • 2 x Workpiece support (flexibly pluggable)
    Order number: 1 609 B07 675

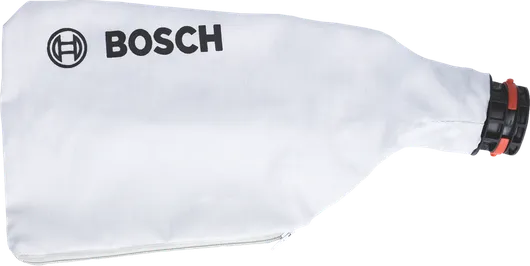

  • Dust bag
    Order number: 2 608 000 841
  • Clamp
    Order number: 1 609 B06 930
Professional 18V System.
Discover more!

Technical data

The most important data

Cutting capacity, 0° 70 x 305 mm
Cutting capacity, 45° mitre 70 x 215 mm
Cutting capacity, 45° bevel 42 x 305 mm
Mitre setting 48 ° L / 48 ° R
Bevel setting 47 ° L / 47 ° R

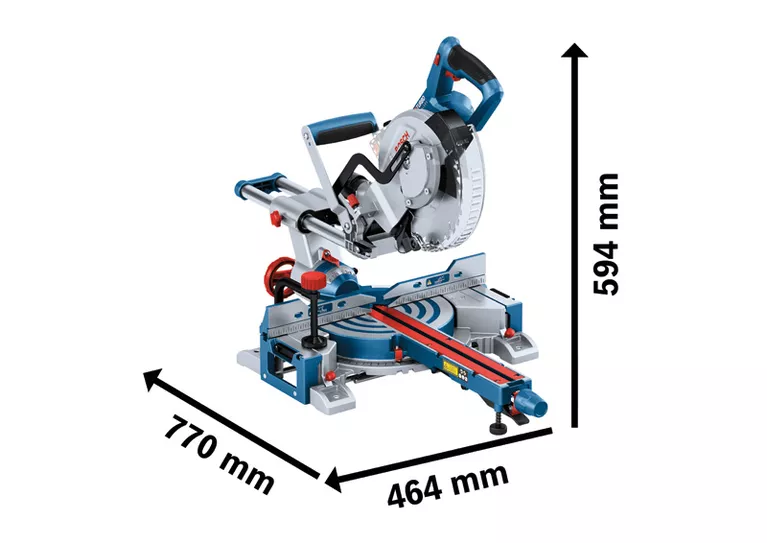

Tool dimensions (width x length x height) 464 x 770 x 594 mm
No-load speed* 5,000 rpm
Saw blade diameter 216 mm
Saw blade bore diameter 30 mm
Battery voltage 18.0 V
Packaging dimensions (width x length x height) 555 x 790 x 350 mm
BITURBO Yes

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.

GCM 18V-216 D

* You can find more information about the deviations in the following link: Technical features of products

GCM 18V-216 D Professional: Further information

Product Highlights

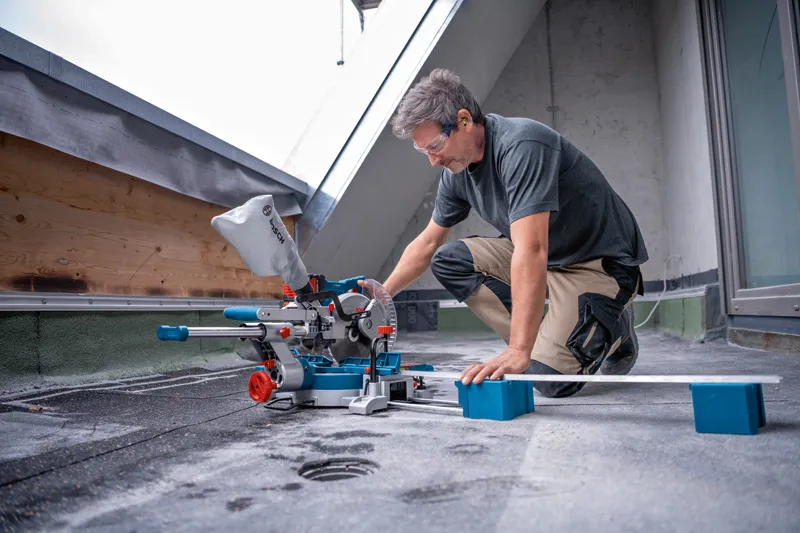

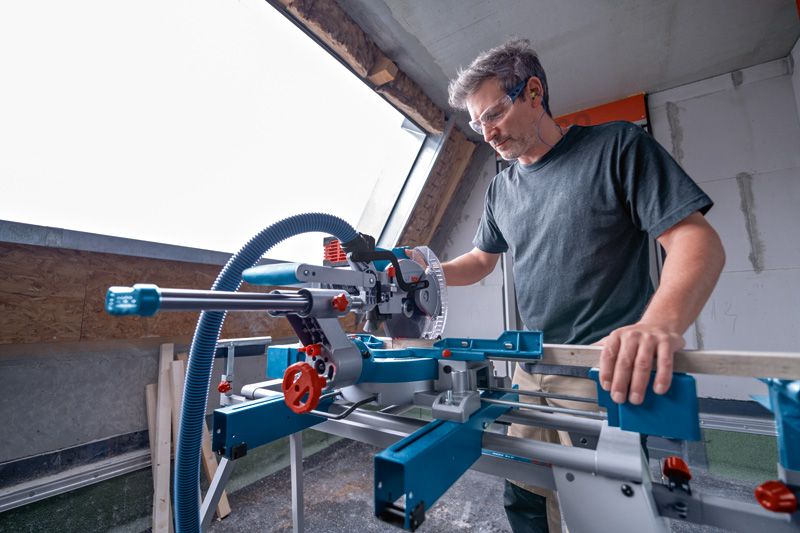

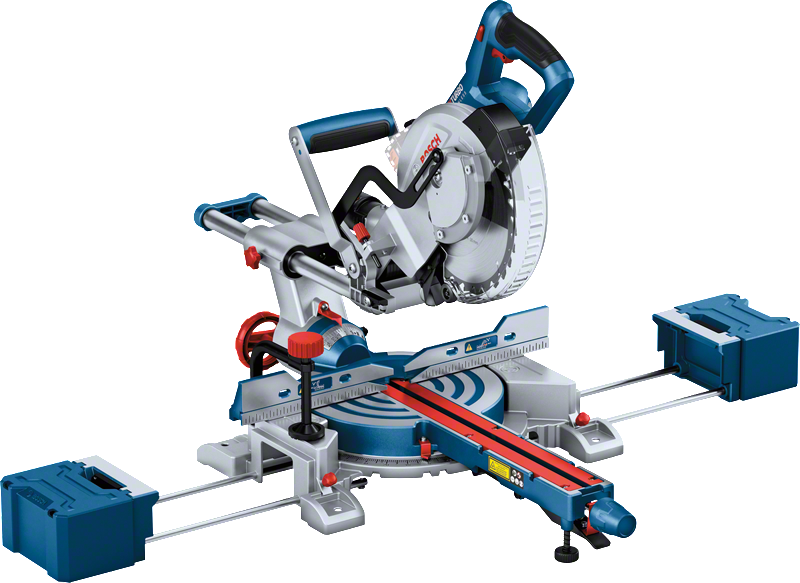

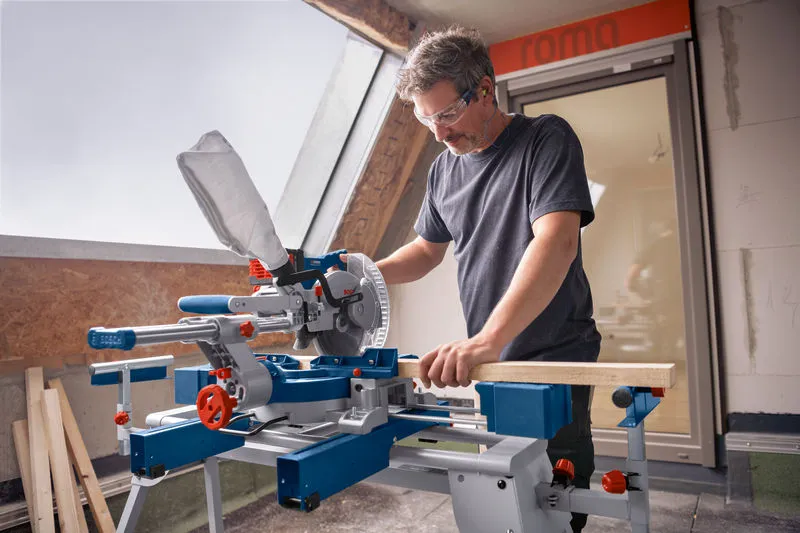

The cordless GCM 18V-216 D Professional offers maximum cutting performance thanks to its BITURBO Brushless drive train combined with a ProCORE18V battery. The mobile miter saw can easily control long materials during cutting due to its detachable workpiece supports and long table extensions. Its dual bevel setting with ergonomic bevel lock wheel allows more comfort and flexibility for demanding cuts.

Equipment & Application

The GCM 18V-216 D Professional is versatile for cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic. It is compatible with all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah. For sufficient runtime, 8 Ah or 12 Ah are recommended. It is also compatible with all Bosch dust extractors, GTA saw stands, and saw blades for cordless miter saws. Also compatible with AMPShare, the multi-brand battery alliance.

Additional Information

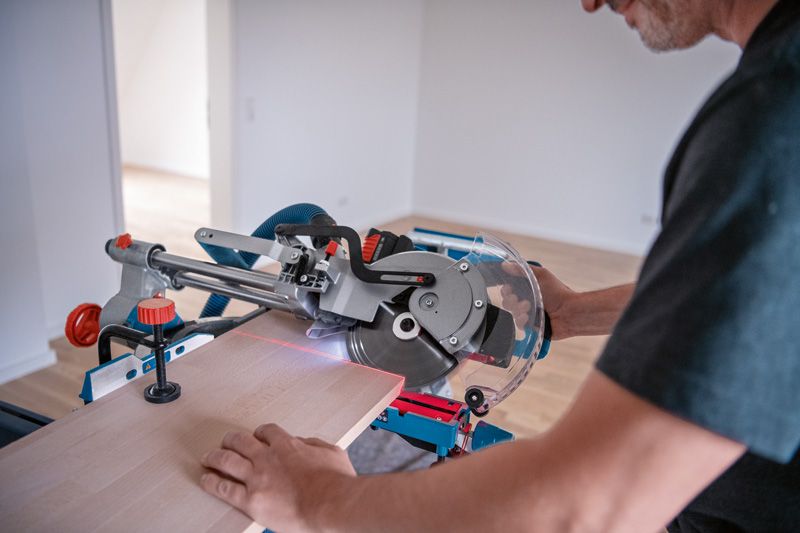

The light cordless miter saw has various one- or two-handed carrying options and its compactness make it easy to transport. Higher precision is ensured due to the dual laser lines on the left and right side of the saw blade.

videos and images may depict overseas models. For local executions please see scope of supply
