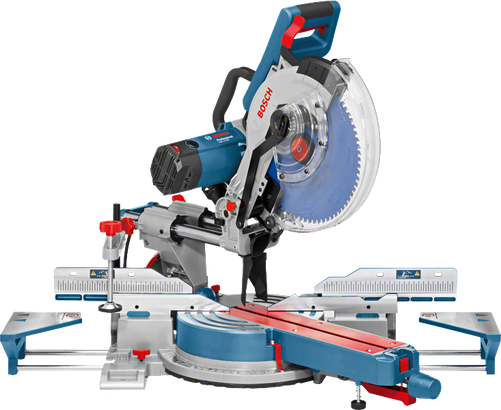

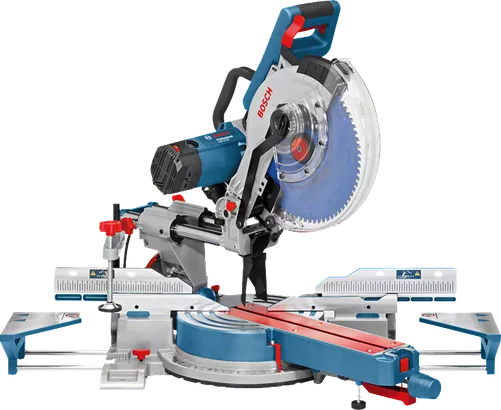

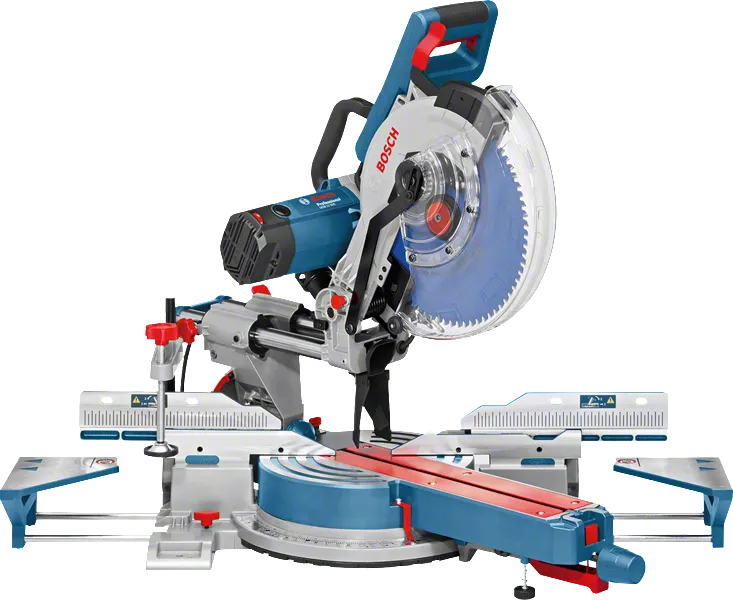

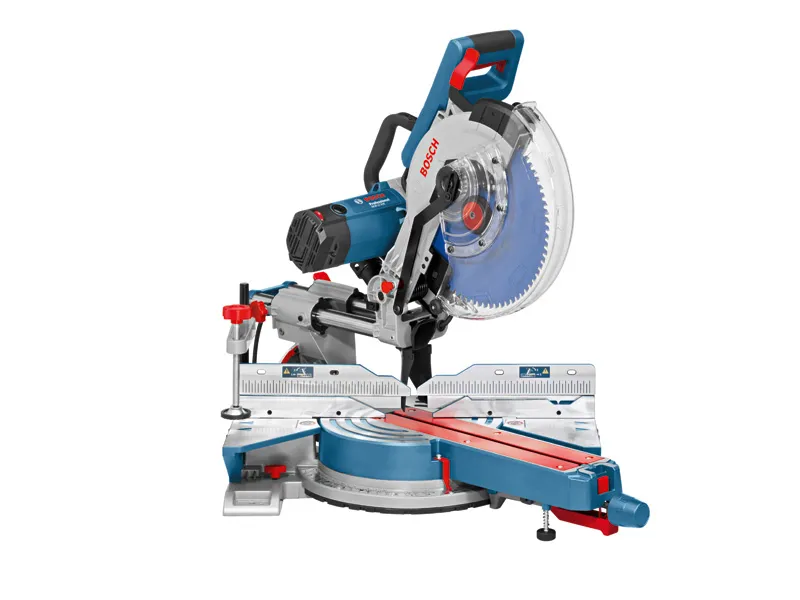

Sliding Mitre Saw
GCM 12 SDE Professional

High cutting capacity and variable speed for various applications

Print

NEW!
BITURBO BRUSHLESS. REVOLUTIONARY PERFORMANCE.
Discover more!
Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Cutting capacity, 0° 85 x 370 mm
Cutting capacity 0° with spacer (max. vertical) 120 x 200 mm
Cutting capacity 0° with spacer (max. horizontal) 70 x 400 mm
Cutting capacity, 45° mitre 85 x 250 mm
Cutting capacity, 45° bevel 60 x 360 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R

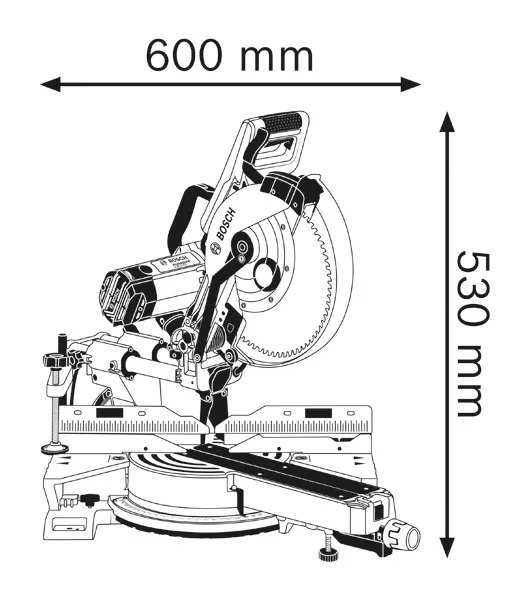

Tool dimensions (width x length x height) 860 x600 x530 mm
No-load speed 3,100 – 4,000 rpm

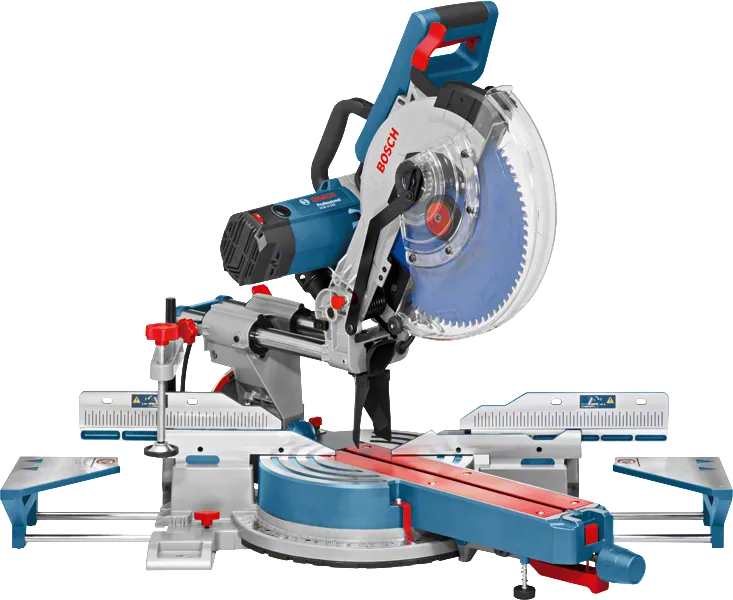

Saw blade diameter 305 mm
Saw blade bore diameter 30 mm
Weight 28.6 kg
Rated input power 1,800 W
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 92 dB(A)
Sound power level 105 dB(A)
Uncertainty K 3 dB
Sawing wood
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

High cutting capacity and variable speed for various applications

  • Extremely high cutting capacity 120 mm vertical and 400 mm horizontal enables cuts in very large workpieces
  • Variable cutting speed ensures high versatility in various materials
  • Fast, tool-free saw blade change ensures easy and convenient handling

Functions

Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories

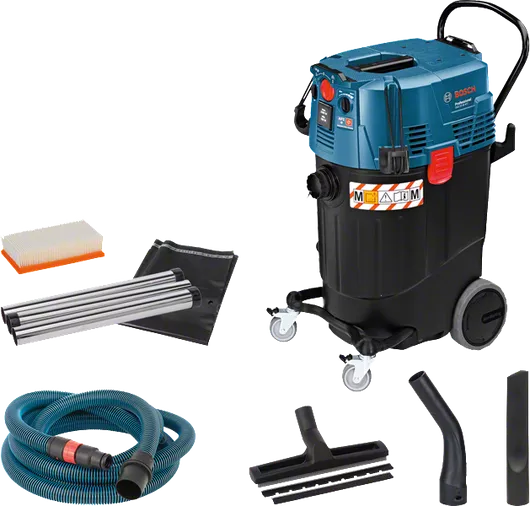

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Easy bevel angle adjustment due to preset angle stops
 No additional tools are required for configuring the tool, allowing for user-friendly operation
Easy set up thanks to laser projection of cutting line
Icon

Scope of supply

GCM 12 SDE

Order number: 0 601 B23 140
