GCL 25 Professional

Combi Laser

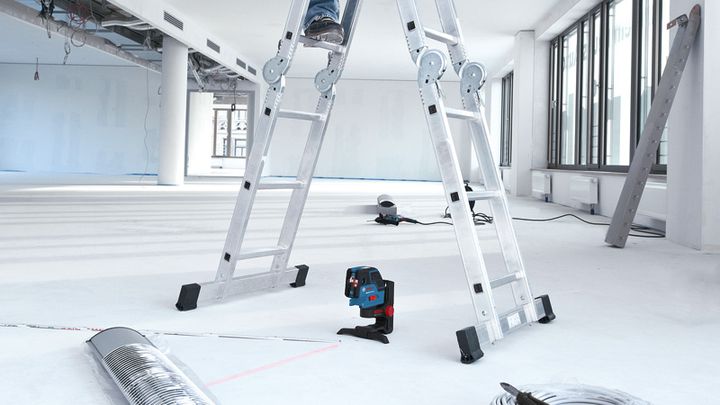

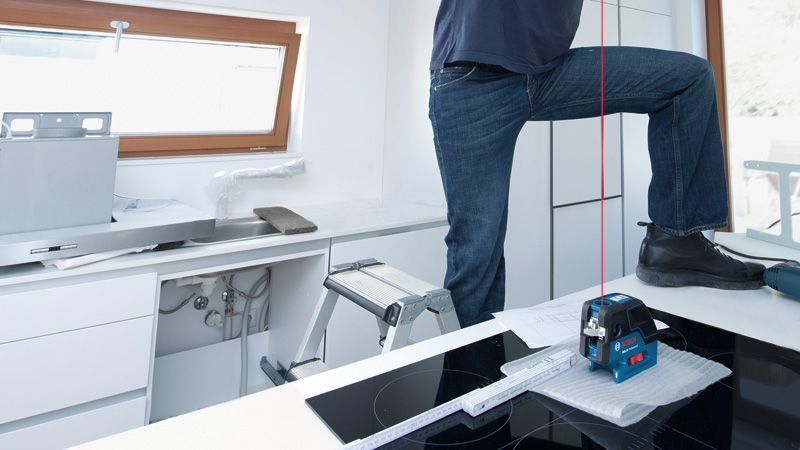

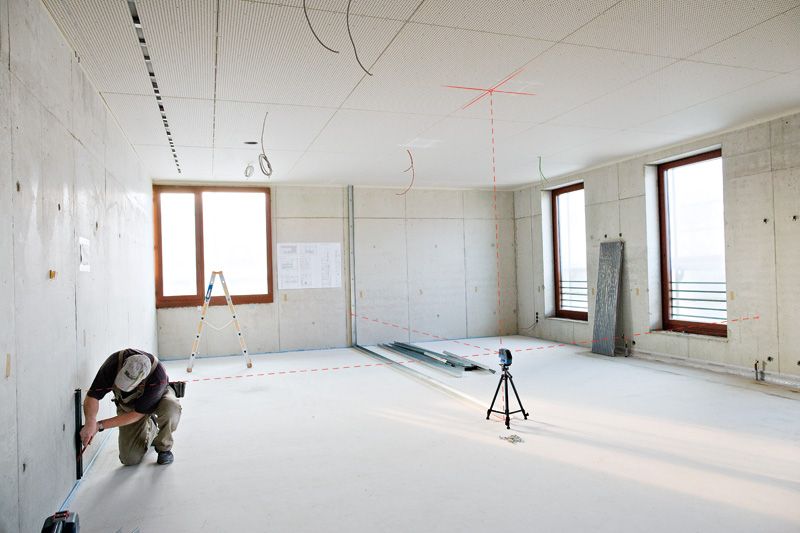

The easy solution for all levelling and transfer jobs over short distances

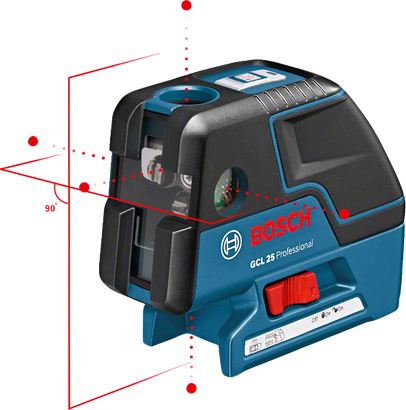

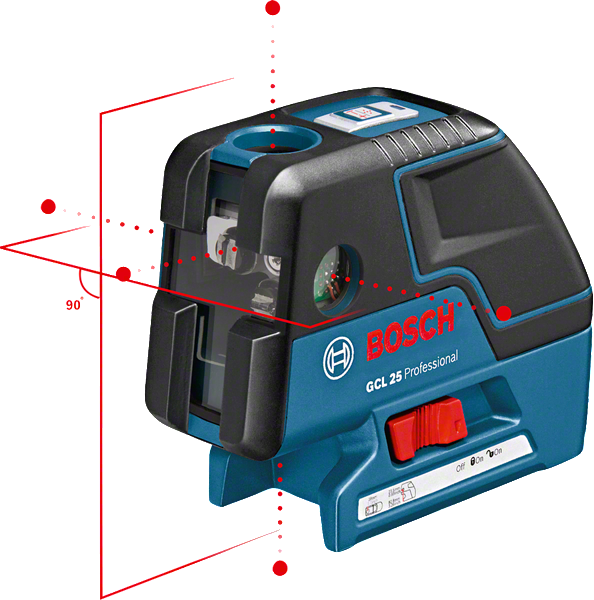

Extremely versatile: cross line laser and five-point laser in one
Easy to operate using intuitive user interface
Compact and ergonomic design

Functions & key features

Your Selection

with 4 x battery (AA), laser target plate

Show variant

Available in 4 onlineshop(s)

Check availability on location

Buy now

Your Selected Variant

with 4 x battery (AA), laser target plate 0 601 066 B00

Buy now

GCL 25 Professional

Your Selection

with 4 x battery (AA), laser target plate

Order number: 0 601 066 B00

Buy now

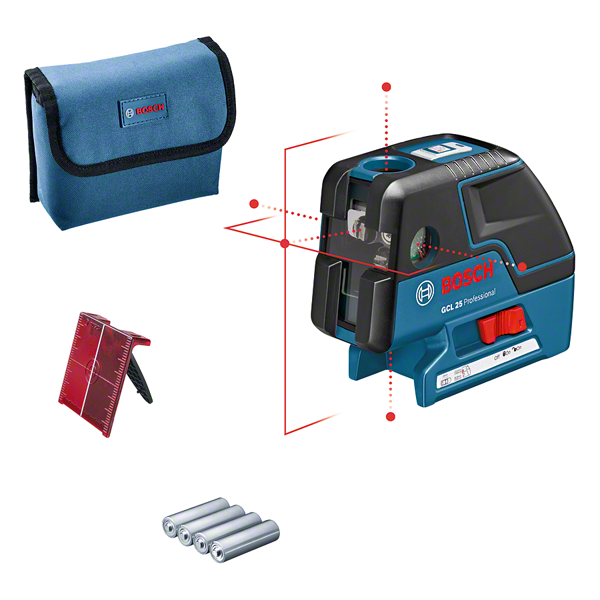

Included in this variant

Protective Bag
L-BOXX inlay for tool
4 x 1.5 V LR6 battery (AA)
Laser target plate

Your selection

Our service promise for professionals.

Technical data

The most important data
Laser diode	630 – 650 nm, < 1mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range*	10 m
Accuracy*	Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (plus use-dependent deviation), Horizontal laser line: ± 0.2 mm/m ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max.*	10 m (top), 5 m (bottom), 30 m horizontal
Self-levelling range	± 4°
Levelling time	4 s
Dust and splash protection	IP 54
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	12 h in line and point mode, 24 h in 5-point mode, 30 h in line mode
Tripod thread	1/4", 5/8"

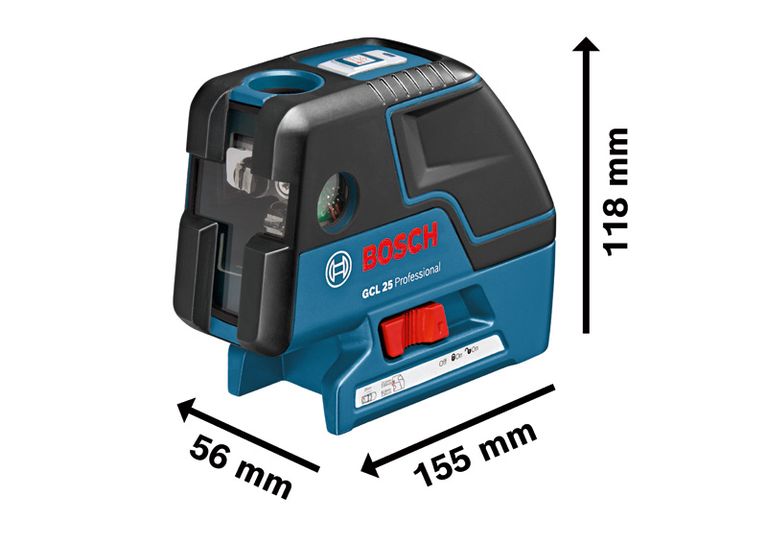

Weight, approx.**	0.6 kg
Colour of laser line	red
Color of plumb points	red
Projection	2 lines / 5 points
Plumb point accuracy***	± 0.7 mm/m* (*plus use-dependent deviation)

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products
