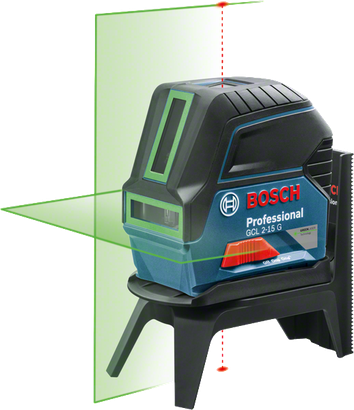

Combi Laser
GCL 2-15 G Professional

in carrying case with 3 x battery (AA), rotating mount

Green laser lines for up to four times better visibility

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

Laser diode Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
Operating temperature -10 – 50°C
Storage temperature -20 – 70°C
Laser class 2
Working range up to 15 m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.49 kg
Colour of laser line green
Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)

Advantages

Green laser lines for up to four times better visibility

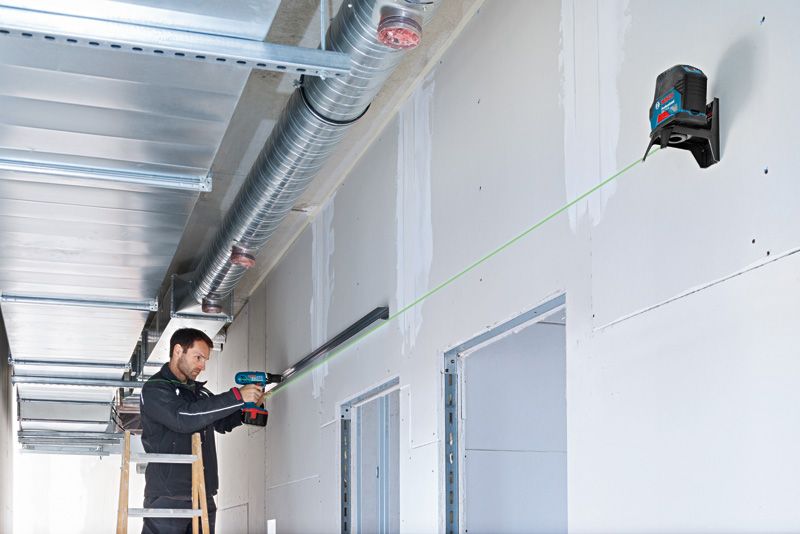

  • Green horizontal and vertical laser lines for up to four times better visibility than red lines

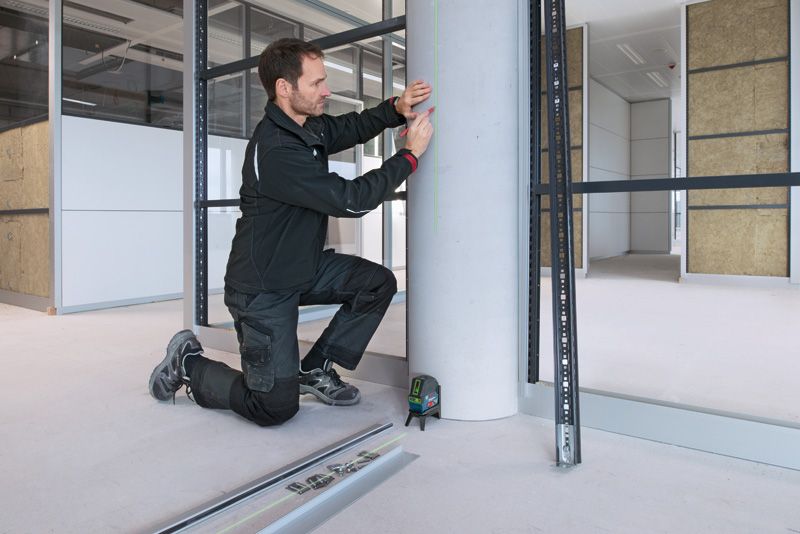

  • Precise transfer applications thanks to red plumb points

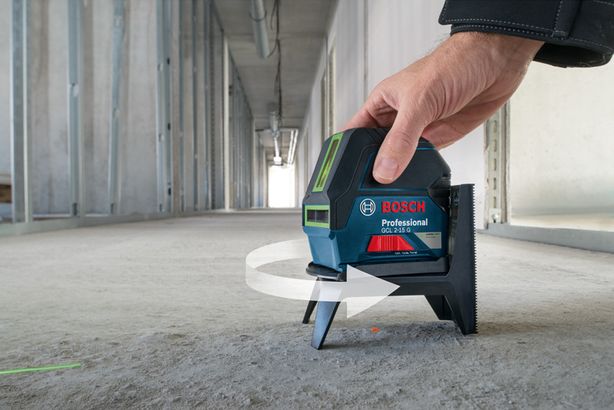

  • Rotating mount RM 1 Professional allows laser lines to be easily aligned around the plumb points

Functions

Icon
Working range up to 15 m
Tripod mount  for 5/8" and 1/4" tripod thread
Laser class 2
Slide mechanism
Icon
Working range up to 15 m
Icon
Line accuracy of ± 0.3 mm/m* (*plus use-dependent deviation)
Icon
Tripod mount  for 5/8" and 1/4" tripod thread
Icon

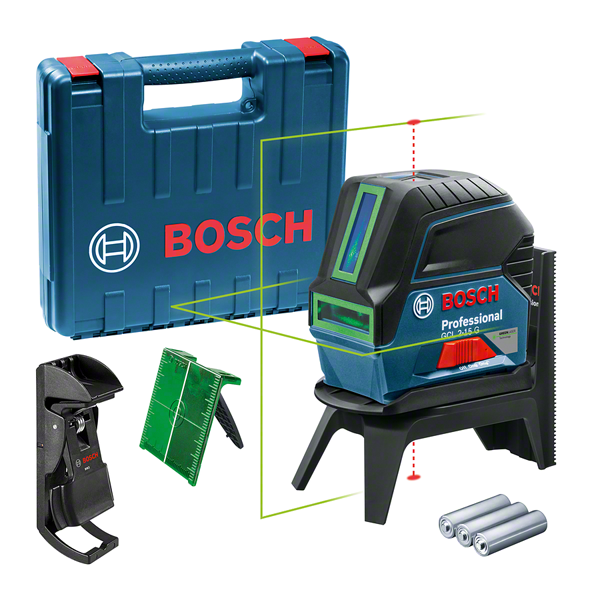

Scope of supply

in carrying case with 3 x battery (AA), rotating mount

Order number: 0 601 066 J00

Selected version

Price includes:

  • Carrying case
  • Rotating mount RM 1 Professional 0 601 092 600
  • Ceiling clamp
  • Laser target plate
  • 3 x 1.5 V LR6 battery (AA)
