Combi Laser
GCL 2-15 Professional

in carrying case with 3 x battery (AA), rotating mount

Compact and versatile for short-distance levelling applications

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50°C
Storage temperature -20 – 70°C
Laser class 2
Working range up to 15 m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max. 10 m (top), 10 m (bottom)

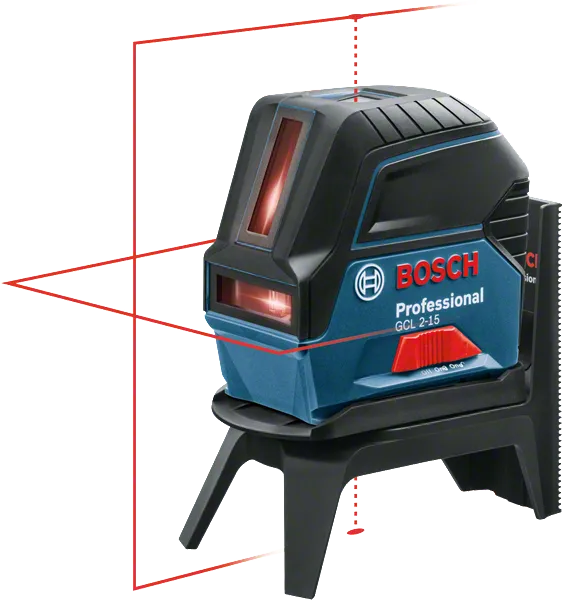

Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread 1/4", 5/8"

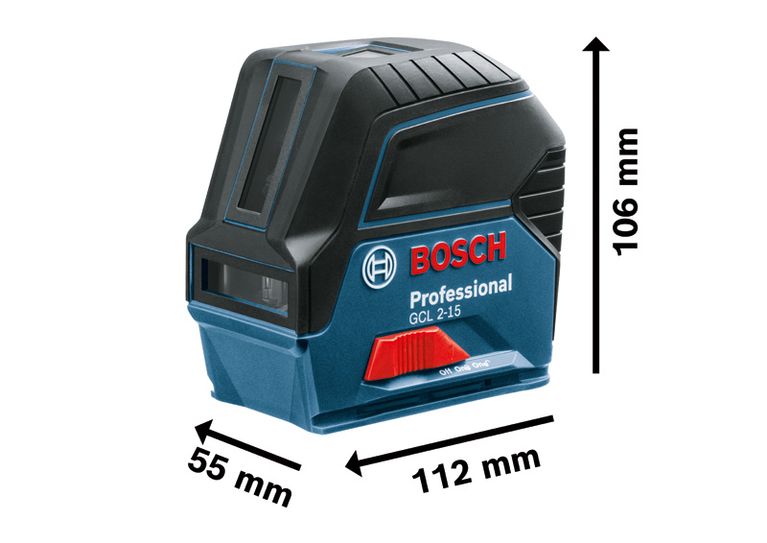

Weight, approx. 0.49 kg
Colour of laser line red

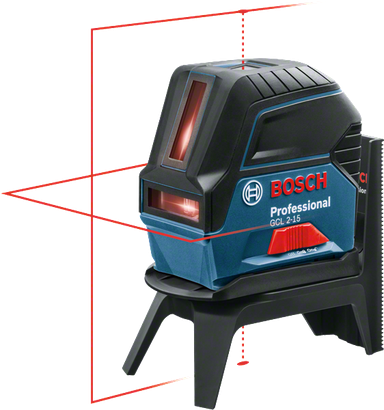

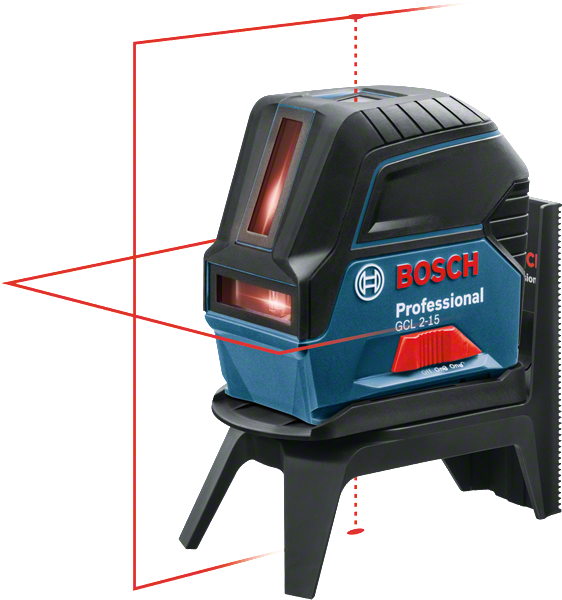

Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)

Advantages

Compact and versatile for short-distance levelling applications

  • Both horizontal and vertical lines are perfect for short-distance levelling applications
  • Enjoy precise transfer applications thanks to two centred plumb points
  • Rotating mount RM 1 Professional allows laser lines to be easily positioned around the plumb points

Functions

Working range up to 15 m
Tripod mount  for 5/8" and 1/4" tripod thread
Laser class 2

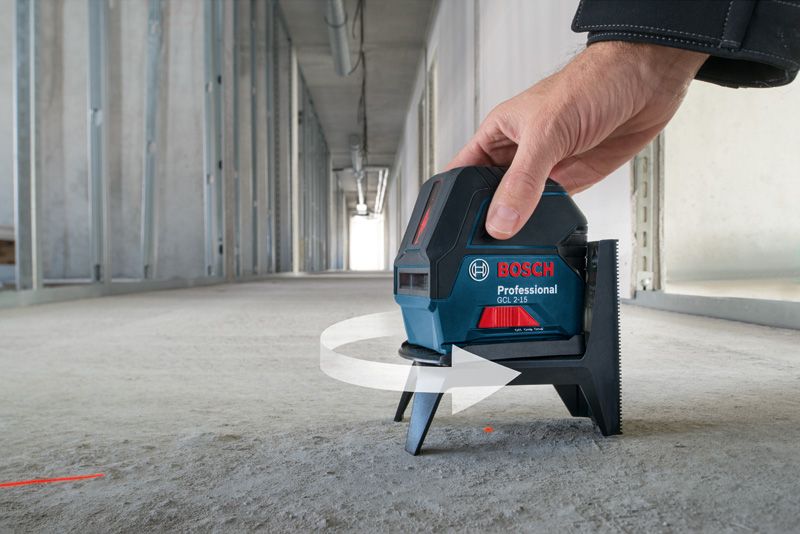

Easy line positioning  around the plumb dot
Slide mechanism
Working range up to 15 m
Icon
Icon
Line accuracy of ± 0.3 mm/m* (*plus use-dependent deviation)
Icon
Tripod mount  for 5/8" and 1/4" tripod thread
Icon
Icon
Easy line positioning  around the plumb dot
IP54 dust and splash water protection
Icon

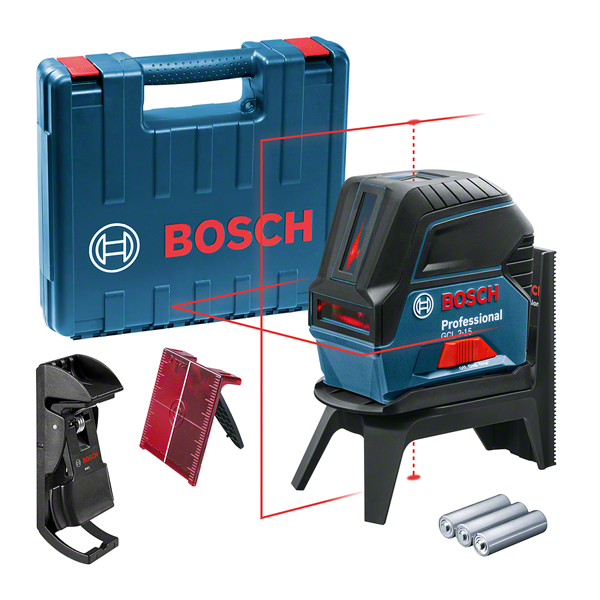

Scope of supply

in carrying case with 3 x battery (AA), rotating mount

Order number: 0 601 066 E02

Selected version

Price includes:

  • Carrying case
  • Rotating mount RM 1 Professional 0 601 092 600
  • Ceiling clamp
  • Laser target plate
  • 3 x 1.5 V LR6 battery (AA)
