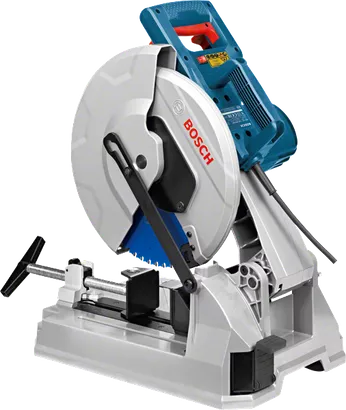

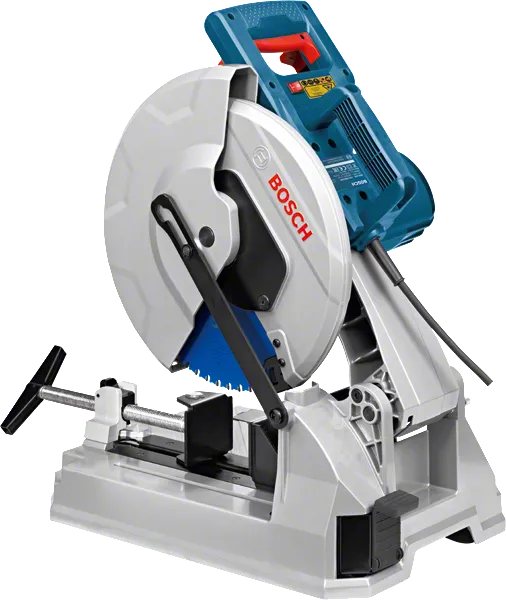

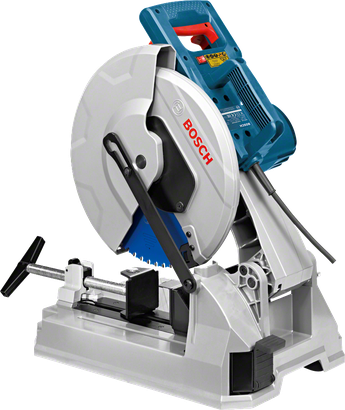

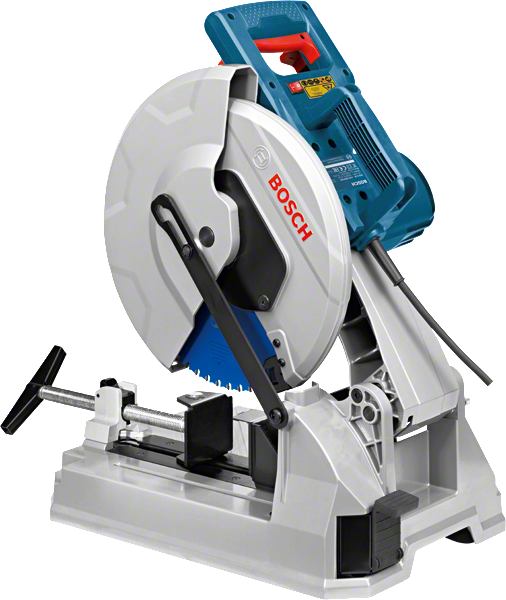

Metal Cut-off Saw
GCD 12 JL Professional

with accessory set

Precise results, less rework and up to 100% spark-free

Print

More

Technical data

The most important data

Cutting capacity at rectangle 0º 158 x 80 mm
Cutting capacity at square 0º 100 x 100 mm
Cutting capacity at L-profile 0º 110 x 110 mm
Cutting capacity at rectangle 45º mitre 85 x 85 mm
Cutting capacity at square 45º mitre 85 x 85 mm
Cutting capacity at L-profile 45º mitre 85 x 85 mm
Tool dimensions (width x length x height) 327 x 517 x 383 mm
No-load speed 1,500 rpm
Weight 20 kg
Rated input power 2,000 W
Packaging dimensions (width x length x height) 385 x 575 x 485 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 100 dB(A)
Sound power level 113 dB(A)
Uncertainty K 3 dB
Cutting metal
Vibration emission value ah 3.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Precise results, less rework and up to 100% spark-free

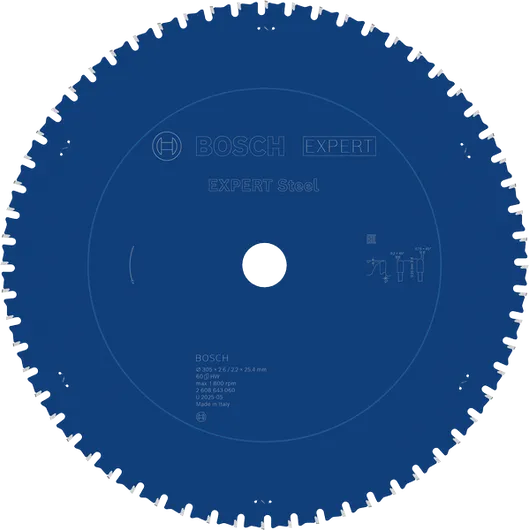

  • Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades
  • Integrated laser allows precise cutting guidance
  • Up to 100% spark-free for a safe working environment

Functions

Prices / Package contents


with accessory set

Order number: 0 601 B28 040

Selected version

Price includes:

  • Carton box
  • Allen key
  • Saw blade
