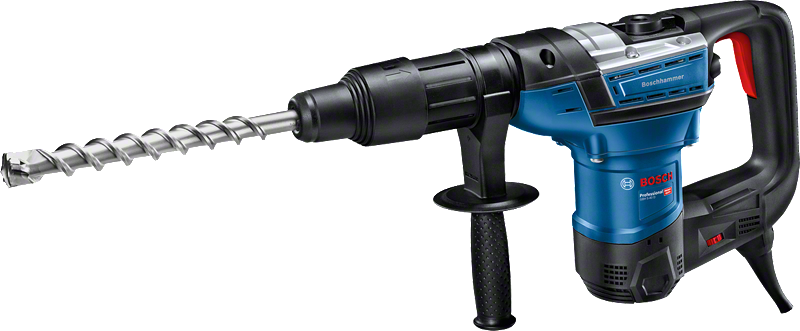

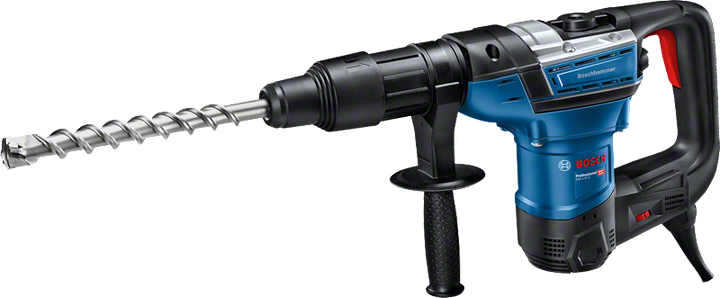

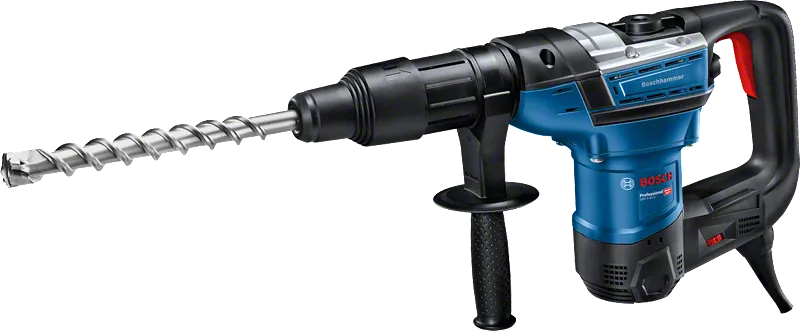

Rotary Hammer with SDS max
GBH 5-40 D Professional

Bosch’s entry-level tool in the SDS max rotary hammer category

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 1,100 W
Impact energy 8.5 J
Impact rate at rated speed 1,500 – 2,900 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg
Tool holder SDS max
Packaging dimensions (width x length x height) 410 x 620 x 150 mm
Drilling range
Drilling dia. concrete, hammer drill bits, from 12 mm
Drilling dia. concrete, hammer drill bits, up to 40 mm
Drilling dia. concrete, hammer drill bits 12 – 40 mm
Opt. appl. range concrete, hammer drill bits 18 – 32 mm
Drilling dia. concrete, breakthrough drill bits 45 – 55 mm
Drilling dia. concrete, core cutters, from 40 mm
Drilling dia. concrete, core cutters, up to 90 mm
Drilling diameter in concrete with core cutters 40 – 90 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter concrete 40 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 11.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Bosch’s entry-level tool in the SDS max rotary hammer category

  • Compact and lightweight for work in hard-to-reach places
  • Durable due to robust metal components and optimised lubrication system
  • Strong motor enables the delivery of 8.5 J of impact energy for fast drilling and high removal rate

Functions

Construction The professional power tools for construction from Bosch.

Scope of supply

GBH 5-40 D

Order number: 0 611 269 040
