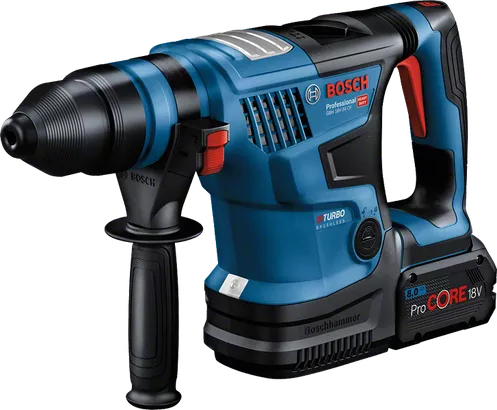

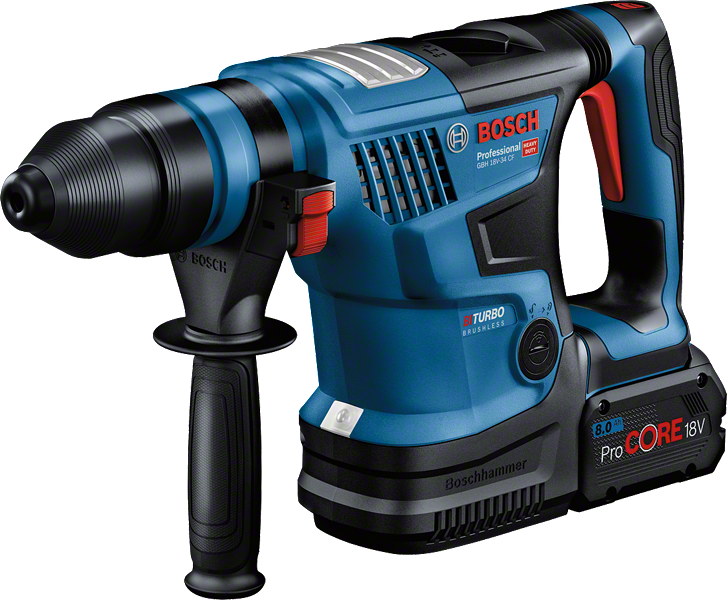

GBH 18V-34 CF Professional

Name: GBH 18V-34 CF
Brand: Bosch power tools
SKU: 0611914041

Cordless Rotary Hammer BITURBO with SDS plus

The market´s most powerful cordless SDS plus hammer

Paramount performance with 5.8 J – the most powerful cordless SDS plus hammer in its range for tough jobs in concrete
Perfect control – soft start for precise chiselling and 3 different working modes to ensure the right setting for any job
Smartest SDS plus hammer – real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app

See technical details

Functions & key features

Your Selection

with depth stop, Bluetooth module

Show variant

Available in 4 onlineshop(s)

Check availability on location Buy now

Your Selected Variant

with depth stop, Bluetooth module 0 611 914 041

Buy now

GBH 18V-34 CF Professional

Your Selection

with depth stop, Bluetooth module

Order number: 0 611 914 041

Available in 4 onlineshop(s)

Buy now

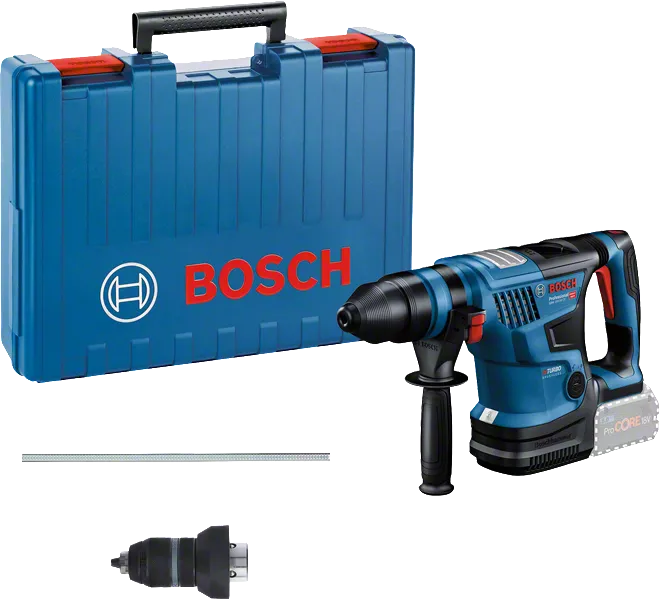

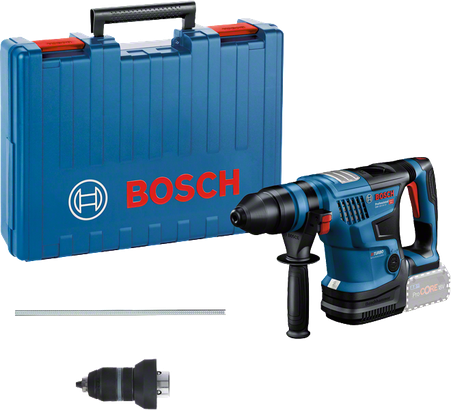

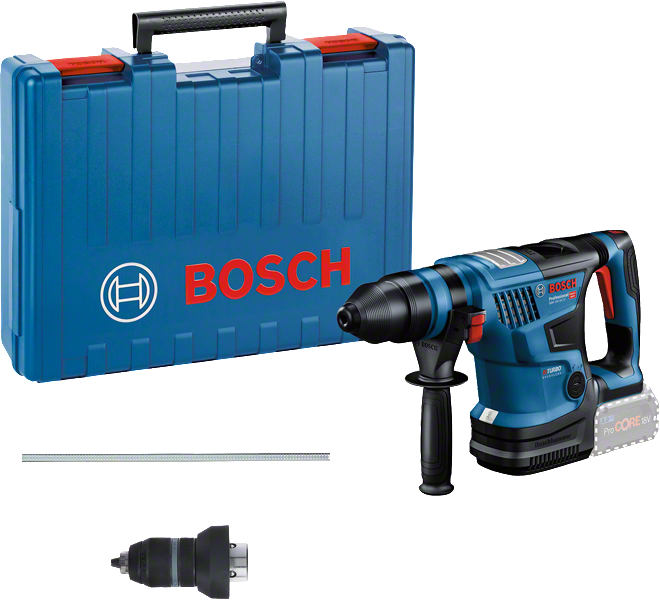

This product includes

1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
Carrying case (spare part number 1 605 438 1G2)
Auxiliary handle 2 608 000 703
Depth stop (spare part number 1 613 001 009)
SDS plus quick-change chuck 2 608 000 704
Quick-change chuck 1.5 - 13 mm 2 608 000 710
Grease tube (spare part number 1 615 430 010)
Machine cloth (spare part number 1 619 200 413)

Show less

Our service promise for professionals.

Technical data

The most important data
Impact energy (according to EPTA 05/2016)*	5.8
Impact rate at rated speed*	0 – 2,900 bpm
Rated speed*	0 – 500 rpm
Battery voltage*	18.0 V
Weight excl. battery*	4.9
Tool holder	SDS plus

Drilling range
Drilling dia. in concrete with hammer drill bits	8 – 32 mm
Opt. app. range in concrete with hammer drill bits	12 – 30 mm
Max. drilling diameter in metal	13
Max. drilling diameter in wood	40

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	10.9
Uncertainty K	1.5

Noise/vibration information
Sound pressure level	92 dB(A)
Sound power level	103 dB(A)
Uncertainty K	3 dB

GBH 18V-34 CF Professional: Further information

Product Highlights

Perfect for demanding jobs in concrete – Bosch´s GBH 18V-34 CF Professional is the most powerful cordless SDS plus hammer, ideal for tough applications. This powerhouse´s BITURBO Brushless technology with ProCORE18V battery delivers an outstanding performance of 5.8 J, making it the most powerful cordless SDS plus hammer in its range.

Equipment & Application

Perfect tool control is ensured by its soft start function for precise chiselling during use and three different working modes (Auto, Favorite, Soft) that provide the right setting for every job.

Additional Information

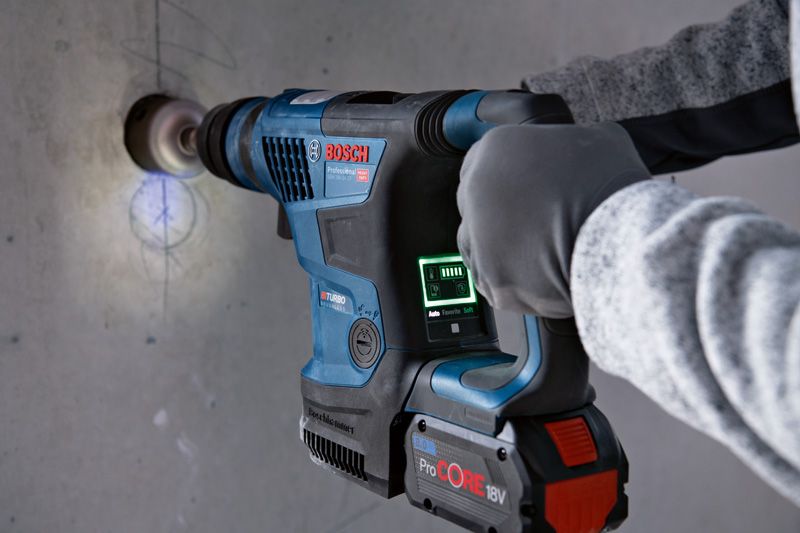

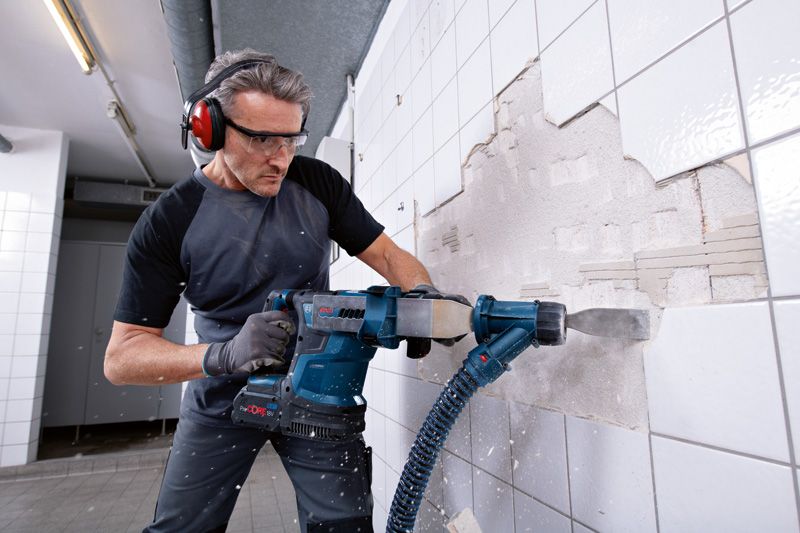

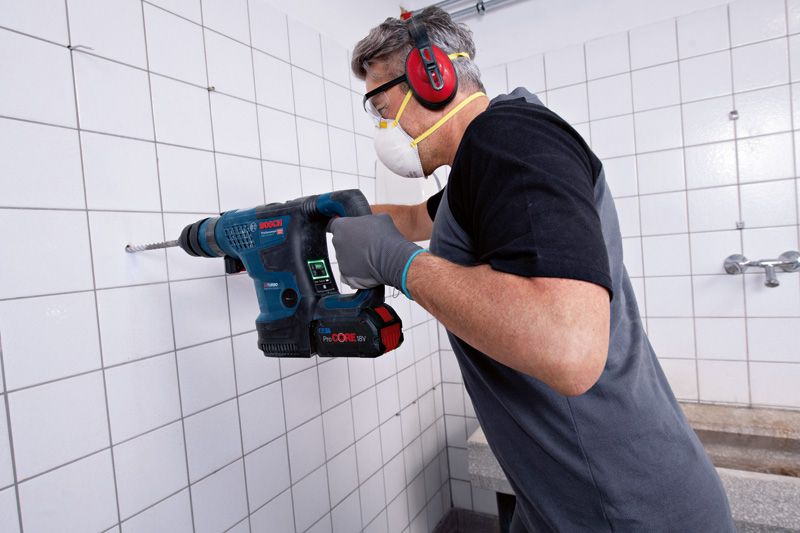

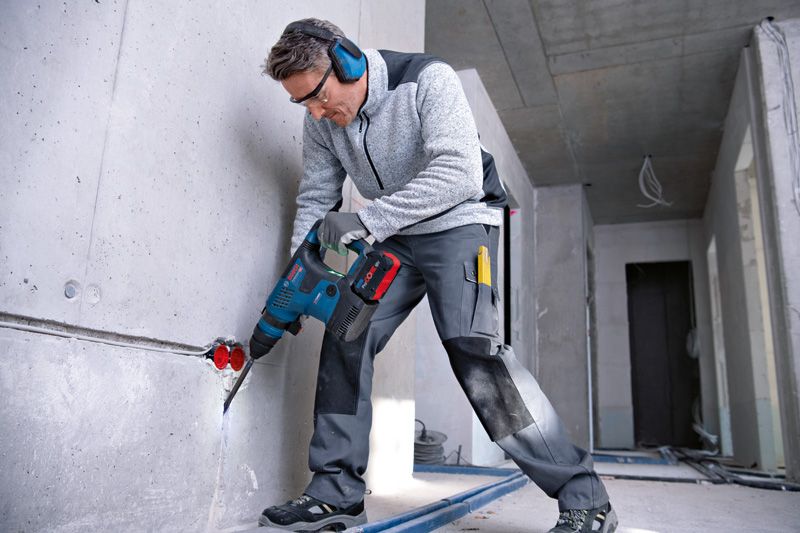

The 18V-34 CF is also the smartest SDS plus hammer, displaying real-time tool status via its user interface and allowing for individual adjustments through Bluetooth connectivity to the Bosch Toolbox app. This tool is ideal for hammer drilling and chiselling in concrete, brick, and stone. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). For maximum power, use ProCORE18V ≥ 8.0 Ah.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
