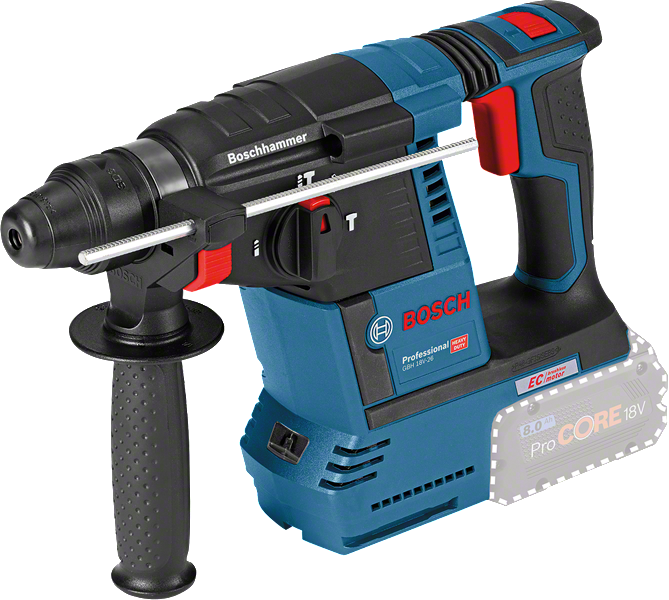

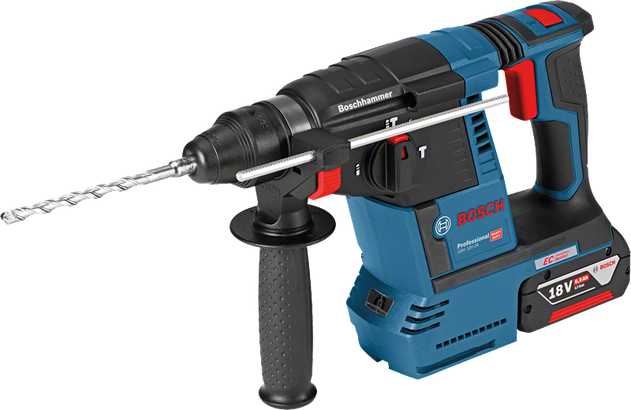

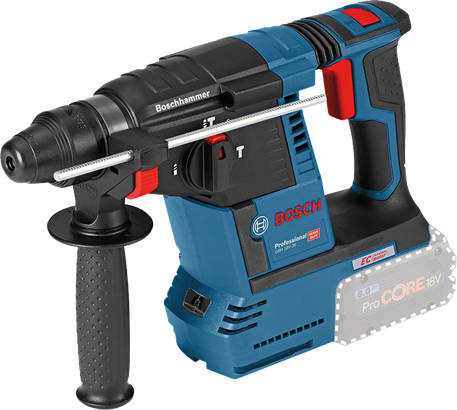

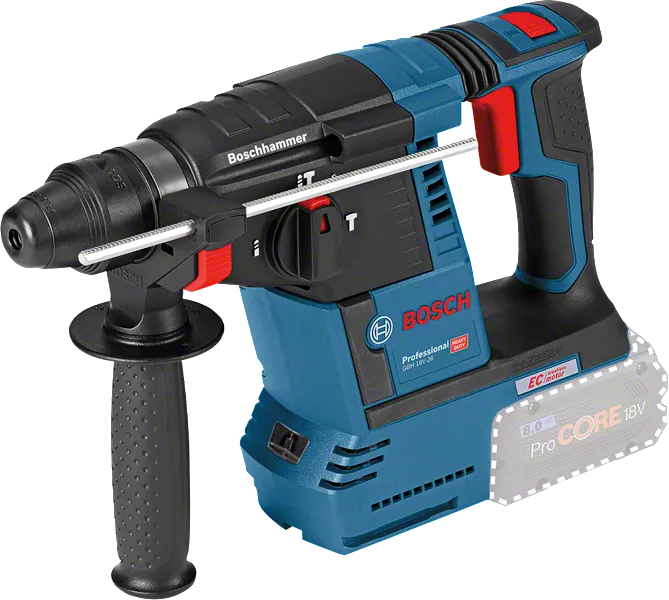

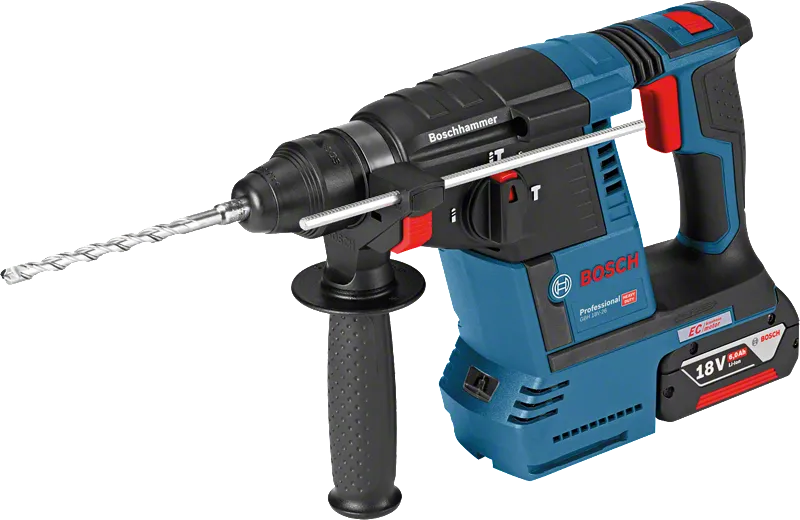

Cordless Rotary Hammer with SDS plus
GBH 18V-26 Professional

in cardboard box with auxiliary handle

Universal rotary hammer in the SDS plus cordless category

Choose product variation:

Print

Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

Max. impact energy 2.6 J
Impact rate at rated speed 0 – 4,350 bpm
Rated speed 0 – 980 rpm
Battery voltage 18 V
Tool holder SDS plus

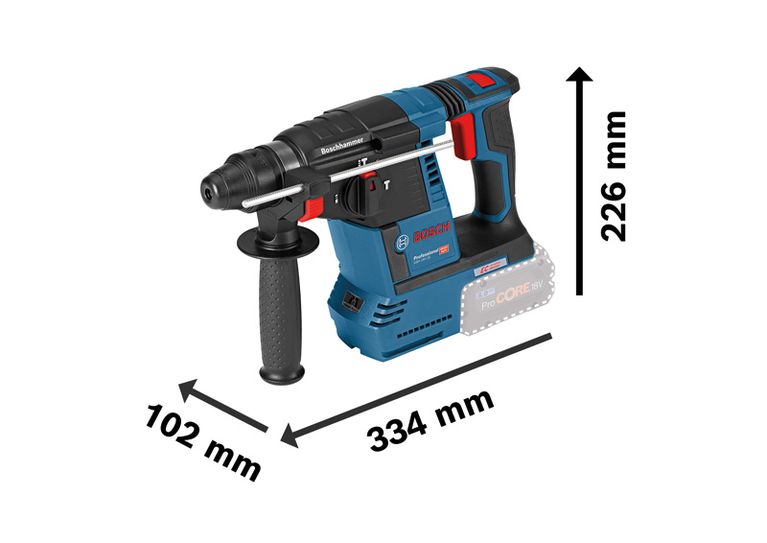

Tool dimensions (length) 347 mm
Packaging dimensions (width x length x height) 251 x 398 x 112 mm
Drilling range
Drilling dia. concrete, hammer drill bits, from 4 mm
Drilling dia. concrete, hammer drill bits, up to 26 mm
Drilling dia. in concrete with hammer drill bits 4 – 26 mm
Opt. app. range in concrete with hammer drill bits 8 – 16 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information
Sound pressure level 91 dB(A)
Sound power level 102 dB(A)
Uncertainty K 3 dB

Advantages

Universal rotary hammer in the SDS plus cordless category

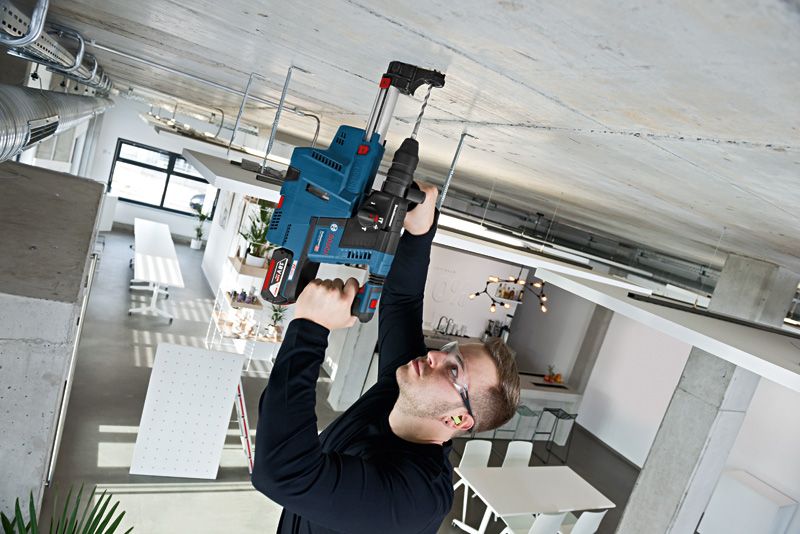

  • Optional GDE 18V-16 Professional dust extraction unit integrates with the hammer for a self-contained HEPA dust solution
  • KickBack Control and Electronic Precision Control for better tool handling and increased user protection
  • Delivers 2.6 J of impact energy for fast drilling and high chisel removal performance

Functions

Combi hammer with chisel function No rotary motion; impact effect only
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles

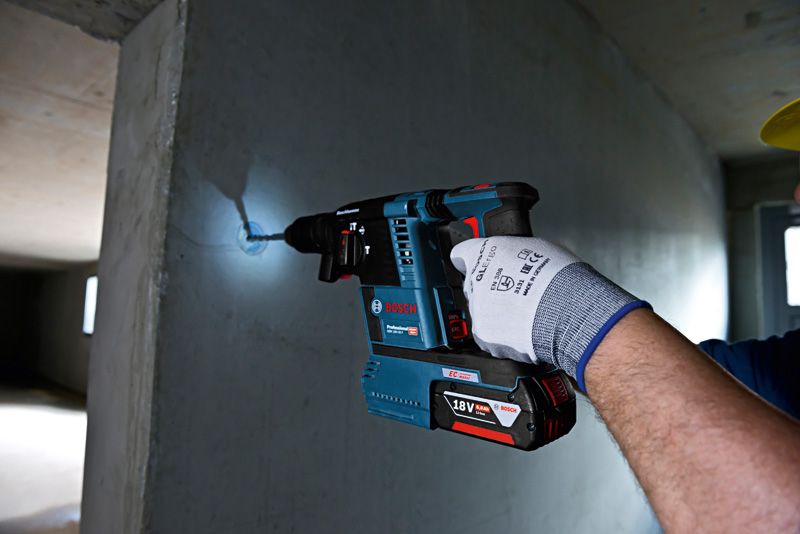

 Illuminating of the work area
Battery charge level indicator shows the level of remaining battery charge
Easy and precise control of the RPM thanks to variable speed
Best work results with constant speed thanks to electronic regulation of speed - even under load
Long motor lifetime Long motor lifetime because motor shuts off when overloaded, overheated or blocked
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Optimal power transmission for small hammers
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Optimal protection of the cells against excessive heat due to special, heat conductive housing
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Enhanced tool control for superior results in delicate materials even with impact - thanks to performance adjustment with slow ramp-up and reduced maximum performance
Longer motor life - more runtime - more power thanks to brushless motor
Convenient adjustment of the chisel position enabling you to adapt it to each work situation

Scope of supply

in cardboard box with auxiliary handle

Order number: 0 611 909 000

Selected version

Price includes:

  • Auxiliary handle 2 602 025 141
  • Cardboard box
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth

* Battery and charger not included

Order number: 0 615 990 J9H
