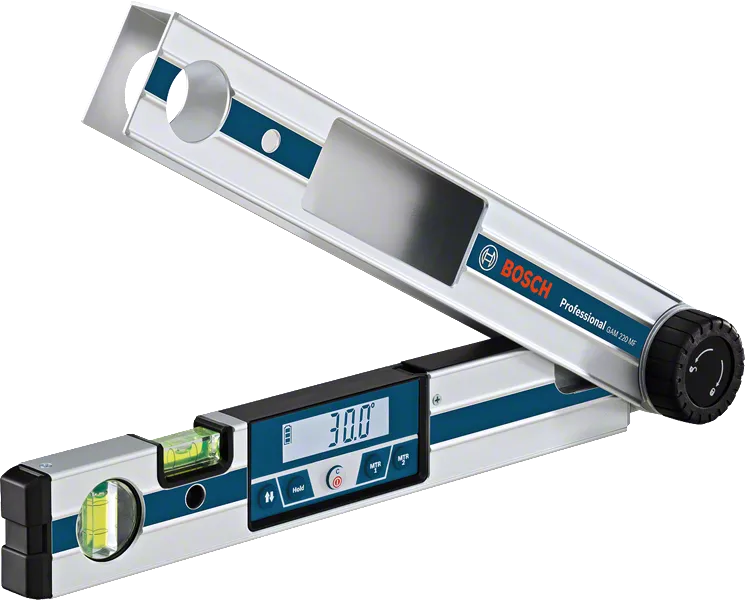

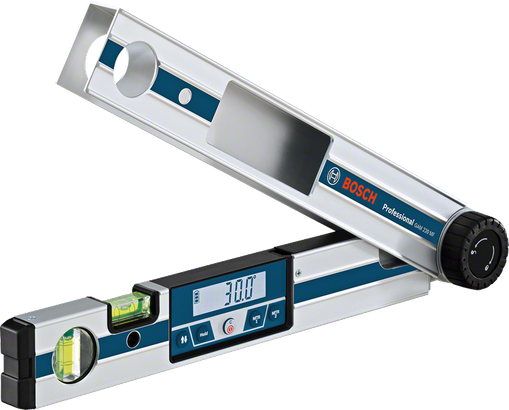

Angle Measurer
GAM 220 MF Professional

with 4 x battery (AA), accessory set

Fast calculation of mitre angles

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data
Measurement range 0 – 220°
Measurement accuracy, angles ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80 h
Automatic deactivation, approx. 30 min

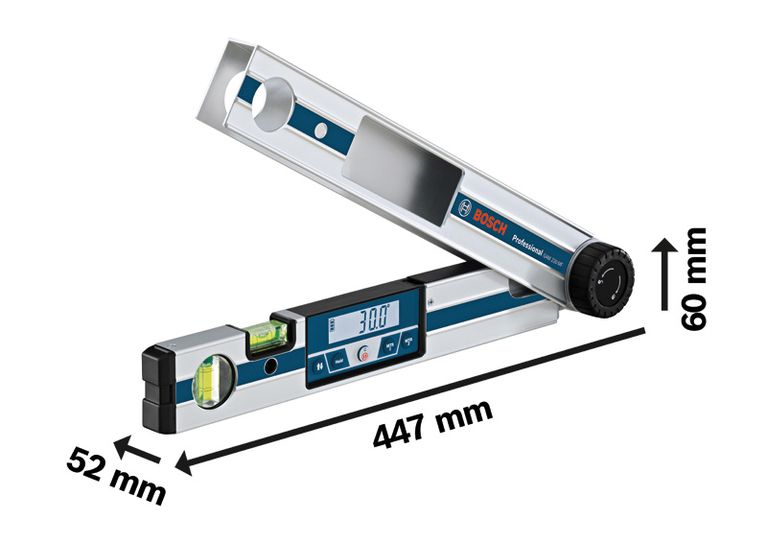

Arm length 40 cm
Weight, approx. 1.2 kg

Advantages

Fast calculation of mitre angles

  • Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
  • Automatic calculation of single and double mitre angles without any other tools

Functions

MTR1/MTR2 Automatic calculation of mitre angles at the press of a button
Hold Hold function for intermediate storage of measured values
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Flip Display Rotating readout on display
IP protection 54 Dust and splash protection IP54
Display lighting Illuminated display
Measuring range of angles 0°–220° Angle measuring range 0°-220°
Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°

Prices / Package contents


with 4 x battery (AA), accessory set

Order number: 0 601 076 600

Selected version

Price includes:

  • Leg extension
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

Downloads

Product data sheet

GAM 220 MF Professional
(approx. 1.5 MB)

Download
User Manual

GAM 220 MF (PDF 22.6 MB)

Download
