DUST SOLUTIONS FOR DRILLING CONCRETE

DUST SOLUTIONS FOR DRILLING CONCRETE

Bosch Professional Dust Control

Drilling in concrete, stone, brick

When you drill into concrete or other mineral materials containing quartz, such as brick or stone, you create large amounts of silica dust. One of the most common and hazardous dust types on the jobsite, silica dust particles can be 100 times smaller than a grain of sand. Many workers breathe it in without realizing. This can lead to major health issues in the long-term such as silicosis (the scarring and stiffening of the lungs).

The best way to control dust is to stop it from getting into the air. That's why we designed our drilling dust attachments to:

  • Fit seamlessly on your drill or rotary hammer
  • Don't get in the way of work
  • Capture dust at the drilling point

Discover our full range of dust attachments for drilling concrete.

Choose your application

Here's an easy way to find the right dust solution for your concrete drilling needs.

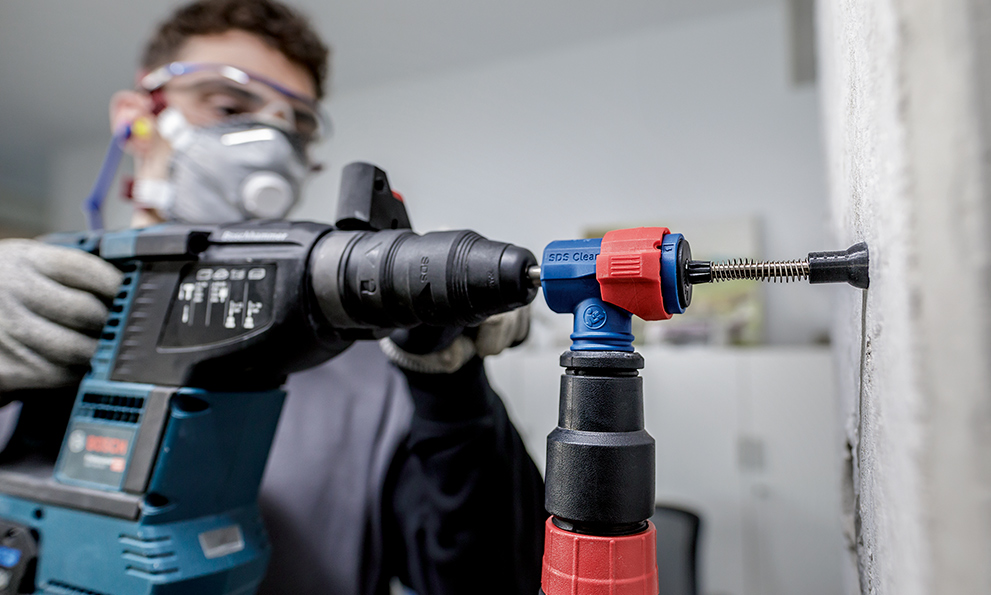

DRILLING CONCRETE UP TO ⌀ 16MM

Fast, precise, clean.

Our dust solutions extract dust at the drilling point or even within the hole, so dust is captured at the point of creation.

  • Optimised for walls, ceilings, and tight spaces.
  • Excellent capture rate: Suitable for large amounts of dust.
  • Captures dust at the drilling point.
  • Lightweight design barely adds weight to your tool.

Drilling diameter max.
16 mm
16 mm
Maximum drilling depth
120 mm
120 mm
Weight
0.52 kg
0.52 kg
Compatible with
all 2 and 3 kg Bosch SDS plus hammers with 50 mm collar Find all compatible products
many Bosch impact drills Find all compatible products
ALWAYS USE THE ATTACHMENT WITH A DUST EXTRACTOR
Find the right Dust Extractor
ALWAYS USE THE ATTACHMENT WITH A DUST EXTRACTOR

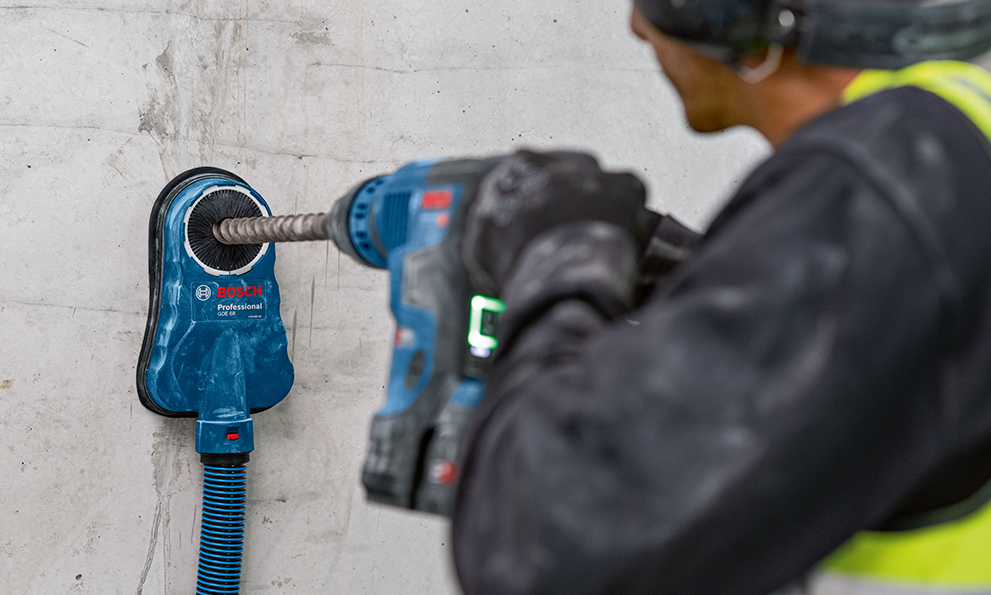

DRILLING CONCRETE UP TO ⌀ 162MM
The simplest solution: Dust wall attachments.

Switch on your dust extractor, position this dust wall attachment on the wall and then let go – it will stay in place on its own. This universal design is compatible with all drilling tools also from other brands.

  • Compatible with all drilling tools.
  • Perfect for large drilling diameters up to 162mm.
  • Captures dust at the drilling point.
  • No extra weight on your tools

Drilling diameter max.
68 mm
162 mm
Weight
0.325 kg
0.5 kg
Compatible with
ALWAYS USE THE ATTACHMENT WITH A DUST EXTRACTOR
Find the right Dust Extractor
ALWAYS USE THE ATTACHMENT WITH A DUST EXTRACTOR

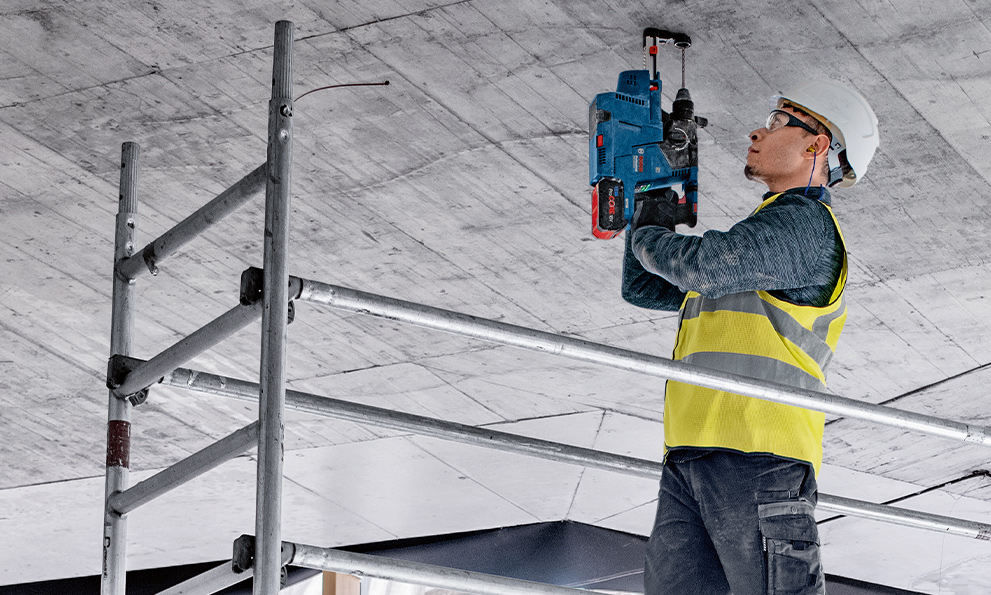

DRILLING CONCRETE WITH AN INTEGRATED DUST EXTRACTOR UP TO ⌀ 28MM
More freedom of movement.

This slide-on dust extractor can be integrated directly onto your rotary hammer.

  • Totally cordless: No hose or cables.
  • HEPA filter removes 99.97% of particles larger than 0.3μm.
  • Removable dust container for easy disposal.
Note: HEPA refers solely to the filtration standard. This does not mean the dust extractor has a L, M, or H-Class rating and may not be enough to achieve compliance.

GDE 18V-26 D
Drilling diameter max.
16 mm
26 mm
Maximum drilling depth
100 mm
100 mm
Weight
1.2 kg
1.7 kg
Compatible with

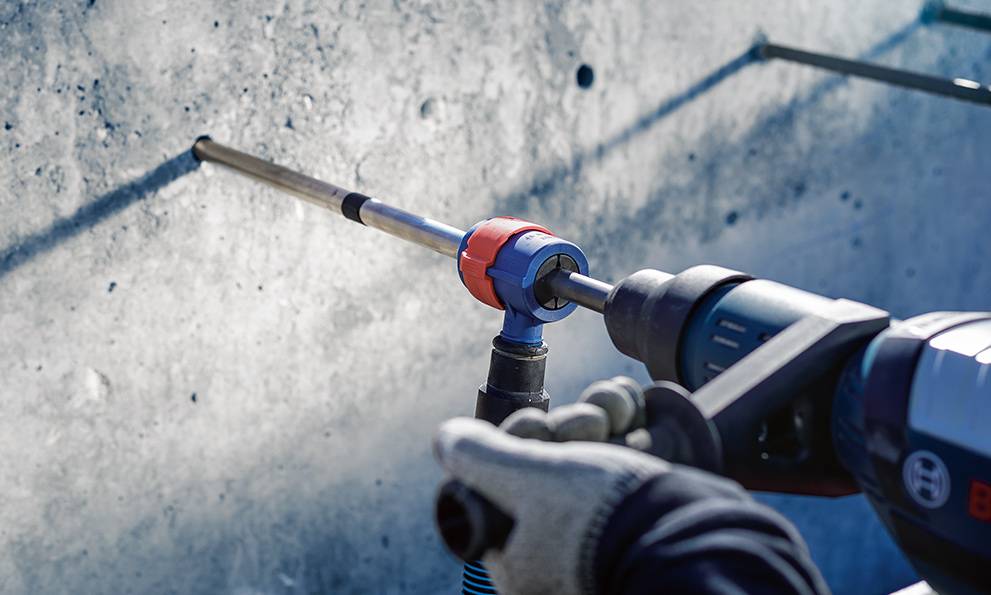

DRILLING CONCRETE FOR CHEMICAL ANCHORING UP TO ⌀32MM
Save time with dust extraction drill bits.

Our drill bits drill and clean holes at the same time, so you can install chemical anchors in less time.

  • Highly efficient dust reduction: No extra cleaning required before chemical anchoring.
  • Full carbide head: 4-cutter tip made from the hardest metal for drilling reinforced concrete.
  • Easy to clean when clogged.

EXPERT SDS Clean plus-8X Hammer Drill Bit Set
EXPERT SDS Clean Adapter for Drilling
Drilling Diameter Range
6mm to 20mm
5mm to 16mm
Drilling Depth
200mm or 400mm
-
Interface
SDS Plus
SDS Plus
Compatible with
SDS PLUS HAMMER DRILLS
SDS plus Drill BitS and SDS PLUS HAMMER DRILLS
ALWAYS USE THE ATTACHMENT WITH A DUST EXTRACTOR
Find the right Dust Extractor
ALWAYS USE THE ATTACHMENT WITH A DUST EXTRACTOR
