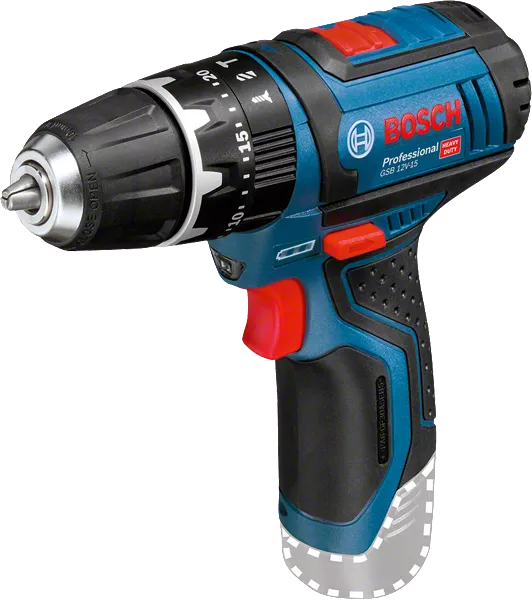

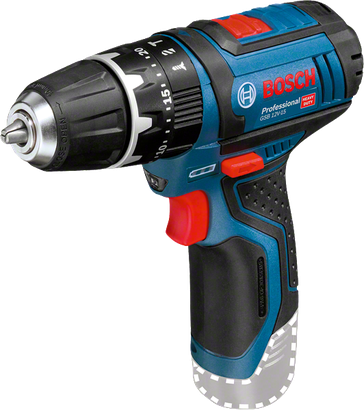

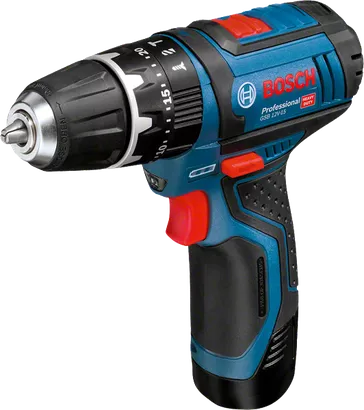

Cordless Combi
GSB 12V-15 Professional

in cardboard box

The shortest 12 volt powerhouse with impact drilling function

Print

The Professional 12V System.
Compact performance. Maximum freedom.
Discover more!
More

Technical data

The most important data

Torque (soft/hard/max.) 15/30/- Nm
No-load speed (1st gear / 2nd gear) 0 – 380 / 0 – 1,300 rpm
Max. impact rate 19,500 bpm
Chuck capacity, min./max. 1 / 10 mm
Battery voltage 12 V
Torque settings 20+1
Tool dimensions (height) 175 mm
Packaging dimensions (width x length x height) 220 x 335 x 80 mm
Clamping range, min. 0 mm
Clamping range, max. 0 mm
Spindle collar diameter 0 mm
Weight incl. battery 1 kg
Drilling diameter
Max. drilling diameter in wood 19 mm
Max. drilling diameter in steel 10 mm
Max. drilling diameter in masonry 10 mm
Screw diameter
Max. screw diameter 7 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 93 dB(A)
Sound power level 82 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in masonry
Vibration emission value ah 10.5 m/s²
Uncertainty K 1.5 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The shortest 12 volt powerhouse with impact drilling function

  • At 189 mm it has the shortest design in its class for optimum handling, especially when performing drilling and screwdriving applications overhead and in tight spaces
  • Newly developed 2-speed planetary gearbox for powerful screwdriving and drilling applications in wood and metal, and impact drilling in masonry
  • Professional quality 10 mm Auto-Lock drill chuck

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Convenient change of accessories Keyless chuck opens and closes easily
Autolock chuck 1.0 - 10.0 mm
Voltage 12 Volt
10.8 & 12 Volt 100% compatible All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Comfortable handling of the tool thanks to softgrip
Icon

Prices / Package contents


in cardboard box

Order number: 0 601 9B6 901

Selected version

Price includes:

  • Cardboard box
  • 1/2 L-BOXX inlay for tool and charger 1 600 A00 2UV

* Battery and charger not included
