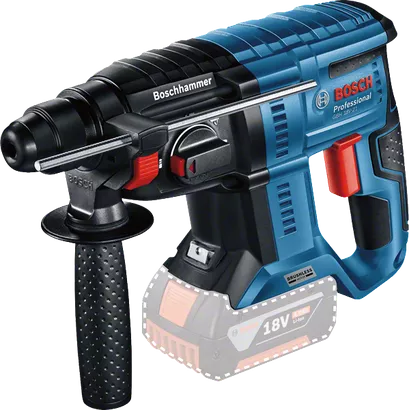

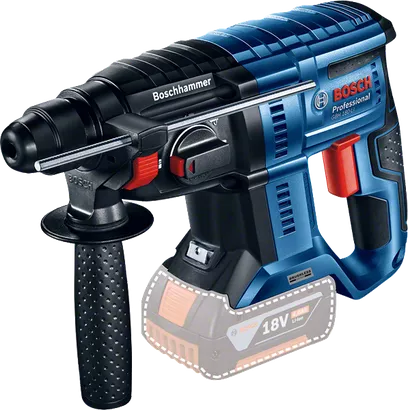

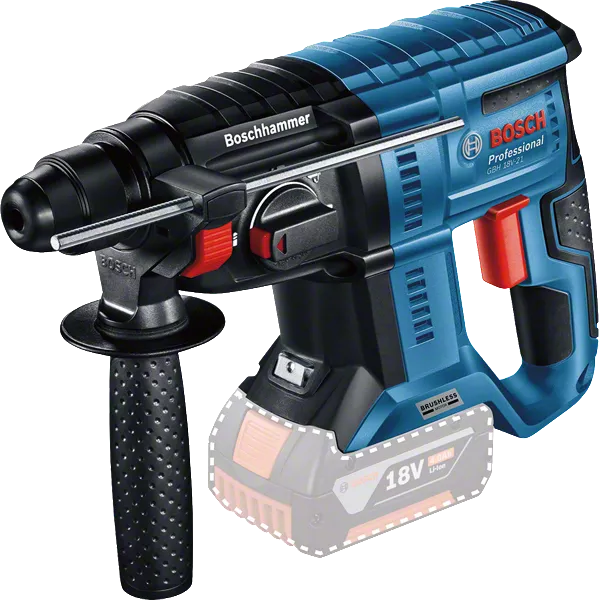

Cordless Rotary Hammer with SDS plus
GBH 18V-21 Professional

in cardboard box with depth stop

Bosch quality within reach – cordless comfort and brushless power

Choose product variation:

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Max. impact energy 2 J
Impact rate at rated speed 0 – 5,100 bpm
Rated speed 0 – 1,800 rpm
Battery voltage 18 V
Weight excl. battery 2.4 kg
Tool holder SDS plus
Tool dimensions (length) 325 mm
Drilling range
Drilling dia. in concrete with ham. dr. bits, from 4 mm
Drilling dia. in concrete with ham. dr. bits, to 21 mm
Drilling dia. in concrete with hammer drill bits 4 - 21 mm
Opt. app. range in concrete with hammer drill bits 6 - 10 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Sound pressure level 90 dB(A)
Sound power level 101 dB(A)
Uncertainty K 3 dB
Hammer drilling in concrete
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 7 m/s²
Uncertainty K 1.5 m/s²

Advantages

Bosch quality within reach – cordless comfort and brushless power

  • Powerful impact system with 2.0 J; three modes (drilling, hammer drilling, chiselling) ensure versatile use
  • Brushless motor reduces the need for maintenance and improves runtime per battery charge, less downtime and increased longevity
  • Good power-to-weight ratio with only 2.4 kg in weight; even capable enough for light chiselling applications

Functions

Longer motor life - more runtime - more power thanks to brushless motor
SDS plus toolholder Optimum power transfer. For Rotary Hammers in the 2 – 4kg class.
 Illuminating of the work area
Icon
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Combi hammer with chisel function No rotary motion; impact effect only
 No self-discharge, no memory effect and a higher energy density thanks to Li-ion battery technology
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Easy and precise control of the RPM thanks to variable speed
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Construction The professional power tools for construction from Bosch.

Scope of supply

in cardboard box with depth stop

Order number: 0 611 911 100

Selected version

Price includes:

  • Depth stop (spare part number 1 613 001 009)
  • Machine cloth (spare part number 1 619 200 413)
  • Cardboard box

* Battery and charger not included

Order number: 0 615 990 M5D
