PRO

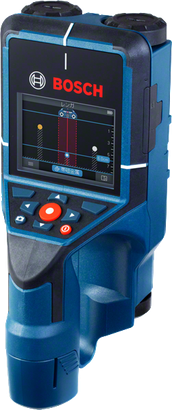

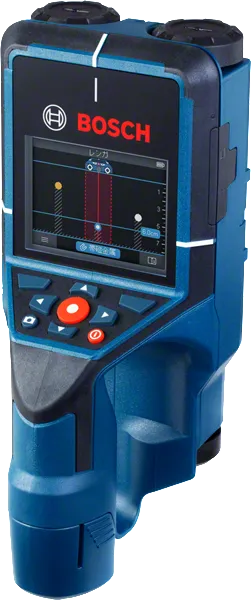

PRO D-tect 200 C
Detector
Order number 0.601.081.6K0
- More depth for better safety - Increased maximum detection depth to 200mm with object depth indication

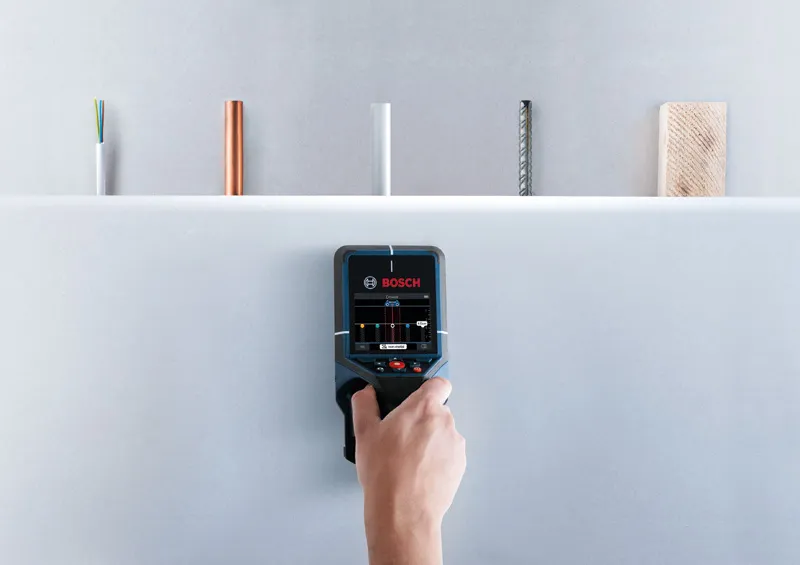

- All-round detection - Detection of all common objects, even in narrow spots with the unique spot mode
- See the unseen - Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI

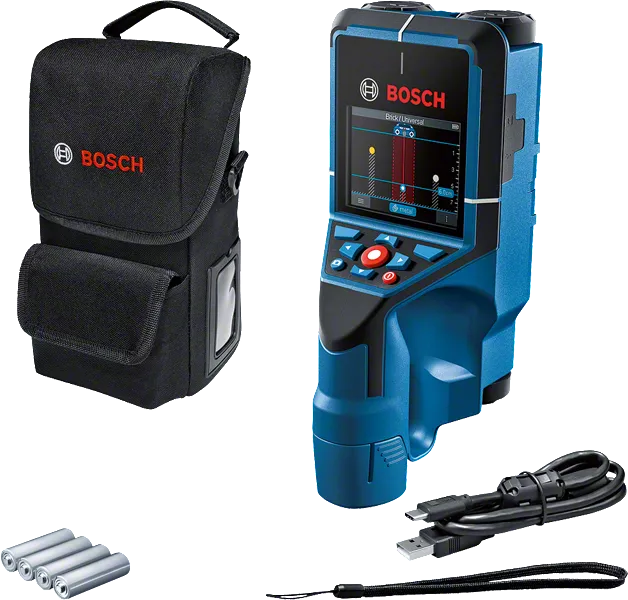

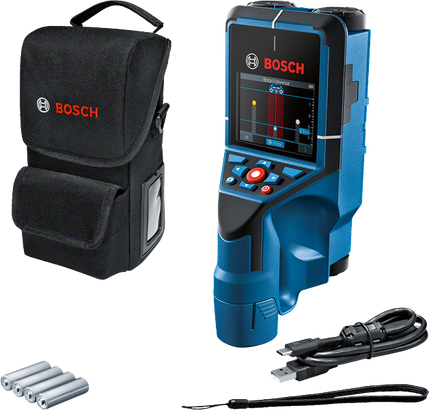

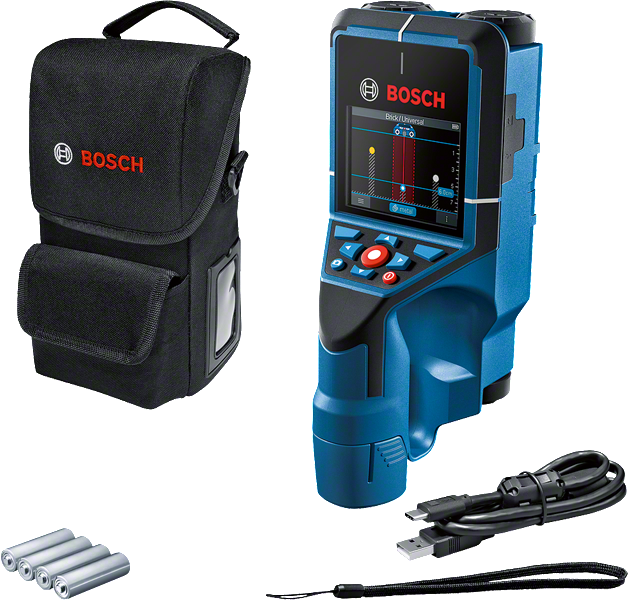

in cardboard box with 4 x battery (AA), adapter
0 601 081 6K0
PRO D-tect 200 C
Your Selection
in cardboard box with 4 x battery (AA), adapter
Order number: 0 601 081 6K0
Buy nowIncluded in this variant
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
Hand strap (spare part number 1 609 203 R97)
-
4 x 1.5 V LR6 battery (AA)
-
Cardboard box
-
Pouch
-
USB-C® CableOrder number: 1 600 A01 L6H
Technical data
The most important data
Bosch Radar Technology
yes
Detectable objects
live cables, non-live cables, magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), low-voltage & data cables (Three-phase power cables, cavities), Empty plastic pipes, water-filled plastic pipes, wooden substructures
Max. detection depth
200 mm
Detection depth, dry concrete, max.
200 mm
Detection depth, early age concrete, max.
60 mm
Detection depth, other wall types, max.
80 mm
Detection depth, magnetic metal, max.
200 mm
Detection depth, non-magnetic metal, max.
80 mm
Detection depth, live cables, max.
80 mm
Detection depth, wooden substructures, max.
38 mm
Accuracy*
± 5.0 mm
Views
Object view, Signal View, Signal View 2D, Spot view
Wall types
Panel Heating, Early age concrete, Concrete, Horizontal coring brick, Vertical coring brick, Brick/Universal, Drywall
Dust and splash protection
IP5X
Updatable
yes
Material identification
Non-magnetic metal, Non-metal material, Live object, Magnetic metal
Power supply
4 x 1.5 V LR6 (AA), 10.8 V Li-Ion battery, 12 V Li-Ion battery
Weight, approx.*
0.64 kg
Additional function
Leakage detection, Distance measurement
Packaging dimensions (width x length x height)
158 x 267 x 139 mm
Data transfer
Micro-SD Card, USB-C®
* You can find more information about the deviations in the following link:
PRO D-tect 200 C: Further information
Product Highlights

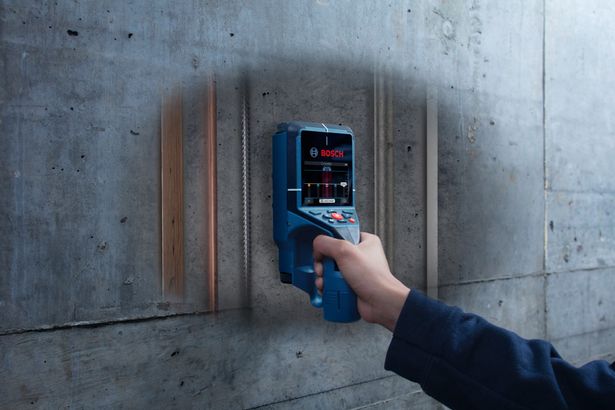

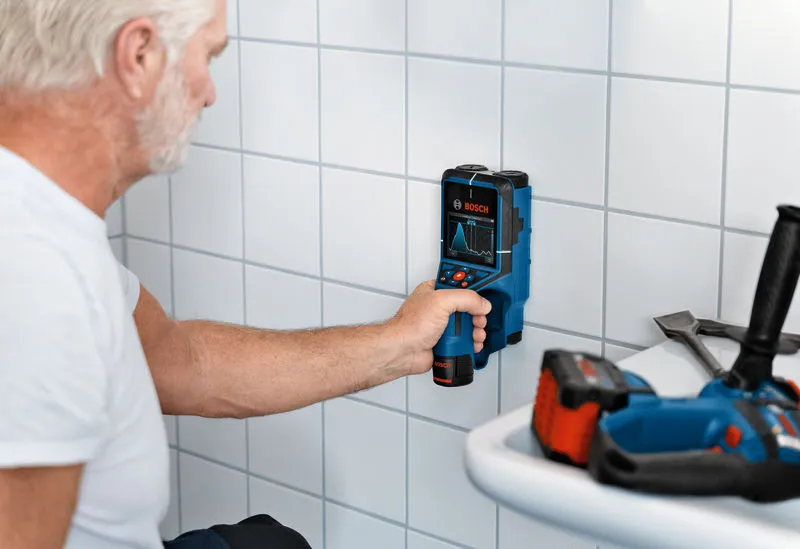

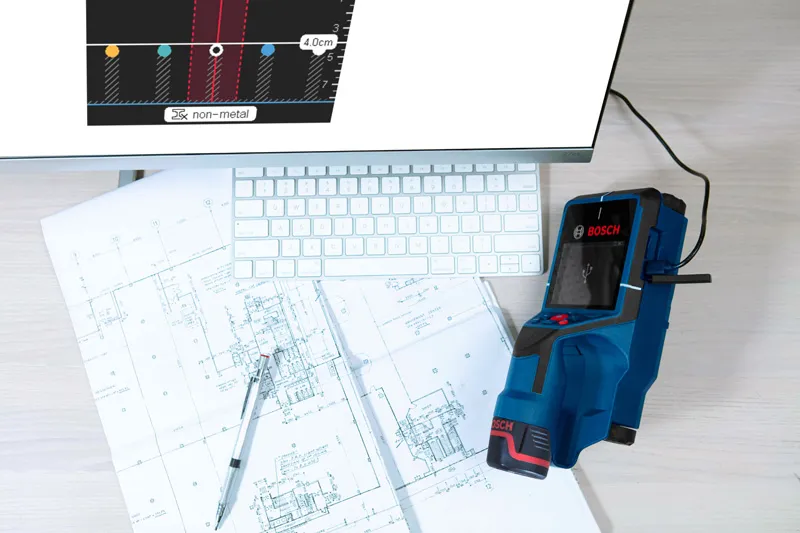

The D-tect 200 Professional detects all common objects and illustrates them clearly while making documentation easy. Equipped with Bosch Radar Technology and an improved HMI, it stands for safer and more precise detection. Multiple view options allow the ideal application for different situations, such as Spot View, that makes detection in hard-to-reach locations easier. The detector enables instant documentation which allows data to be transferred via USB-C or MicroSD-Card connection.
Equipment & Application

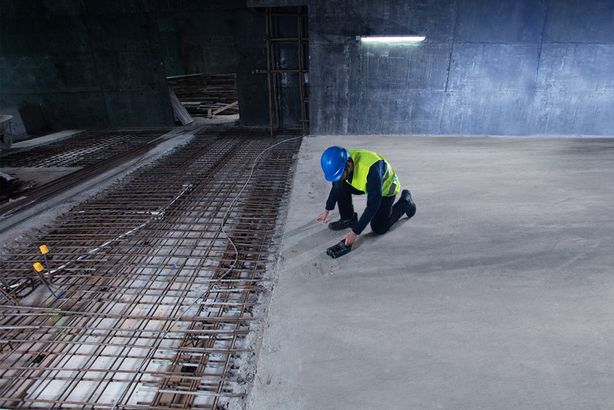

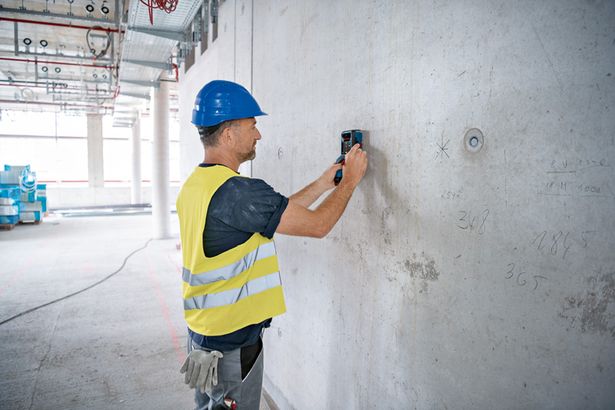

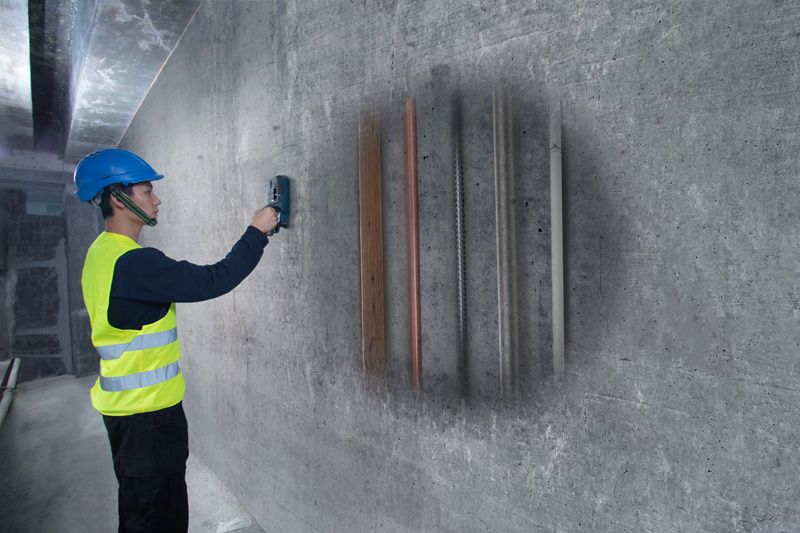

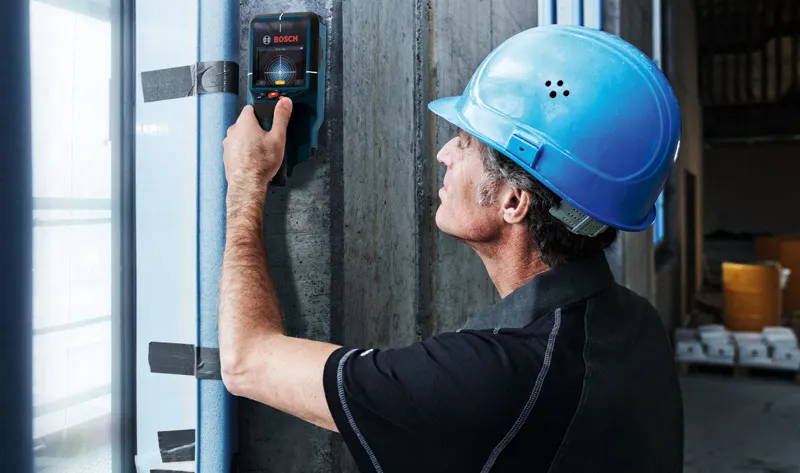

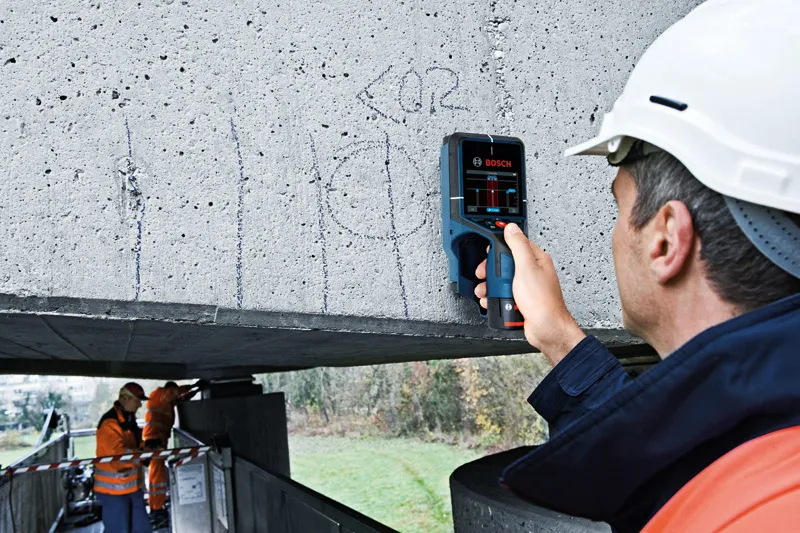

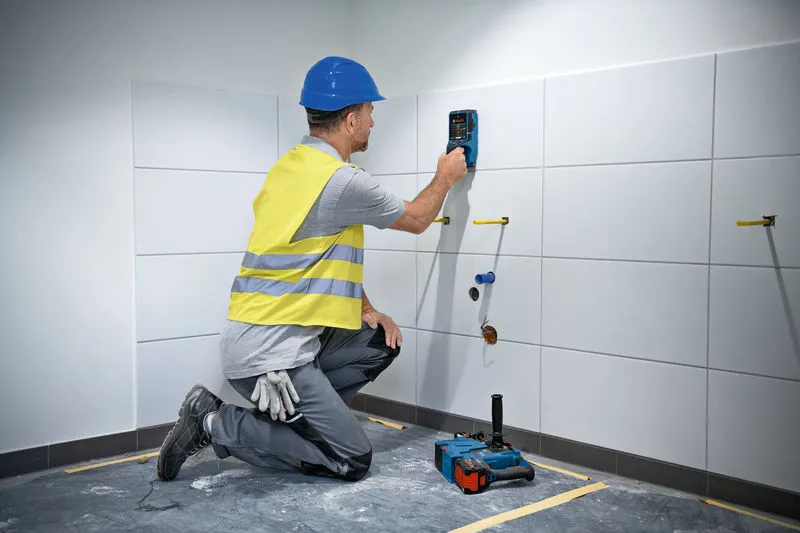

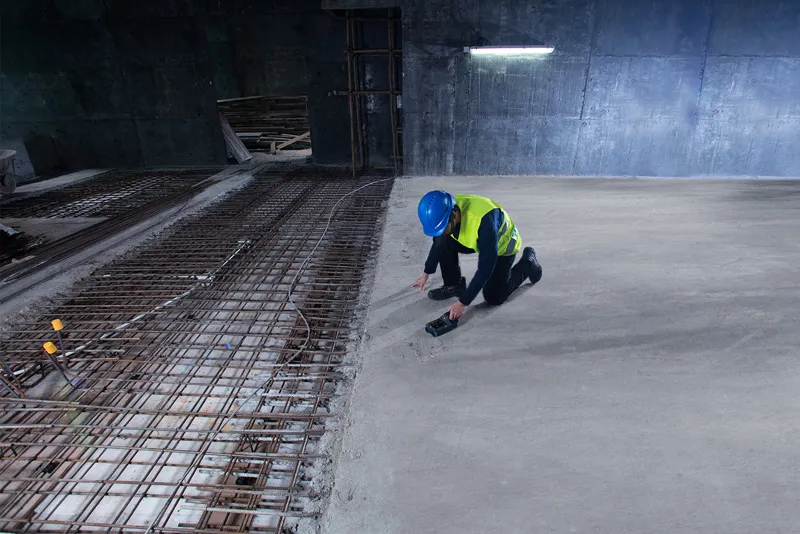

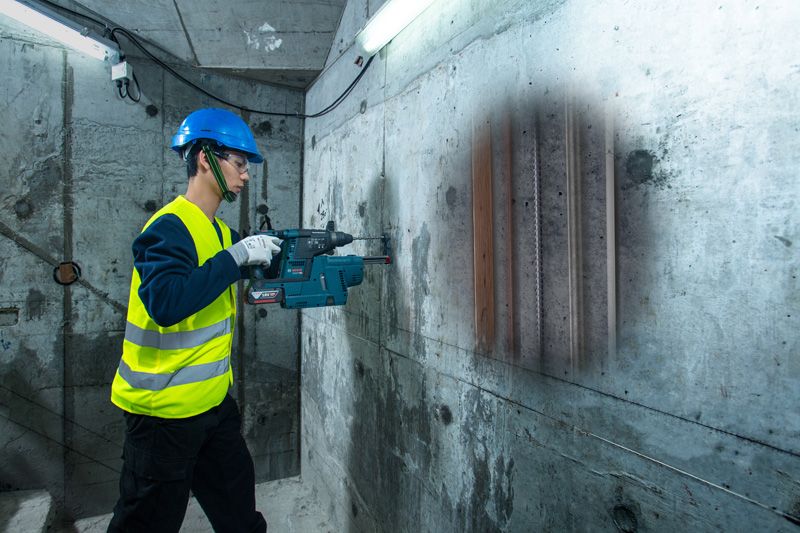

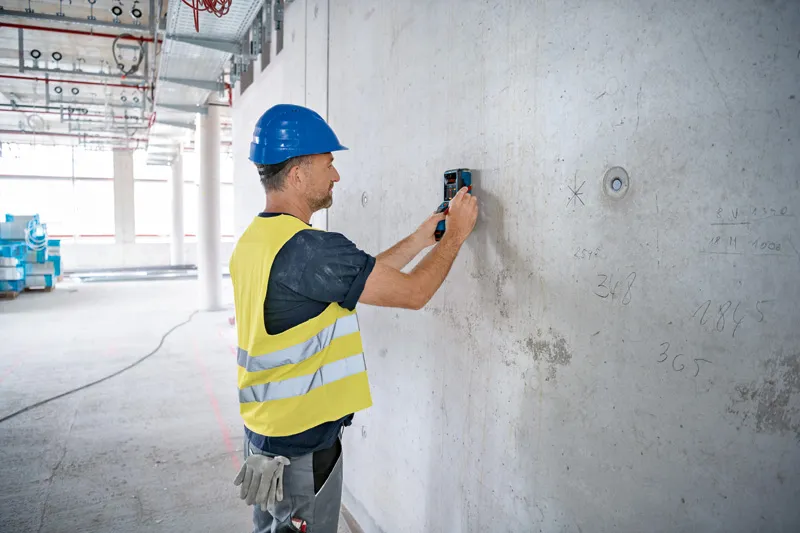

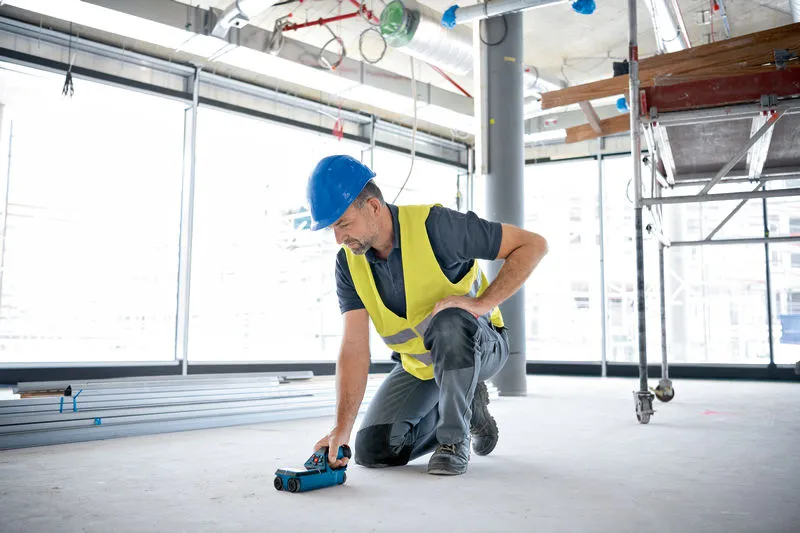

The D-tect 200 Professional supports all round detection, enabling safer construction work during drilling.
Additional Information

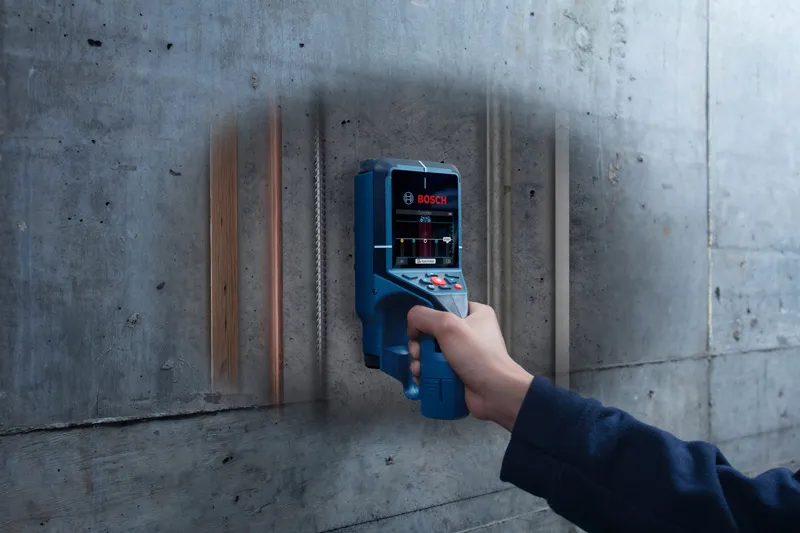

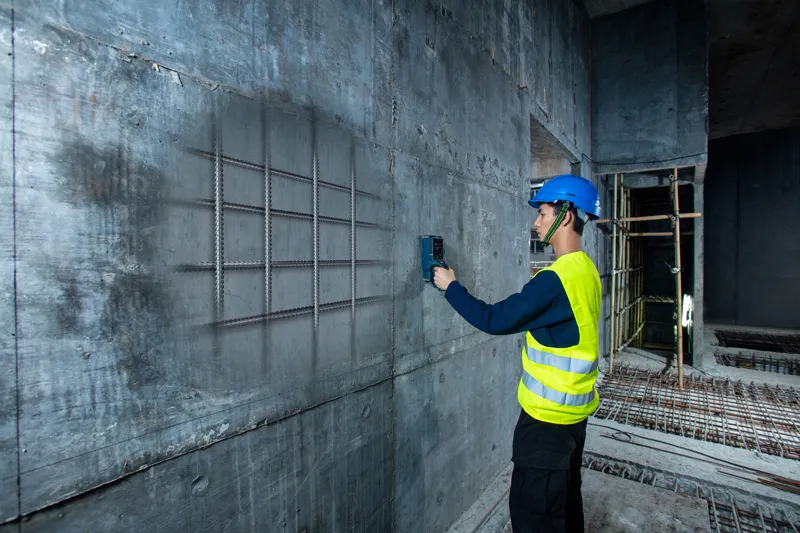

The D-tect 200 Professional detects objects in depths of up to 200 mm and indicates the object´s depth.
