Metal Drill Bits
![Object #200143952: 2608585864_bo_eco_p_f_1]( "Object #200143952: 2608585864_bo_eco_p_f_1")
![Object #200255119: Bosch_HSS_Point_Studio23138]( "Object #200255119: Bosch_HSS_Point_Studio23138")
HSS Twist Drill Bit Cobalt
For rotary drills/drivers
HSS Twist Drill Bit Cobalt provides long-lasting performance when drilling stainless steel
- Cobalt alloy and fully ground HSS provide wear resistance and heat protection
- Two cutters and two flutes remove chips quickly to make the bits last even longer
- Cylindrical shank compatible with three-jaw drill chucks
Materials
Select options
Diameter (D) mm
Select one option from the listed items below
Working length mm
Select one option from the listed items below
Total length mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Diameter (D) mm 7 options
Working length mm 7 options
Total length mm 7 options
Choose a pack size 1 Pcs
HSS Twist Drill Bit Cobalt
For rotary drills/drivers
Fits tools of most brands

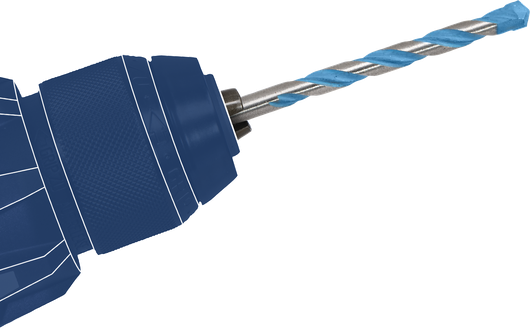

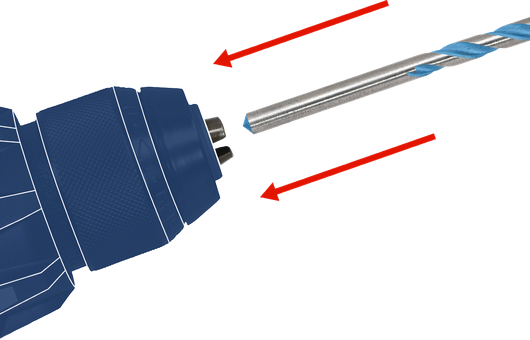

Cylindrical shank compatible with three-jaw drill chucks

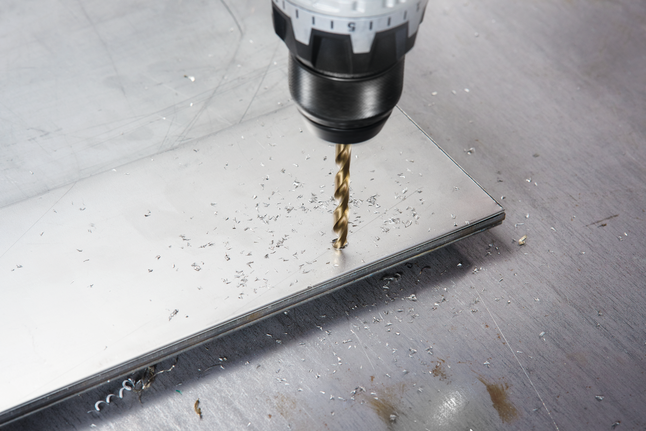

Long Lifetime when Drilling Stainless Steel
HSS Twist Drill Bit Cobalt provides long-lasting performance when drilling stainless steel
- Two cutters and two flutes remove chips quickly to make the bits last even longer
- Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8

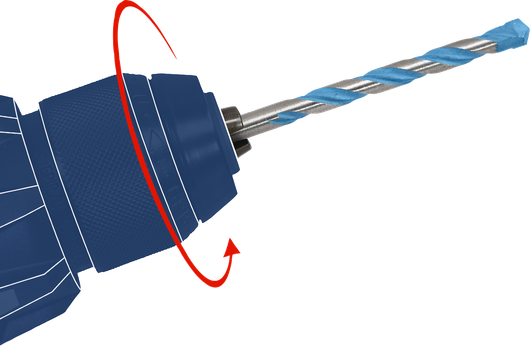

- Active cutting and perfect centring without wandering are achieved by the pointed split-point tip
View more
Product Options
Available product options: 7
|
Part number
|
Diameter (D) mm
|
Working length mm
|
Total length mm
|
Shank diameter (d) mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 588 338 | 3.00 | 33 | 61 | 3 | 1 Pcs | Find a local dealer | |
| 2 608 588 342 | 5.00 | 52 | 86 | 5 | 1 Pcs | Find a local dealer | |
| 2 608 588 344 | 6.00 | 57 | 93 | 6 | 1 Pcs | Find a local dealer | |
| 2 608 588 345 | 6.50 | 63 | 101 | 6.5 | 1 Pcs | Find a local dealer | |
| 2 608 588 346 | 7.00 | 69 | 109 | 7 | 1 Pcs | Find a local dealer | |
| 2 608 588 350 | 9.00 | 81 | 125 | 9 | 1 Pcs | Find a local dealer | |
| 2 608 588 358 | 13.00 | 101 | 151 | 13 | 1 Pcs | Find a local dealer |
out of products

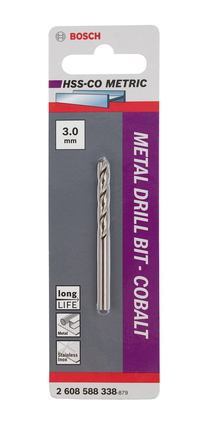

Metal drill bits HSS-Co, DIN 338
Part number 2608588338
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
3.00
Working length mm
33
Total length mm
61
Shank diameter (d) mm
3
Metal drill bits HSS-Co, DIN 338
Part number 2608588342
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
5.00
Working length mm
52
Total length mm
86
Shank diameter (d) mm
5
Metal drill bits HSS-Co, DIN 338
Part number 2608588344
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
6.00
Working length mm
57
Total length mm
93
Shank diameter (d) mm
6
Metal drill bits HSS-Co, DIN 338
Part number 2608588345
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
6.50
Working length mm
63
Total length mm
101
Shank diameter (d) mm
6.5
Metal drill bits HSS-Co, DIN 338
Part number 2608588346
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
7.00
Working length mm
69
Total length mm
109
Shank diameter (d) mm
7
Metal drill bits HSS-Co, DIN 338
Part number 2608588350
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
9.00
Working length mm
81
Total length mm
125
Shank diameter (d) mm
9

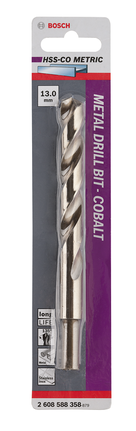

Metal drill bits HSS-Co, DIN 338
Part number 2608588358
Packaging type
Combined cardboard / plastic packaging, shrink-wrapped card, with Euro hole
Pack quantity
1 Pcs
Details
Diameter (D) mm
13.00
Working length mm
101
Total length mm
151
Shank diameter (d) mm
13
