Masonry & Concrete Drill Bits
EXPERT

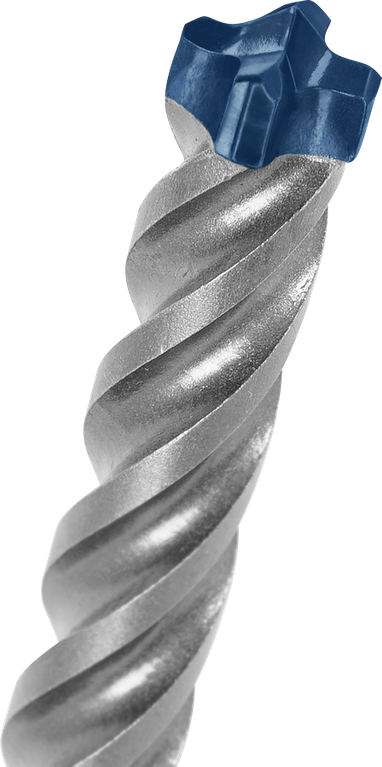

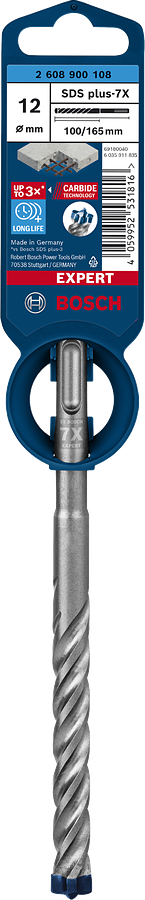

Bosch EXPERT SDS plus-7X Hammer Drill Bit 12 x 165 mm.
Bosch SDS plus-7X 12 mm hammer drill bit

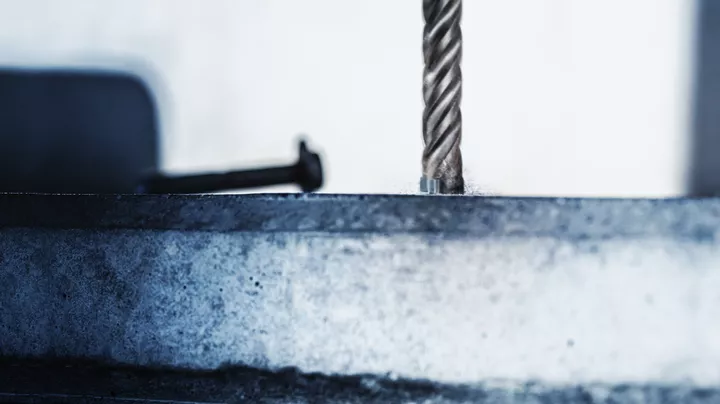

Drill bit boring into a metal surface, screw lying nearby.

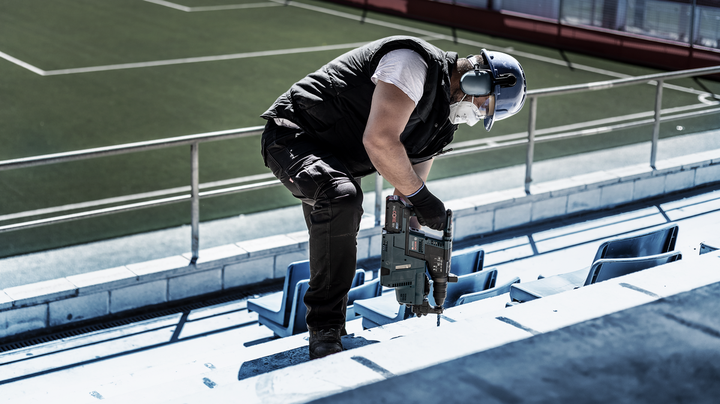

Worker wearing safety equipment drills into concrete steps at a sports stadium.
Worker wearing safety equipment drills into concrete floor with a rotary hammer.
Person wearing safety equipment drills into concrete steps.
Bosch EXPERT SDS plus-7X Hammer Drill Bit 12 x 165 mm.
Bosch SDS plus-7X 12 mm hammer drill bit

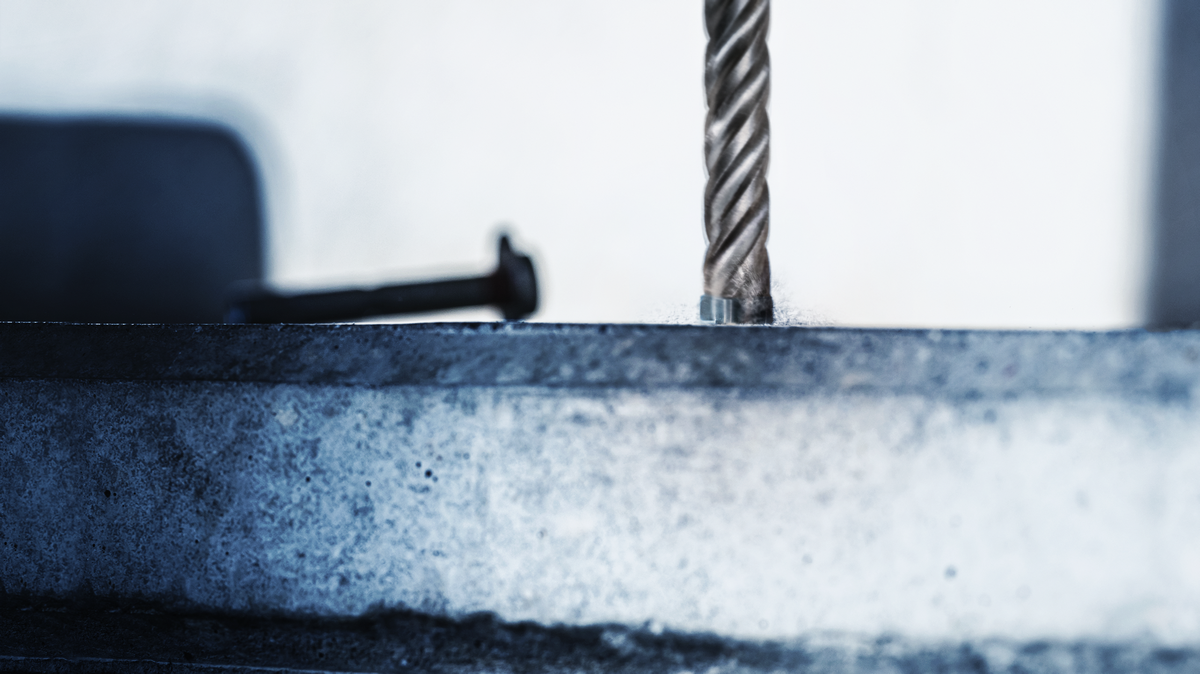

Drill bit boring into a metal surface, screw lying nearby.

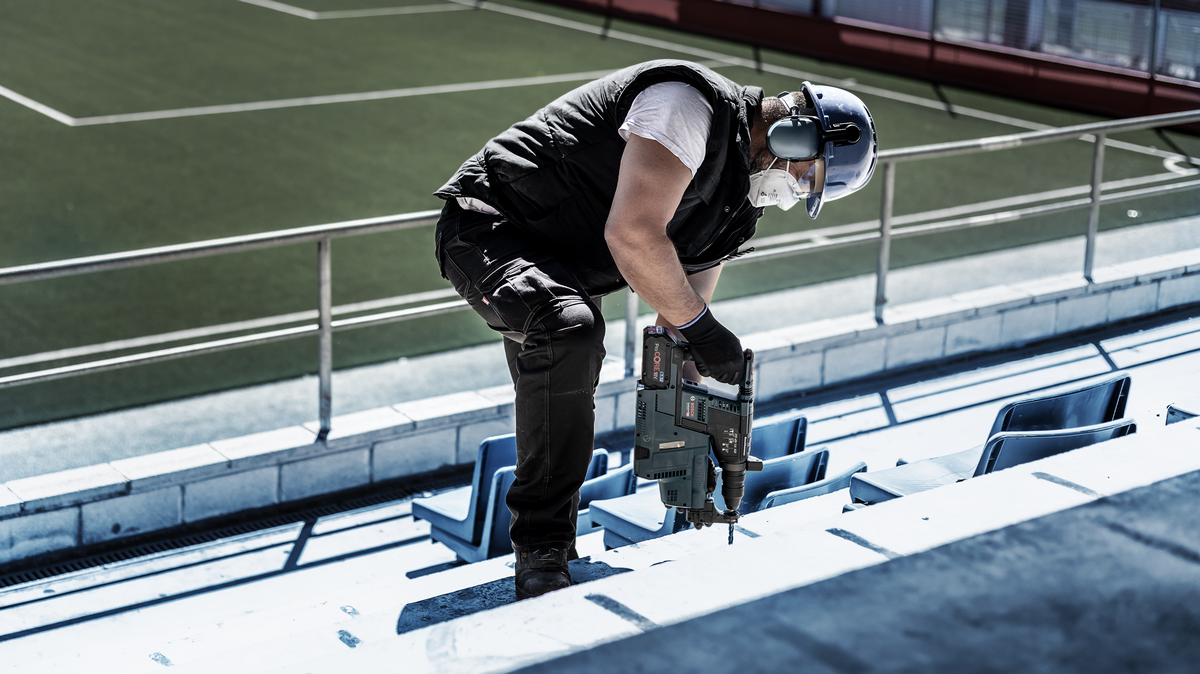

Worker wearing safety equipment drills into concrete steps at a sports stadium.

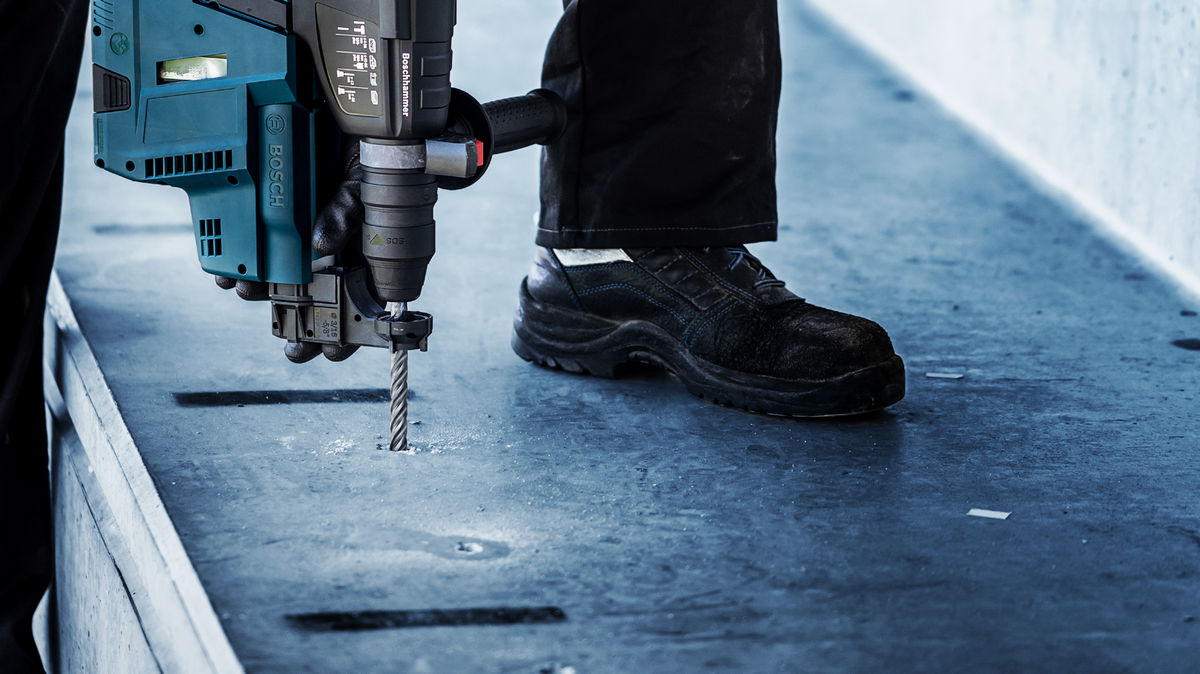

Worker wearing safety equipment drills into concrete floor with a rotary hammer.

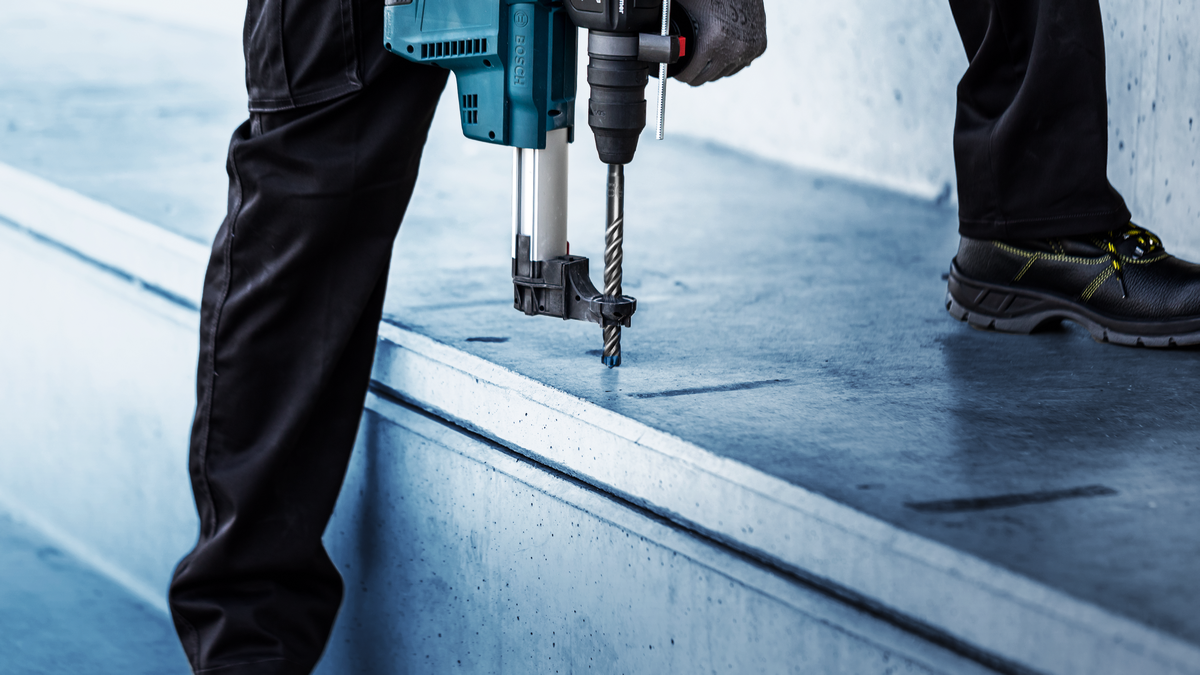

Person wearing safety equipment drills into concrete steps.
EXPERT SDS plus-7X

EXPERT SDS plus-7X Hammer Drill Bit

For rotary hammers

Triple long life

Lasts up to 3x longer than Bosch SDS plus-3 Drill Bit

Test results
  • Long Life drilling reinforced concrete
  • Exceptionally durable drill bit tip with Bosch Carbide Technology
  • Punch through reinforced concrete with a 4-cutter full carbide head
  • Fits all SDS plus rotary hammers

Materials

Soft stone
Hard stone
Concrete
Reinforced concrete
Concrete building block

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 24 options

Working length mm 9 options

Total length mm 11 options

Choose a pack size 4 options

Available product options (140)
EXPERT SDS plus-7X Hammer Drill Bit

Long Life drilling reinforced concrete

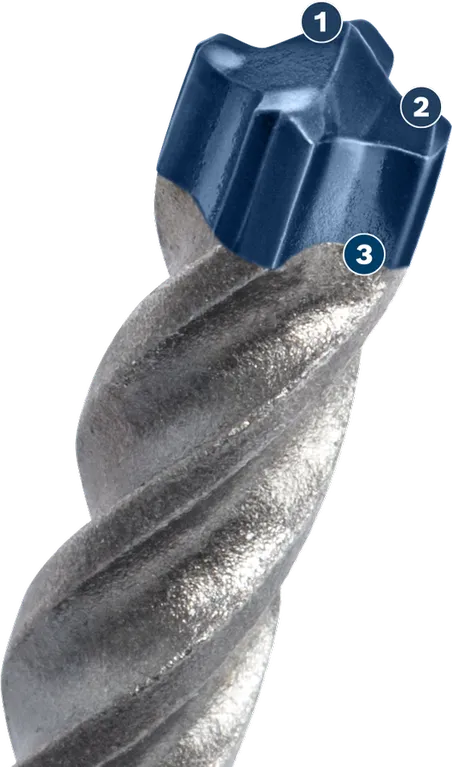

Bosch EXPERT SDS plus-7X Hammer Drill Bit with carbide tip.
  • 1

    Exceptionally durable drill bit tip with Bosch Carbide Technology

  • 2

    Punch through reinforced concrete with a 4-cutter full carbide head

  • 3

    Highly resistant drill tip connection thanks to Bosch’s special welding process

Carbide technology
For rotary hammers

Fits tools of most brands

SDS-plus drill bit aligns with a rotary hammer chuck for tool attachment.
Closeup of a rotary hammer chuck holding a spiral drill bit.
Rotary hammer drill with a spiral bit attached.

Fits all SDS plus rotary hammers

EXPERT
Advantage

Drill Concrete Like an Expert

EXPERT SDS plus-7X for Long Life Drilling Reinforced Concrete

Drilling through reinforced concrete is a tough job, and it has traditionally taken its toll on drill bits. Regular two-cutter bits get stuck in rebar and they eventually break. The Full Carbide Head on the EXPERT SDS plus-7X is an advanced 4-cutter design made from a single piece of the toughest metal: It doesn’t jam and presents no weakness on impact.

View more
Person wearing safety equipment drills into concrete steps.

Product Options

Available product options: 140

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 900 055 3.50 50 115 1 Pcs Find a local dealer
2 608 900 056 3.50 100 165 1 Pcs Find a local dealer
2 608 900 057 4.00 50 115 1 Pcs Buy now
2 608 900 058 4.00 100 165 1 Pcs Find a local dealer
2 608 900 059 5.00 50 115 1 Pcs Find a local dealer
2 608 900 060 5.00 100 165 1 Pcs Buy now
2 608 900 061 5.00 150 215 1 Pcs Find a local dealer
2 608 900 062 5.00 200 265 1 Pcs Find a local dealer
2 608 900 063 5.00 250 315 1 Pcs Find a local dealer
2 608 900 064 5.00 400 465 1 Pcs Find a local dealer
2 608 900 065 5.50 50 115 1 Pcs Buy now
2 608 900 066 5.50 100 165 1 Pcs Buy now
2 608 900 067 5.50 150 215 1 Pcs Find a local dealer
2 608 900 068 5.50 200 265 1 Pcs Find a local dealer
2 608 900 069 5.50 250 315 1 Pcs Find a local dealer
2 608 900 070 5.50 400 465 1 Pcs Find a local dealer
2 608 900 071 6.00 50 115 1 Pcs Buy now
2 608 900 072 6.00 100 165 1 Pcs Buy now
2 608 900 073 6.00 150 215 1 Pcs Buy now
2 608 900 074 6.00 200 265 1 Pcs Find a local dealer
2 608 900 075 6.00 250 315 1 Pcs Find a local dealer
2 608 900 076 6.00 400 465 1 Pcs Find a local dealer
2 608 900 077 6.50 50 115 1 Pcs Buy now
2 608 900 078 6.50 100 165 1 Pcs Buy now
2 608 900 079 6.50 150 215 1 Pcs Buy now
2 608 900 080 6.50 200 265 1 Pcs Buy now
2 608 900 081 6.50 250 315 1 Pcs Find a local dealer
2 608 900 082 6.50 400 465 1 Pcs Find a local dealer
2 608 900 083 7.00 50 115 1 Pcs Find a local dealer
2 608 900 084 7.00 100 165 1 Pcs Buy now
2 608 900 085 7.00 150 215 1 Pcs Find a local dealer
2 608 900 086 7.00 200 265 1 Pcs Find a local dealer
2 608 900 087 8.00 50 115 1 Pcs Find a local dealer
2 608 900 088 8.00 100 165 1 Pcs Buy now
2 608 900 089 8.00 150 215 1 Pcs Buy now
2 608 900 090 8.00 200 265 1 Pcs Buy now
2 608 900 091 8.00 250 315 1 Pcs Find a local dealer
2 608 900 092 8.00 300 365 1 Pcs Find a local dealer
2 608 900 093 8.00 400 465 1 Pcs Buy now
2 608 900 094 9.00 100 165 1 Pcs Buy now
2 608 900 095 9.00 150 215 1 Pcs Find a local dealer
2 608 900 096 10.00 50 115 1 Pcs Find a local dealer
2 608 900 097 10.00 100 165 1 Pcs Buy now
2 608 900 098 10.00 150 215 1 Pcs Buy now
2 608 900 099 10.00 200 265 1 Pcs Buy now
2 608 900 100 10.00 250 315 1 Pcs Buy now
2 608 900 101 10.00 300 365 1 Pcs Find a local dealer
2 608 900 102 10.00 400 465 1 Pcs Buy now
2 608 900 103 10.00 550 600 1 Pcs Find a local dealer
2 608 900 104 10.00 950 1000 1 Pcs Find a local dealer
2 608 900 105 11.00 100 165 1 Pcs Find a local dealer
2 608 900 106 11.00 150 215 1 Pcs Buy now
2 608 900 107 11.00 200 265 1 Pcs Find a local dealer
2 608 900 108 12.00 100 165 1 Pcs Buy now
2 608 900 109 12.00 150 215 1 Pcs Buy now
2 608 900 110 12.00 200 265 1 Pcs Buy now
2 608 900 111 12.00 250 315 1 Pcs Buy now
2 608 900 112 12.00 300 365 1 Pcs Find a local dealer
2 608 900 113 12.00 400 465 1 Pcs Buy now
2 608 900 114 12.00 550 600 1 Pcs Find a local dealer
2 608 900 115 12.00 950 1000 1 Pcs Find a local dealer
2 608 900 116 13.00 100 165 1 Pcs Find a local dealer
2 608 900 117 13.00 150 215 1 Pcs Buy now
2 608 900 118 13.00 200 265 1 Pcs Find a local dealer
2 608 900 119 14.00 100 165 1 Pcs Find a local dealer
2 608 900 120 14.00 150 215 1 Pcs Buy now
2 608 900 121 14.00 200 265 1 Pcs Buy now
2 608 900 122 14.00 250 315 1 Pcs Buy now
2 608 900 123 14.00 300 365 1 Pcs Find a local dealer
2 608 900 124 14.00 400 465 1 Pcs Buy now
2 608 900 125 14.00 550 600 1 Pcs Find a local dealer
2 608 900 126 14.00 950 1000 1 Pcs Find a local dealer
2 608 900 127 15.00 100 165 1 Pcs Find a local dealer
2 608 900 128 15.00 200 265 1 Pcs Buy now
2 608 900 129 15.00 400 465 1 Pcs Find a local dealer
2 608 900 130 16.00 150 215 1 Pcs Buy now
2 608 900 131 16.00 200 265 1 Pcs Buy now
2 608 900 132 16.00 250 315 1 Pcs Buy now
2 608 900 133 16.00 400 465 1 Pcs Buy now
2 608 900 134 16.00 550 600 1 Pcs Find a local dealer
2 608 900 135 16.00 950 1000 1 Pcs Find a local dealer
2 608 900 136 17.00 150 215 1 Pcs Buy now
2 608 900 137 17.00 250 315 1 Pcs Find a local dealer
2 608 900 138 18.00 200 250 1 Pcs Buy now
2 608 900 139 18.00 400 450 1 Pcs Buy now
2 608 900 140 18.00 550 600 1 Pcs Find a local dealer
2 608 900 141 18.00 950 1000 1 Pcs Find a local dealer
2 608 900 142 20.00 200 250 1 Pcs Buy now
2 608 900 143 20.00 400 450 1 Pcs Buy now
2 608 900 144 20.00 550 600 1 Pcs Find a local dealer
2 608 900 145 20.00 950 1000 1 Pcs Find a local dealer
2 608 900 146 22.00 200 250 1 Pcs Buy now
2 608 900 147 22.00 400 450 1 Pcs Buy now
2 608 900 148 22.00 550 600 1 Pcs Find a local dealer
2 608 900 149 22.00 950 1000 1 Pcs Find a local dealer
2 608 900 150 24.00 400 450 1 Pcs Buy now
2 608 900 151 25.00 400 450 1 Pcs Buy now
2 608 900 152 25.00 550 600 1 Pcs Find a local dealer
2 608 900 153 25.00 950 1000 1 Pcs Find a local dealer
2 608 900 154 28.00 400 450 1 Pcs Buy now
2 608 900 155 30.00 400 450 1 Pcs Buy now
2 608 900 156 4.00 50 115 10 Pcs Find a local dealer
2 608 900 157 5.00 50 115 10 Pcs Find a local dealer
2 608 900 158 5.00 100 165 10 Pcs Buy now
2 608 900 159 6.00 50 115 10 Pcs Buy now
2 608 900 160 6.00 100 165 10 Pcs Buy now
2 608 900 161 6.00 150 215 10 Pcs Find a local dealer
2 608 900 162 6.00 200 265 10 Pcs Find a local dealer
2 608 900 163 6.50 100 165 10 Pcs Buy now
2 608 900 164 6.50 150 215 10 Pcs Buy now
2 608 900 165 6.50 200 265 10 Pcs Find a local dealer
2 608 900 166 7.00 100 165 10 Pcs Find a local dealer
2 608 900 167 8.00 100 165 10 Pcs Buy now
2 608 900 168 8.00 150 215 10 Pcs Buy now
2 608 900 169 8.00 200 265 10 Pcs Buy now
2 608 900 170 10.00 100 165 10 Pcs Buy now
2 608 900 171 10.00 150 215 10 Pcs Buy now
2 608 900 172 10.00 200 265 10 Pcs Buy now
2 608 900 173 12.00 100 165 10 Pcs Buy now
2 608 900 174 12.00 150 215 10 Pcs Buy now
2 608 900 175 12.00 200 265 10 Pcs Buy now
2 608 900 176 14.00 200 265 10 Pcs Buy now
2 608 900 177 16.00 200 265 10 Pcs Buy now
2 608 900 178 5.00 50 115 30 Pcs Find a local dealer
2 608 900 179 5.00 100 165 30 Pcs Find a local dealer
2 608 900 180 6.00 50 115 30 Pcs Find a local dealer
2 608 900 181 6.00 100 165 30 Pcs Find a local dealer
2 608 900 182 6.00 150 215 30 Pcs Find a local dealer
2 608 900 183 8.00 100 165 30 Pcs Find a local dealer
2 608 900 184 8.00 150 215 30 Pcs Find a local dealer
2 608 900 185 8.00 200 265 30 Pcs Find a local dealer
2 608 900 186 10.00 100 165 30 Pcs Find a local dealer
2 608 900 187 10.00 150 215 30 Pcs Find a local dealer
2 608 900 188 10.00 200 265 30 Pcs Find a local dealer
2 608 900 189 12.00 150 215 30 Pcs Find a local dealer
2 608 900 190 12.00 200 265 30 Pcs Find a local dealer
2 608 900 191 6.00 100 165 50 Pcs Find a local dealer
2 608 900 192 8.00 100 165 50 Pcs Find a local dealer
2 608 900 193 10.00 100 165 50 Pcs Find a local dealer
2 608 900 194 10.00 150 215 50 Pcs Find a local dealer

out of products

Downloads

Product information brochure

Product information brochure | EXPERT SDS plus-7X Hammer Drill Bit (PDF)
