Masonry & Concrete Drill Bits
Bosch SDS plus-5X hammer drill bit for concrete.

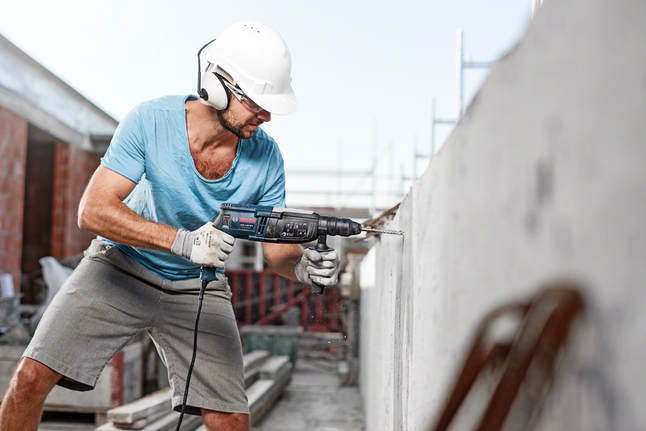

Person wearing safety equipment drills into a concrete wall on a construction site.

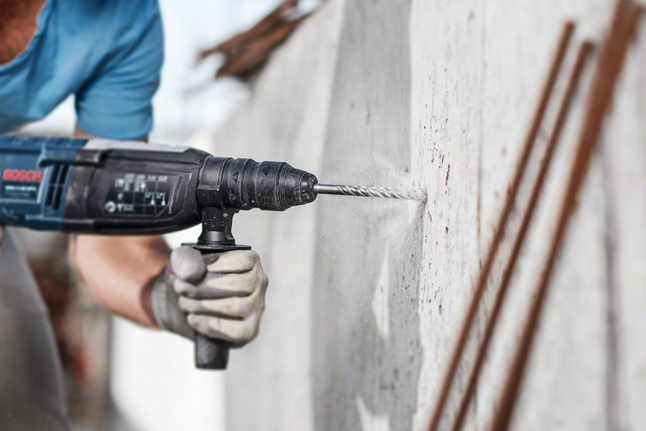

Person wearing safety equipment drills into a concrete wall.
Bosch SDS plus-5X hammer drill bit for concrete.
Person wearing safety equipment drills into a concrete wall on a construction site.
Person wearing safety equipment drills into a concrete wall.
Bulldog SDS plus Drill Bit

Bulldog SDS plus Drill Bit

For rotary hammers

Bulldog SDS plus Drill Bit offers highly efficient drilling in reinforced concrete

  • Geometrical form of the 4-cutter head prevents jamming and breakage for optimal results
  • “Turn-angle” head and 4-flute design provide fast dust removal for increased drilling speeds and reduced wear
  • Fits all SDS plus rotary hammers

Materials

Reinforced concrete
Concrete
Lime sand brick
Solid brick
Hard stone

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 17 options

Working length mm 6 options

Total length mm 8 options

Choose a pack size 1 Pcs

Available product options (45)
Bulldog SDS plus Drill Bit
For rotary hammers

Fits tools of most brands

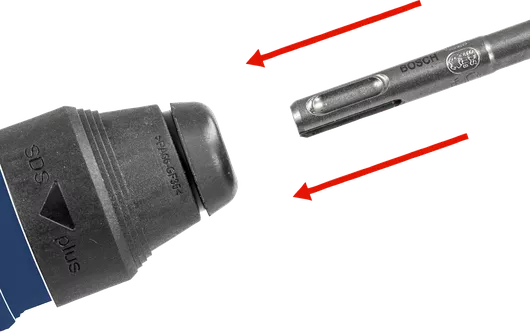

SDS-plus drill bit aligns with a rotary hammer chuck for tool attachment.

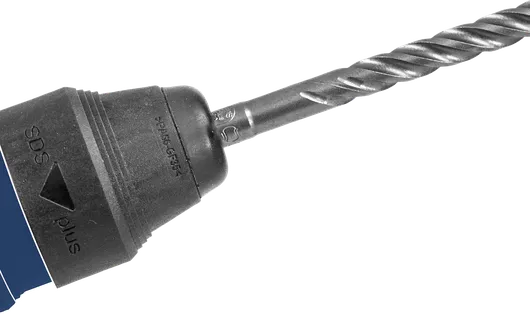

Closeup of a rotary hammer chuck holding a spiral drill bit.
Rotary hammer drill with a spiral bit attached.

Fits all SDS plus rotary hammers

Efficient Drilling in Reinforced Concrete

Bulldog SDS plus Drill Bit offers highly efficient drilling in reinforced concrete

  • “Turn-angle” head and 4-flute design provide fast dust removal for increased drilling speeds and reduced wear
  • Centring tip guides drilling from the start for efficient work and exact hole diameters
  • PGM guarantee in compliance with tight tolerances, exactly drilled holes and firm hold of fixings
View more

Product Options

Available product options: 45

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 578 179 5.00 50 110 1 Pcs Buy now
2 608 578 180 5.00 100 160 1 Pcs Buy now
2 608 578 181 5.00 150 210 1 Pcs Buy now
2 608 578 182 5.50 50 110 1 Pcs Buy now
2 608 578 183 5.50 100 160 1 Pcs Buy now
2 608 578 185 6.00 50 110 1 Pcs Buy now
2 608 578 186 6.00 100 160 1 Pcs Buy now
2 608 578 187 6.00 150 210 1 Pcs Buy now
2 608 578 188 6.00 200 260 1 Pcs Find a local dealer
2 608 578 189 6.50 50 110 1 Pcs Buy now
2 608 578 190 6.50 100 160 1 Pcs Buy now
2 608 578 191 6.50 150 210 1 Pcs Buy now
2 608 578 194 7.00 100 160 1 Pcs Buy now
2 608 578 196 8.00 50 110 1 Pcs Buy now
2 608 578 197 8.00 100 160 1 Pcs Buy now
2 608 578 198 8.00 150 210 1 Pcs Buy now
2 608 578 199 8.00 200 260 1 Pcs Buy now
2 608 578 200 8.00 400 460 1 Pcs Buy now
2 608 578 201 9.00 100 160 1 Pcs Buy now
2 608 578 204 10.00 100 160 1 Pcs Buy now
2 608 578 205 10.00 150 210 1 Pcs Buy now
2 608 578 206 10.00 200 260 1 Pcs Buy now
2 608 578 207 10.00 250 310 1 Pcs Buy now
2 608 578 208 10.00 400 460 1 Pcs Buy now
2 608 578 211 12.00 100 160 1 Pcs Buy now
2 608 578 212 12.00 150 210 1 Pcs Buy now
2 608 578 213 12.00 200 260 1 Pcs Buy now
2 608 578 214 12.00 400 460 1 Pcs Buy now
2 608 578 216 13.00 200 260 1 Pcs Buy now
2 608 578 218 14.00 150 210 1 Pcs Buy now
2 608 578 219 14.00 200 260 1 Pcs Buy now
2 608 578 220 14.00 250 310 1 Pcs Buy now
2 608 578 221 14.00 400 460 1 Pcs Buy now
2 608 578 222 15.00 100 160 1 Pcs Buy now
2 608 578 223 15.00 200 260 1 Pcs Find a local dealer
2 608 578 225 16.00 150 210 1 Pcs Buy now
2 608 578 226 16.00 200 260 1 Pcs Buy now
2 608 578 227 16.00 250 310 1 Pcs Buy now
2 608 578 228 16.00 400 460 1 Pcs Buy now
2 608 578 230 18.00 250 300 1 Pcs Buy now
2 608 578 231 18.00 400 450 1 Pcs Buy now
2 608 578 233 20.00 250 300 1 Pcs Buy now
2 608 578 234 20.00 400 450 1 Pcs Buy now
2 608 578 236 22.00 400 450 1 Pcs Buy now
2 608 578 238 24.00 400 450 1 Pcs Buy now

out of products
