MAKE IT YOUR TOOL – WITH PRO360

To make it as easy as possible for you, we bring together all tool-specific features in the PRO360 app. Handling the connectivity functions has been significantly simplified and is now even faster. You can also use many other inventory and service functions in PRO360.

Check whether your GCY-42 Bluetooth® module is inserted and the tool is switched on.

Step-by-step guide:

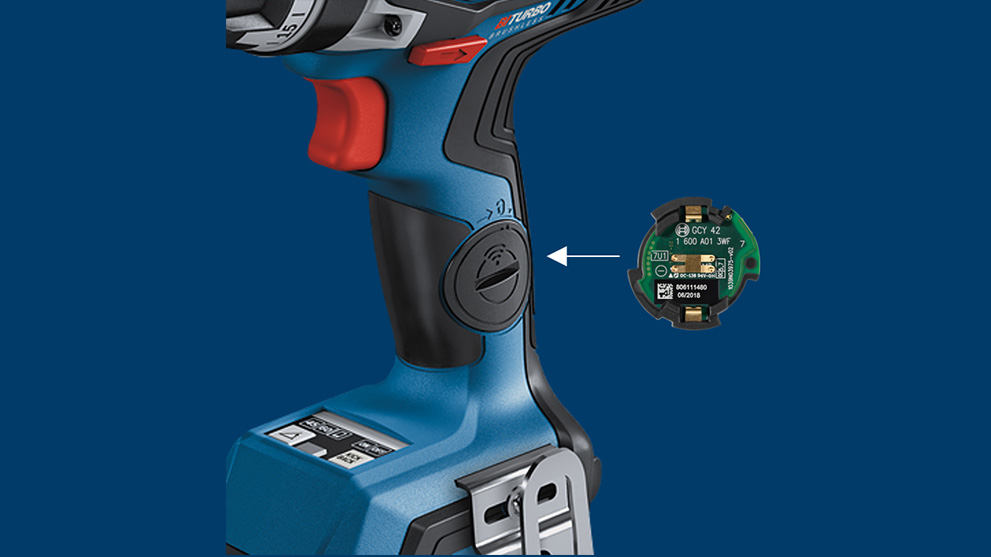

1. Remove the cover for the Bluetooth® module on the power tool, e.g. using a screwdriver or a large coin. Using unsuitable objects can damage the electronics or the cover.
2. Insert the Bluetooth® module (e.g. GCY-42; "CoMo" module) into the tool
3. Insert the coin cell battery ( 3 V 2032 lithium coin cell)

• Place the battery in the GCY 42 with the plus terminal facing upwards
• There is no need to press down on the battery as the battery does not click into place

4. Press the power tool's on/off switch the initialise the GCY 42 after inserting the battery

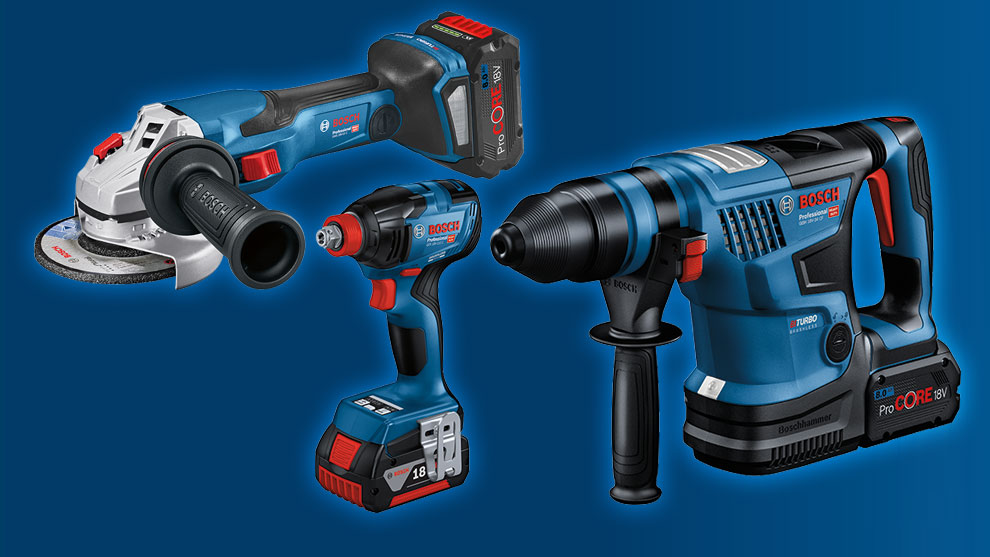

At the moment, you can only pair tools with a built-in Bluetooth® module or tools in which you can insert a Bluetooth® module.

Step-by-step guide:
1. Make sure that your Bluetooth® is switched on
2. Click on the "Connect" button to pair your tool
3. Give your permission for the app to use Bluetooth®
4. Once the right tool is found, click on the plus

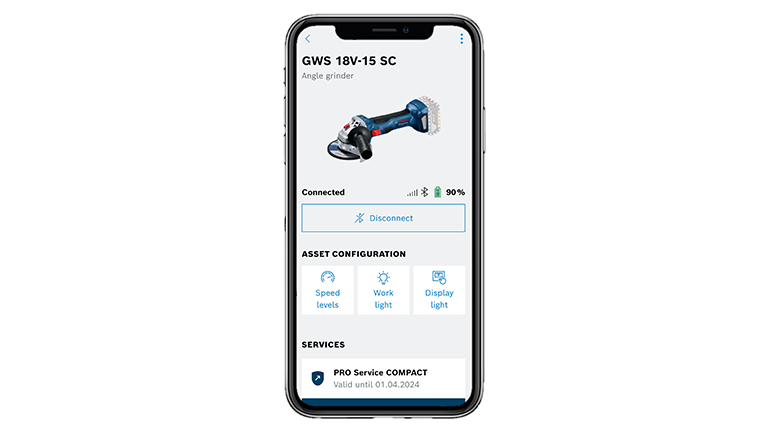

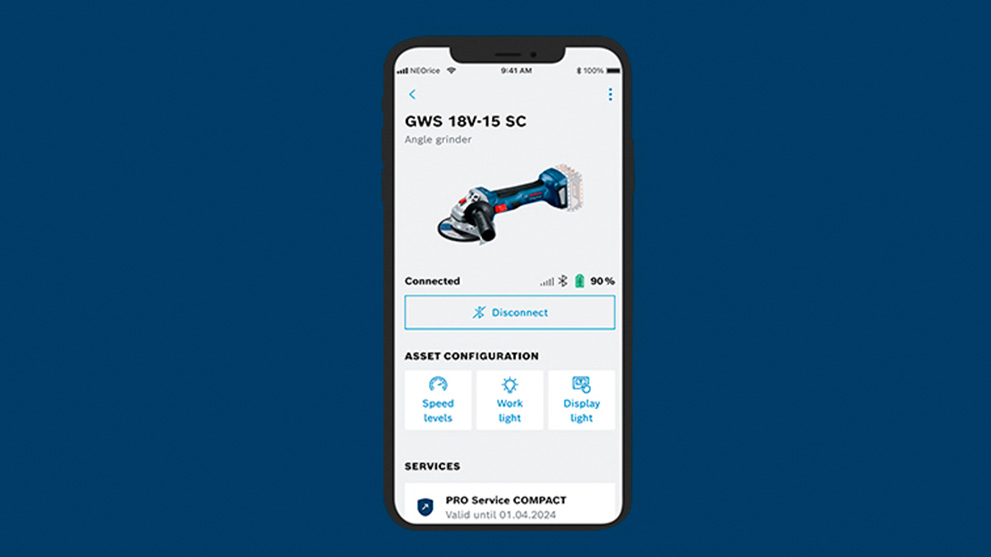

5. Click on the "Done" button to return to the detailed product page where you can see the control functions

Make sure that the tool is switched on by pressing the "On" button once. Your tool should be as close as possible to your smartphone; you should have Bluetooth® activated on your smartphone and, if you are using an Android smartphone, also activate location services.

Each tool can be registered in several PRO360 accounts and this does not influence the connectivity functions.

Step-by-step guide:
1. Click on the "Speed levels" button
2. Set the revolutions per minute for your speed level
3. Once you have set the revolutions per minute, click on the "Apply settings" button
4. For safety reasons, you need to physically confirm changes to the revolutions per minute on your tool
5. Congratulations, you've successfully adjusted the revolutions per minute

Step-by-step guide:
1. Click on the "Work light" button to configure the work light
2. Depending on the tool, you can:

• Switch the light on/off
• Adjust the afterglow brightness
• Adjust the afterglow duration in five-second increments

Step-by-step guide:
1. Click on the "User interface light" button to configure the user interface light
2. Depending on the tool, you can:

• Adjust the afterglow brightness
• Adjust the afterglow duration in five-second increments (from 0 to 95 seconds)
