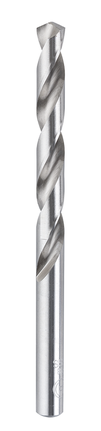

HSS Twist Drill Bit Ground

For rotary drills/drivers

Maximum Precision

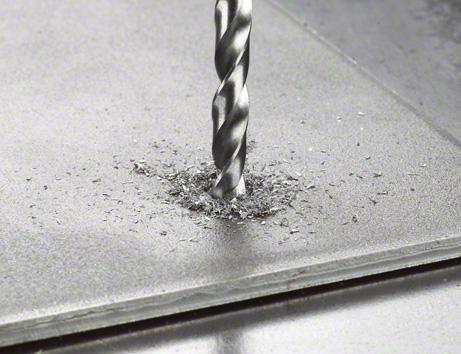

  • HSS Twist Drill Bit offers solid drilling for standard usage with metal
  • 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
  • Precision-ground bit made of HSS enables fast results
  • No need to pre-punch or pilot drill up to 10 mm-diameter
  • Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
  • Cylindrical shank compatible with three-jaw drill chucks
View more
Materials
Steel
Cast iron

Select options

Working length mm

Total length mm

Choose a pack size

Selected variant

Available product options(13)
HSS Twist Drill Bit Ground

Fits tools of most brands

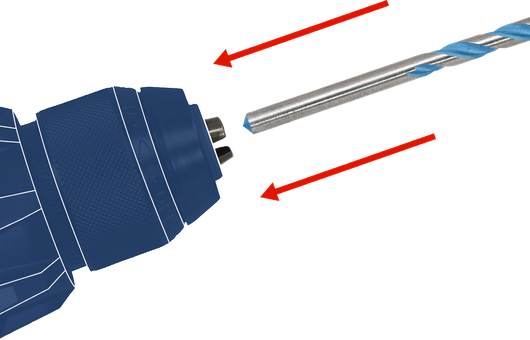

Drill bit being inserted into a power drill chuck.

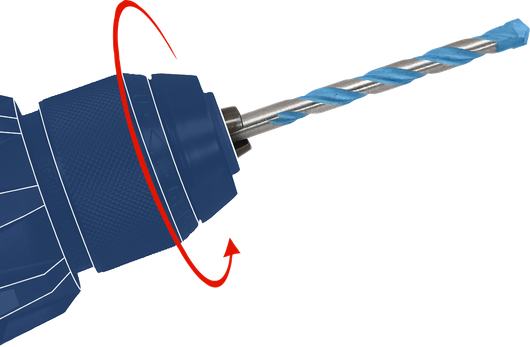

Rotating drill chuck spinning a masonry bit for drilling applications.

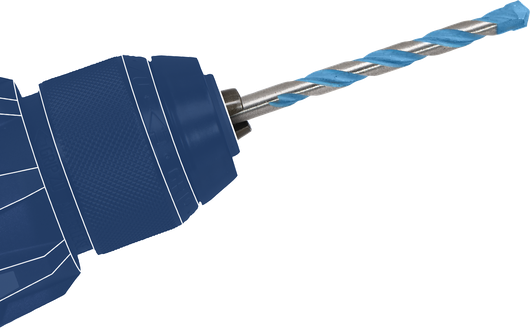

A drill chuck holds a spiral drill bit with a blue tip.

Cylindrical shank compatible with three-jaw drill chucks

Product Options

Available product options: 13

Expand Part number Working length mm Total length mm Diameter (D) Inch Pack quantity Availability

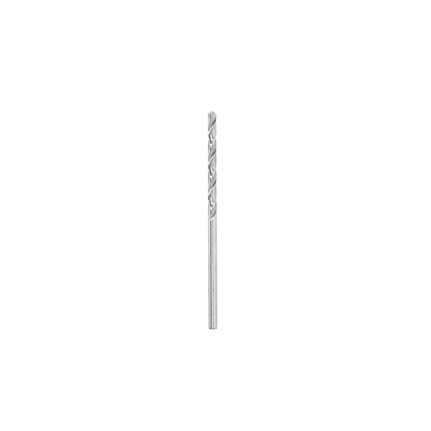

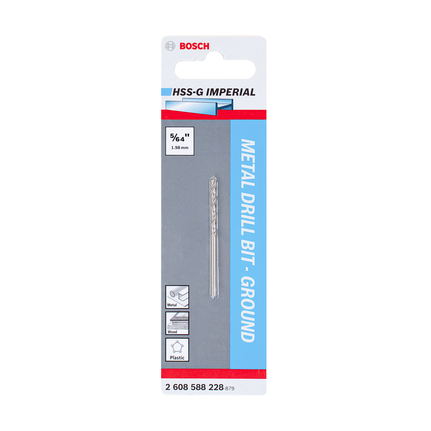

2 608 588 228 24 49 5/64 1 Pcs Find a local dealer
2 608 588 229 30 57 3/32 1 Pcs Find a local dealer

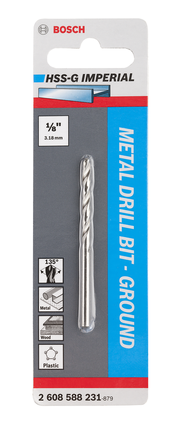

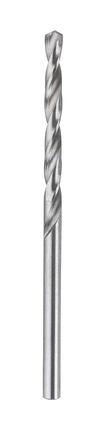

2 608 588 231 36 65 1/8 1 Pcs Find a local dealer
2 608 588 232 39 70 9/64 1 Pcs Find a local dealer
2 608 588 233 43 75 5/32 1 Pcs Find a local dealer
2 608 588 235 52 86 3/16 1 Pcs Find a local dealer
2 608 588 237 57 93 15/64 1 Pcs Find a local dealer
2 608 588 239 63 101 1/4 1 Pcs Find a local dealer
2 608 588 243 75 117 15/16 1 Pcs Find a local dealer
2 608 588 245 81 125 11/32 1 Pcs Find a local dealer

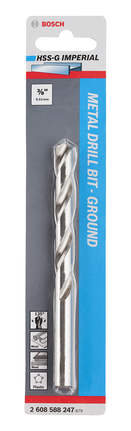

2 608 588 247 87 133 3/8 1 Pcs Find a local dealer
2 608 588 251 94 142 7/16 1 Pcs Find a local dealer
2 608 588 255 101 151 1/2 1 Pcs Find a local dealer
