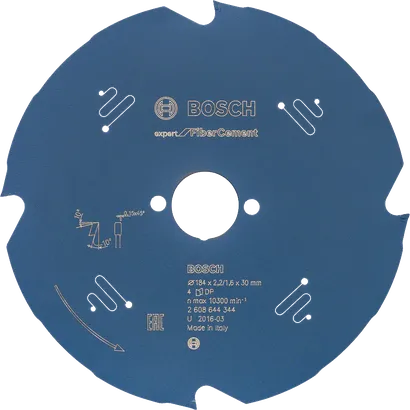

EX FC H 184x30-4
2 608 644 344
Product Options
Available product options: 1
Expand
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 644 344 | 184 | 30 | 2.2/1.6 | 4 | 1 Pcs | Find a local dealer |
out of products
EX FC H 184x30-4
Part number 2608644344
Packaging type
Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
184
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.2/1.6
Number of teeth
4
Tooth shape
TCG
Max. rotation speed (RPM)
10300
Cutting result
Coarse cut
Pin hole/Pitch circle diameter
2/7/42
Hook angle ° α
10
Relief angle ° β
10
