Symbols

Keep hands away from the cutting area while the power tool is running. Contact with the saw blade can lead to injuries.

Wear a dust mask.

Wear hearing protection. Exposure to noise can cause hearing loss.

Wear safety goggles.

Take note of the dimensions of the saw blade (saw blade diameter D, hole diameter d). The hole diameter d must match the tool spindle without play. If it is necessary to use reducers, ensure that the dimensions of the reducer are suitable for the base blade thickness and the saw blade hole diameter, as well as the tool spindle diameter. Wherever possible, use the reducers provided with the saw blade.

The saw blade diameter D must match the information specified on the symbol.

See also: "Dimensions of suitable saw blades" in the "Technical Data" section.

Note the thickness of the riving knife RK and the maximum possible workpiece height H.

See also the "Technical Data" section.

Take note of the information on the riving knife when changing the saw blade. Otherwise, there is a risk that the riving knife will hook into the workpiece.

D Diameter of the saw blade

C Minimum cutting width (tooth thickness/offset)

T Maximum base blade thickness

RK Riving knife thickness

ROTATION The cutting direction of the teeth (direction of the arrow on the saw blade) must match the direction of the arrow on the riving knife

See also the "Technical Data" section.

Left-hand side:

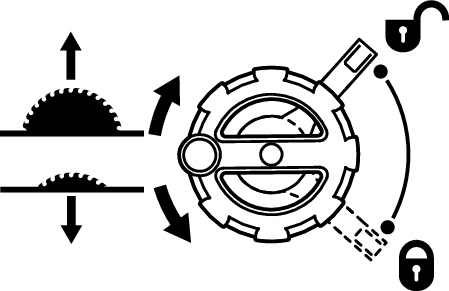

Indicates the direction of rotation of the crank for lowering (transport position) and raising (work position) the saw blade.

Right-hand side:
Indicates the position of the locking lever for securing the saw blade and setting the bevel angle (saw blade can be swivelled).

Rotational direction for securing/undoing the table insert

Do not touch the saw blade with the push stick.

Clamps can be attached to the saw table in this area.

The CE mark provides confirmation from the manufacturer that the power tool complies with the applicable EU Directives.
