Start-up

(GWX 18V-15 C / GWX 18V-15 SC)

To start the power tool, push the on/off switch (5) forward.

To lock the on/off switch (5) in position, push the on/off switch (5) forward and down until it clicks into place.

To switch off the power tool, release the on/off switch (5); or, if the switch is locked, briefly push the on/off switch (5) backward and down and then release it.

  • Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries.

(GWX 18V-15 P / GWX 18V-15 PSC)

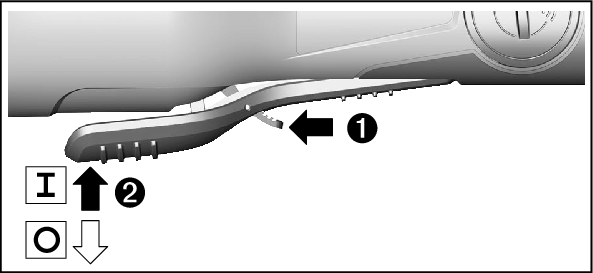

To start the power tool, push the unlocking lever (10) forwards and then push the on/off switch (5) up.

To switch off the power tool, release the on/off switch (5).

  • Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries.

Battery charge indicator (user interface) (30)

Meaning/cause

Solution

Green

Battery charged

Yellow

Battery almost empty

Replace or charge battery soon

Red

Battery empty

Replace or charge battery

Power tool status indicator (35)

Meaning/cause

Solution

Green

Status OK

Yellow

Critical temperature has been reached or rechargeable battery is almost empty

Run the power tool at no load and allow it to cool down, or replace or charge the battery soon

Illuminated red

Power tool has overheated or battery is empty

Allow the power tool to cool down, or replace or charge the battery

Flashing red

Kickback shutdown, restart protection or impact shutdown has been triggered

Switch the power tool off and on again

Flashing blue

(GWX 18V-15 C / GWX 18V-15 SC / GWX 18V-15 PSC)A):
Power tool is connected to a mobile device or settings are being transferred

A)

Bluetooth ® Low Energy Module GCY 42 not included with the product as standard

Temperature indicator (36)

Meaning/cause

Solution

Yellow

Critical temperature has been reached (motor, electronics, battery)

Run the power tool at no load and allow it to cool down

Red

Power tool is overheated and will switch off

Leave the power tool to cool down

Smartphone symbol (34)

Meaning/cause

(GWX 18V-15 C / GWX 18V-15 SC / GWX 18V-15 PSC)A):
Further information can be found under the "Power tool status" display on a mobile device if it is connected via Bluetooth® wireless technology.

A)

Bluetooth ® Low Energy Module GCY 42 not included with the product as standard

(GWX 18V-15 C / GWX 18V-15 SC / GWX 18V-15 PSC)

In conjunction with the Bluetooth® Low Energy module GCY 42 (not included with the product as standard), the following connectivity functions are available for the power tool:

  • Registration and personalisation
  • Status check, output of warning messages
  • General information and settings
  • Management

Read the corresponding operating instructions for information about the Bluetooth® Low Energy Module GCY 42 (not included with the product as standard).

The connection of the power tool with the app must be confirmed by pressing the speed preselection button (32) on the user interface (4). The app requests this when connecting.
